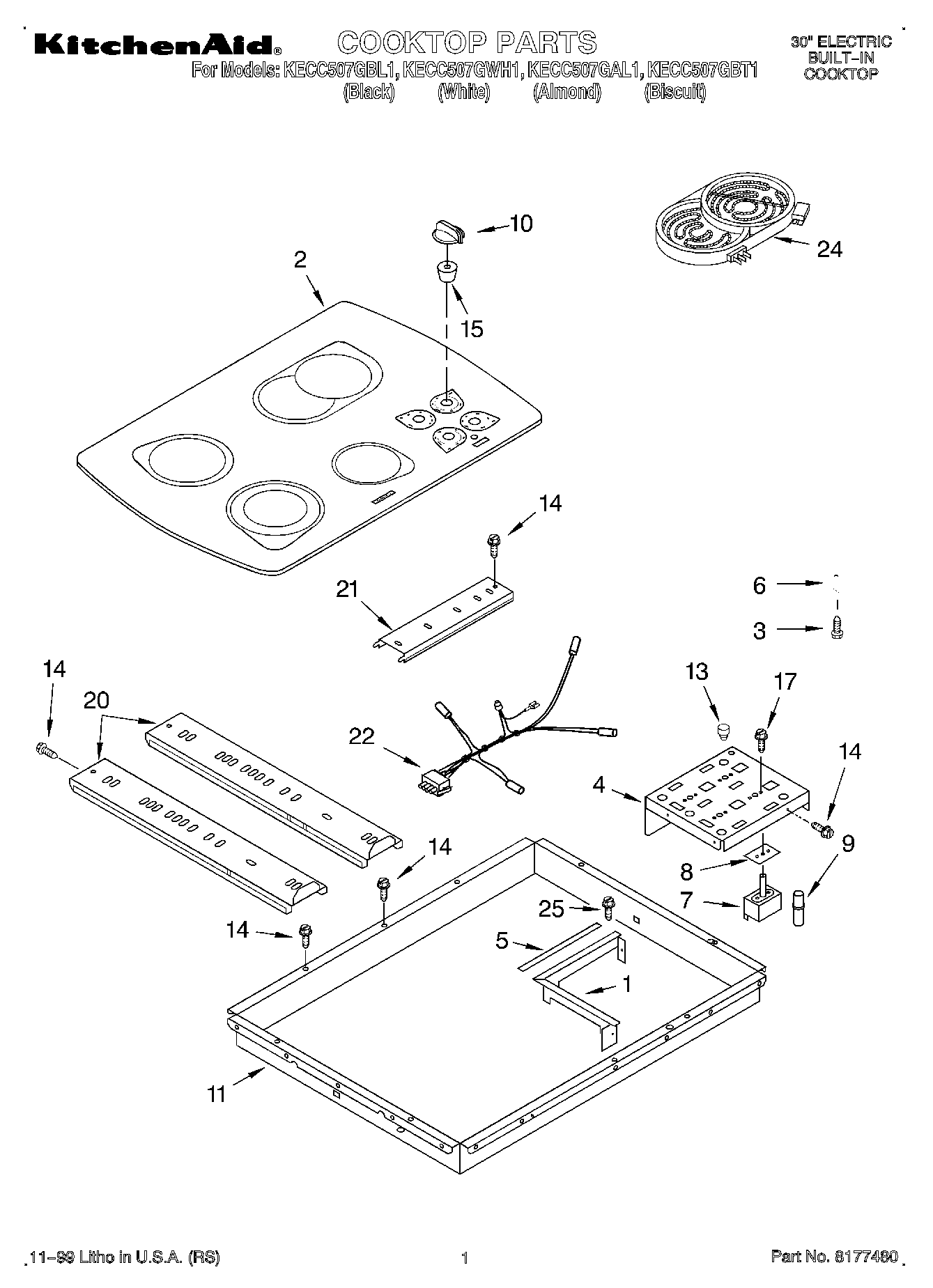

KECC507GBL1 01 – SECTION

Products

Position	Product
	Safer Cooking Tips
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 3192220
	WPL LIT3191795
	Literature Parts (Installation Instructions)
	Literature Parts (Use & Care Guide)
	Wire (14 Ga. 150 c Brown)
	WPL 4454692
	Hardware Asm.
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL 4455273
	242831 Whirlpool Oven Wire
1	Shield-Heat, Control
2	Cooktop, Glass (Honeycomb)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	WPL 3191839
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP9750372FC Whirlpool Knob
10	Knobs, Control (4) (Almond)
10	WP9750372FW Whirlpool Knob Assembly
10	WP9750372FF Whirlpool Knob
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	W10823692 Whirlpool Dual Radiant Element
24	W10491984 Whirlpool Switch Seal
24	Element, Surface (1200W – RF)
24	WPL 3192737
24	Element, Surface (1000/1800W – RR)
24	Element, Surface (1500W – LR)
25	WP3177991 Whirlpool Screw
