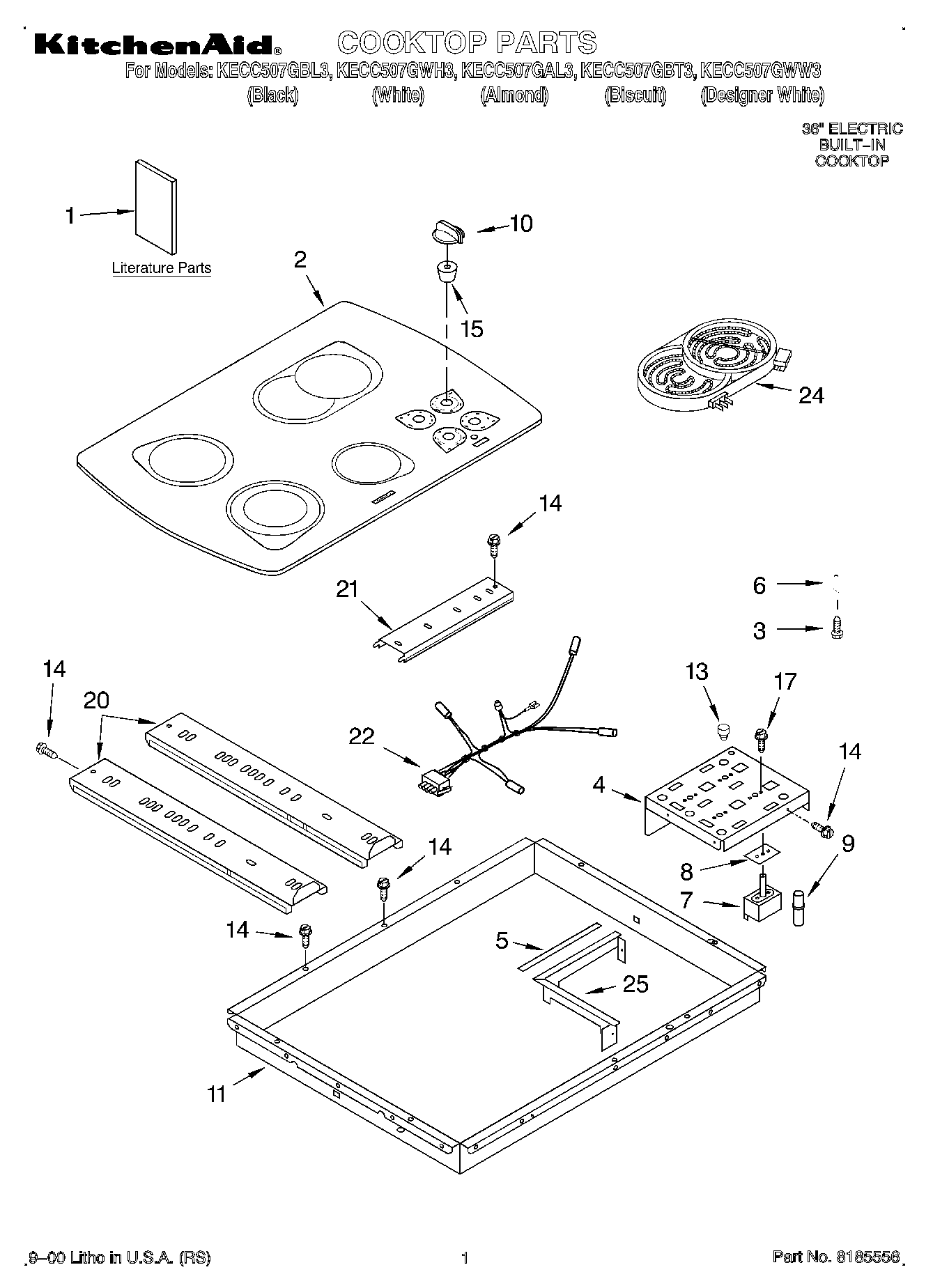

KECC507GBT3 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Almond/Biscuit)
4	Bracket, Switch Mounting
5	WPL 3191839
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
9	Light, Indicator
10	WP9750372FC Whirlpool Knob
10	Knobs, Control (4) (Almond)
10	WP9750372FW Whirlpool Knob Assembly
10	WP9750372FF Whirlpool Knob
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	WPL 3192737
24	Element, Surface (1000/1800W – RR)
24	Element, Surface (1200W – RF)
24	Element, Surface (1500W – LR)
24	W10823692 Whirlpool Dual Radiant Element
24	W10491984 Whirlpool Switch Seal
25	Wire, 25“ Roll (White 14 GA.)
25	Shield-Heat, Control
25	WPL 4455273
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	WP3400015 Whirlpool Screw
25	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
25	Wire (14 Ga. 150 c Yellow)
25	Wire (12 Ga. 150 c Black)
25	18 Ga. 80~c Rating (Red)
25	Wire (14 Ga. 200 c Brown)
25	1
25	Wire (14 Ga. 150 c Orange)
25	Wire (14 Ga. 150 c Green)
25	Hardware Asm.
25	Wire (14 Ga. 150 c Brown)
25	242831 Whirlpool Oven Wire
25	Bracket, Support (2)
25	WPL 3192220
