KECC507HSS0 01 – SECTION

Products

Position	Product
	WPL 4455273
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Safe Cooking Tips
	Hardware Asm.
	Literature Parts (Installation Instructions)
	4455364 Whirlpool Oven Support Bracket
	WPL LIT3192800
	WPL 3192220
	WPL LIT3191795
	Wire (14 Ga. 150 c Yellow)
	WP3400015 Whirlpool Screw
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	Wire (14 Ga. 150 c Orange)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)

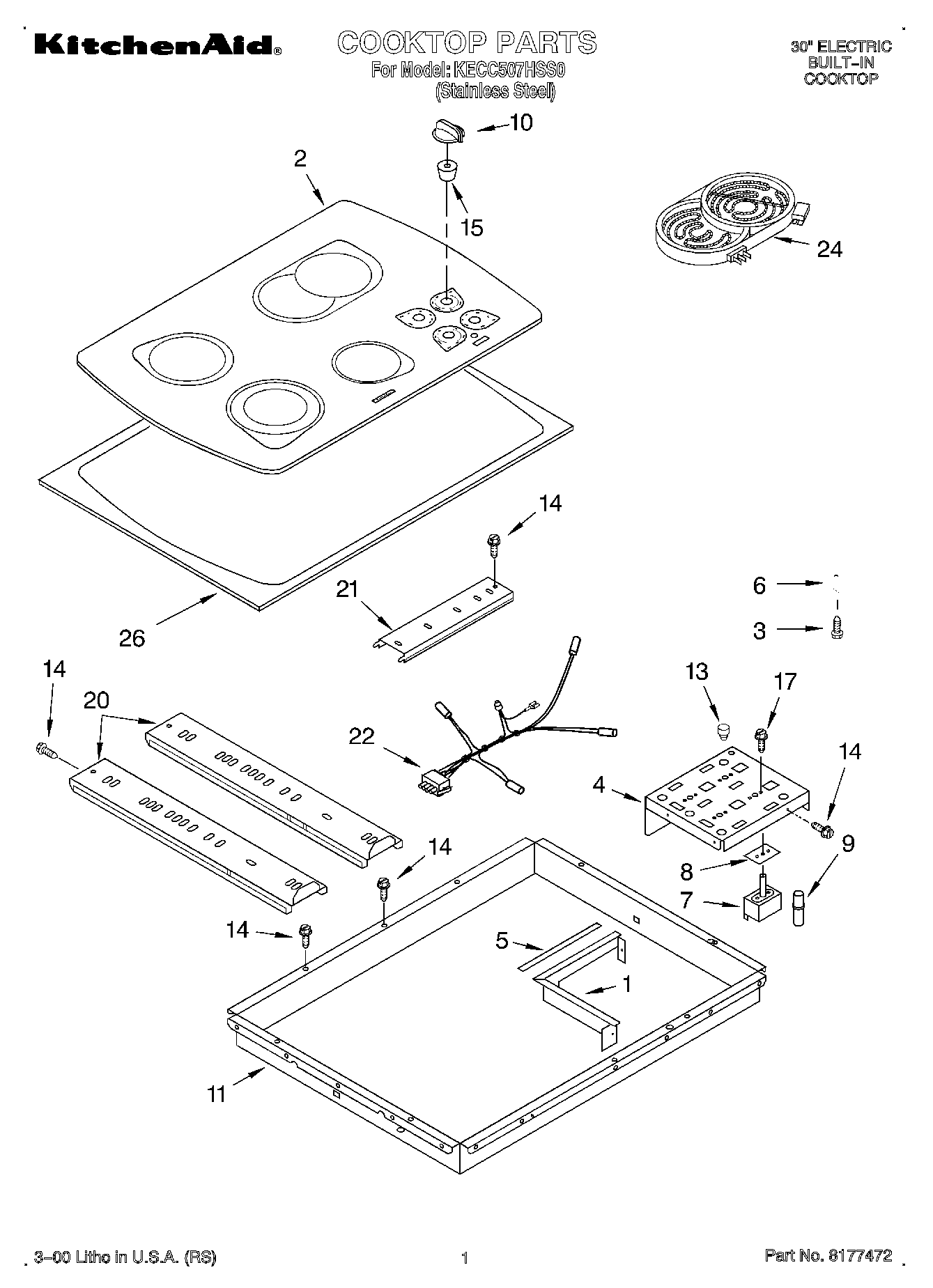

1	Shield-Heat, Control
2	Cooktop, Glass
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	WPL 3191839
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	3193012 Whirlpool Oven Indicator Light
10	WP9750372FF Whirlpool Knob
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	Element, Surface (1200W – RF)
24	WPL 3192737
24	Element, Surface (1000/1800W – RR)
24	W10823692 Whirlpool Dual Radiant Element
24	Element, Surface (1500W – LR)
24	W10491984 Whirlpool Switch Seal
26	Frame, Cooktop (S.Steel model only)
