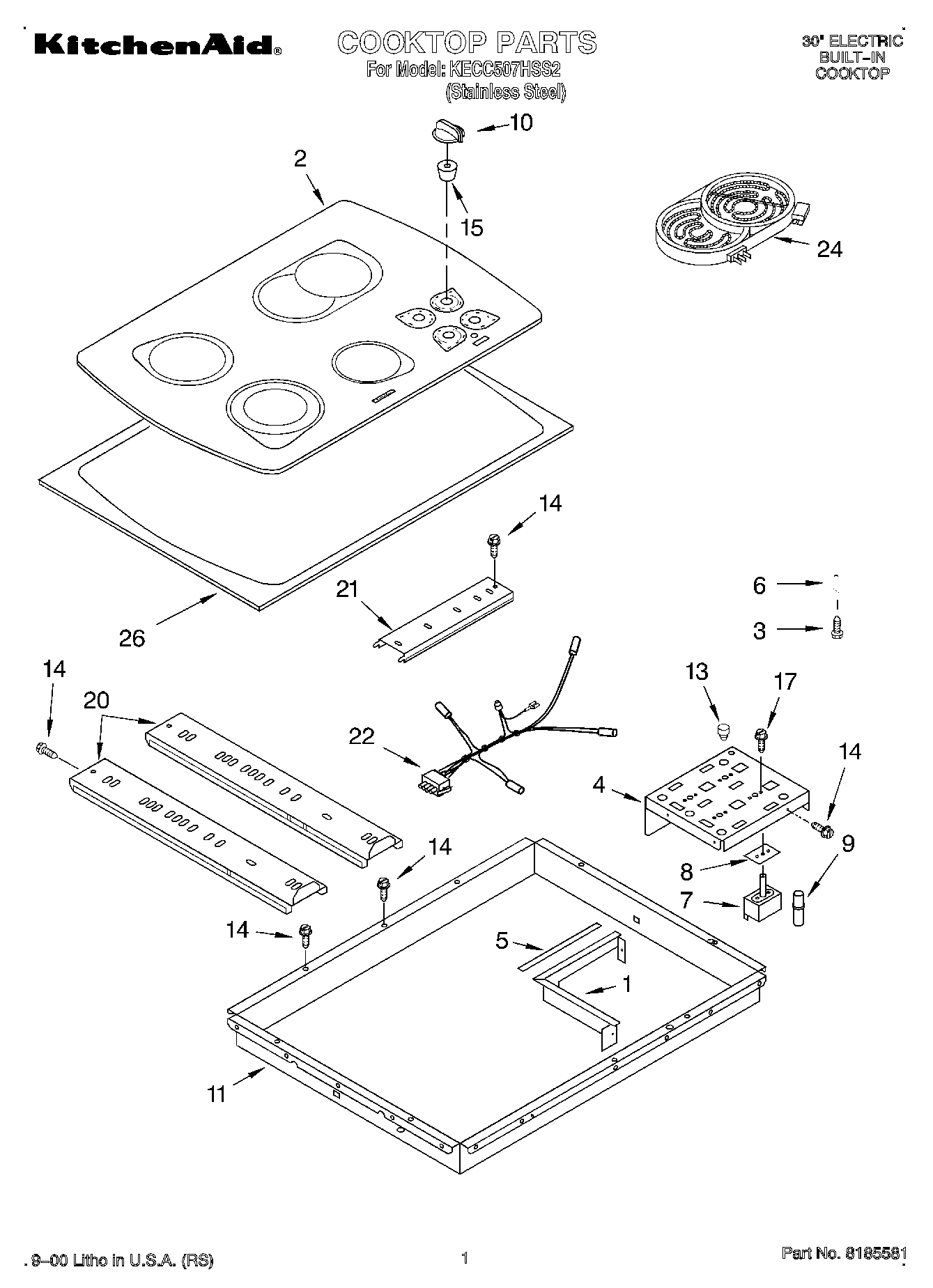

KECC507HSS2 01 – SECTION

Products

PositionProduct
Safer Cooking Tips
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Hardware Asm.
WPL 3191239
4455364 Whirlpool Oven Support Bracket
Literature Parts (Use & Care Guide)
Literature Parts (Installation Instructions)
Wire (14 Ga. 150 c Orange)
WPL 3192220
Wire (14 Ga. 150 c Brown)
WP3400015 Whirlpool Screw
WPL 4455273
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Wire (14 Ga. 150 c Green)
WPL LIT3191795
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
242831 Whirlpool Oven Wire
Bracket, Support (2)
1Shield-Heat, Control
2Cooktop, Glass
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5WPL 3191839
6Spring, Locator
7WP3191049 Infinite Switch Left Rear Right Front
78203534 Whirlpool Oven Top Burner Infinite Switch
83183956 Whirlpool Oven Seal Switch
93193012 Whirlpool Oven Indicator Light
10WP9750372FF Whirlpool Knob
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24Element, Surface (1200W – RF)
24W10491984 Whirlpool Switch Seal
24W10823692 Whirlpool Dual Radiant Element
24Element, Surface (1000/1800W – RR)
24Element, Surface (1500W – LR)
24WPL 3192737
26Frame, Cooktop (S.Steel model only)
