KECC507KBT1 01 – SECTION

KECC507KBT1 01 – SECTION

Written by

in

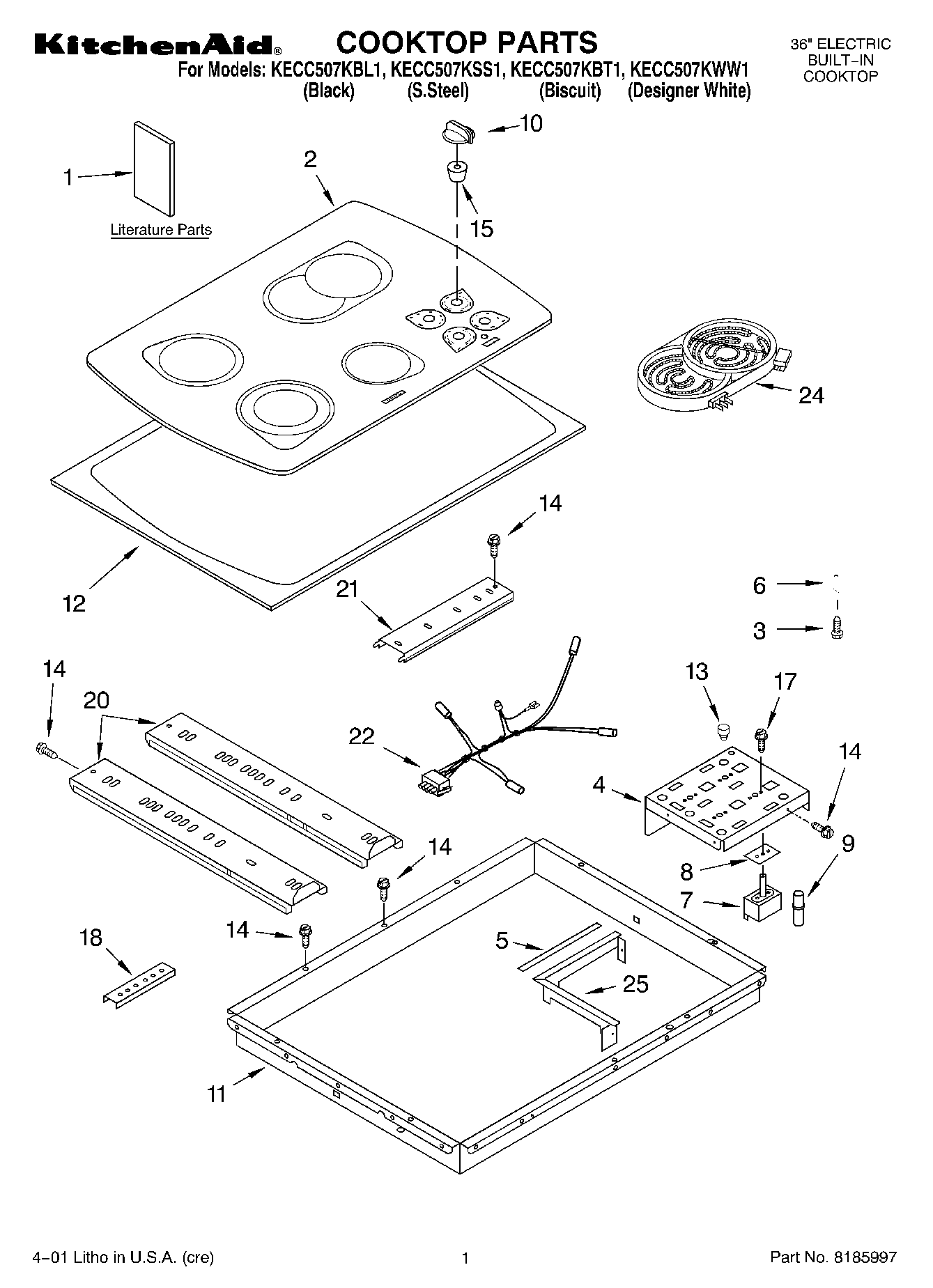

KECC507KBT1 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Energuide Label)
2Cooktop, Glass (White)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (S.Steel)
2Cooktop, Glass (Black)
4Bracket, Switch Mounting
5WPL 3191839
6Spring, Locator
6WP486754 Whirlpool Compactor Screw
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
12Frame, Cooktop (S.Steel model only)
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
18Nut, Tinnerman (2)
18WP3400093 Whirlpool Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24Element, Surface (1200W – RF)
24WPL 3192737
24W10491984 Whirlpool Switch Seal
24Element, Surface (1000/1800W – RR)
24W10823699 Whirlpool Right Front Surface Element
24W10823692 Whirlpool Dual Radiant Element
25Wire, 25“ Roll (White 14 GA.)
25Wire (14 Ga. 150 c Brown)
25Wire, 25` Roll (Red 14 Ga.)
25WPL 4456064
25WP3400015 Whirlpool Screw
25242831 Whirlpool Oven Wire
25W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
25Wire, 25` Roll (Black 14 Ga.)
25Bracket, Support (2)
25Wire (14 Ga. 150 c Green)
25Hardware Asm.
25Wire (14 Ga. 200 c Brown)
251
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25Shield-Heat, Control
25Wire (14 Ga. 150 c Yellow)
25WPL 4456028
25Wire (14 Ga. 150 c Orange)
25WPL 4456016
