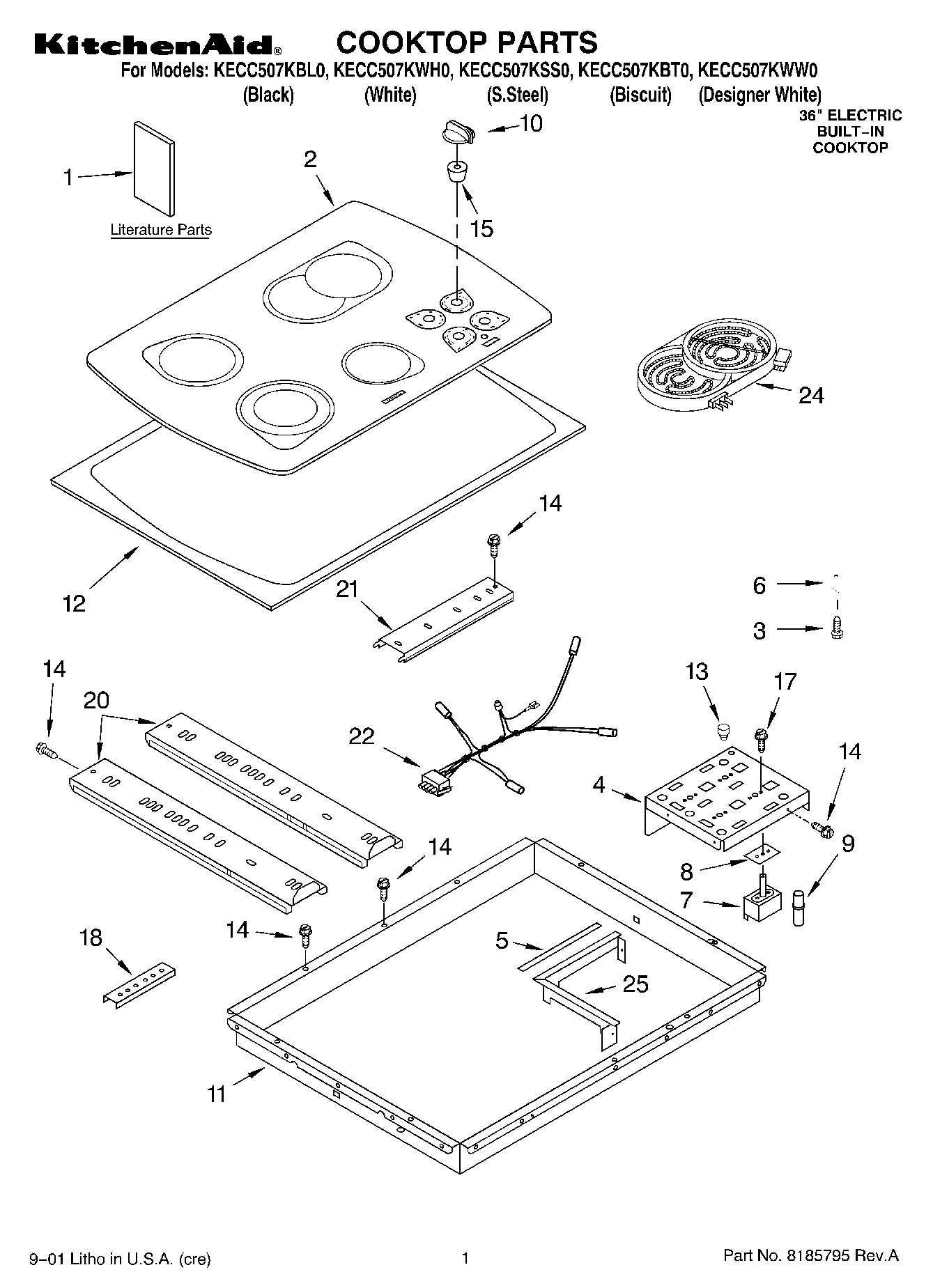

KECC507KWH0 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
2Cooktop, Glass (S.Steel)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (White)
4Bracket, Switch Mounting
5WPL 3191839
6WP486754 Whirlpool Compactor Screw
6Spring, Locator
78203534 Whirlpool Oven Top Burner Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
11Box, Burner
12Frame, Cooktop (S.Steel model only)
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
18Screw
18Nut, Tinnerman (2)
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24Element, Surface (1200W – RF)
24W10823692 Whirlpool Dual Radiant Element
24W10491984 Whirlpool Switch Seal
24Element, Surface (1000/1800W – RR)
24WPL 3192737
25WP3400015 Whirlpool Screw
25WPL 4455273
25Wire, 25` Roll (Black 14 Ga.)
25Shield-Heat, Control
25Wire, 25“ Roll (White 14 GA.)
25W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
251
25Wire (12 Ga. 150 c Black)
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25Bracket, Support (2)
25Hardware Asm.
25Wire (14 Ga. 150 c Brown)
25Wire, 25` Roll (Red 14 Ga.)
25242831 Whirlpool Oven Wire
25Wire (14 Ga. 200 c Brown)
2518 Ga. 80~c Rating (Red)
25WPL 3192220
