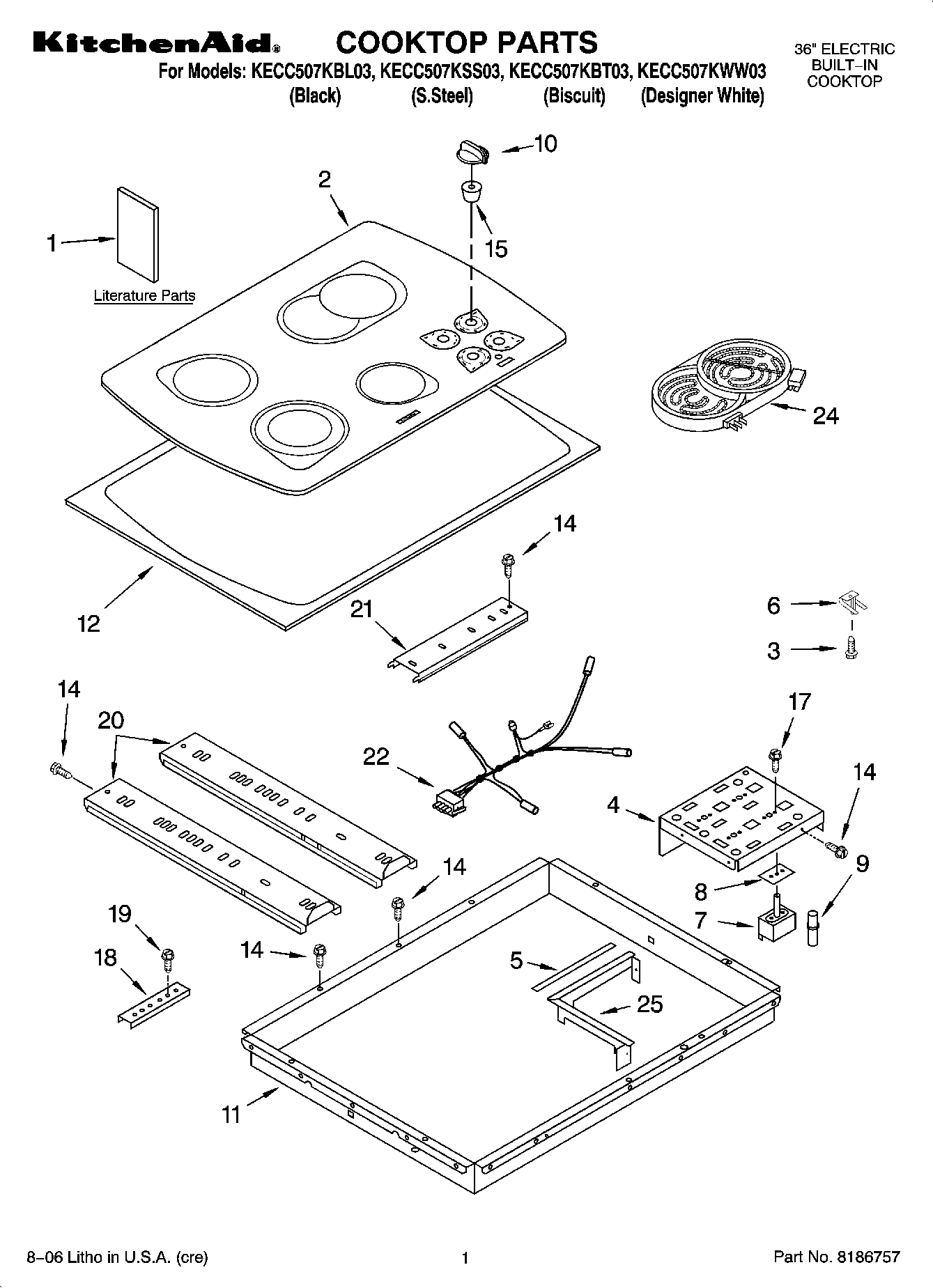

KECC507KWW03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Bracket, Support (2)
	Hardware Asm.
	WPL 4456761
	WPL ARI83917A7
	WPL 4456512
	WPL 4456028
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL ARI83915A5
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI83916A4
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	242831 Whirlpool Oven Wire
1	Safe Cooking Tips (French)
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions
1	COOKTOP PARTS
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (S.Steel)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	WPL 3191839
6	9759094 Whirlpool Spring
7	WP4456027 Whirlpool Infinite Switch Right Rear
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP9750372FC Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
10	WP9750372FF Whirlpool Knob
11	Box, Burner
12	Frame, Cooktop (S.Steel model only)
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	W10491984 Whirlpool Switch Seal
24	W10823699 Whirlpool Right Front Surface Element
24	Element, Surface (1200W – RF)
24	W10823692 Whirlpool Dual Radiant Element
24	W10823730 Whirlpool Surface Element
24	WPL 3192737
25	Shield-Heat, Control
