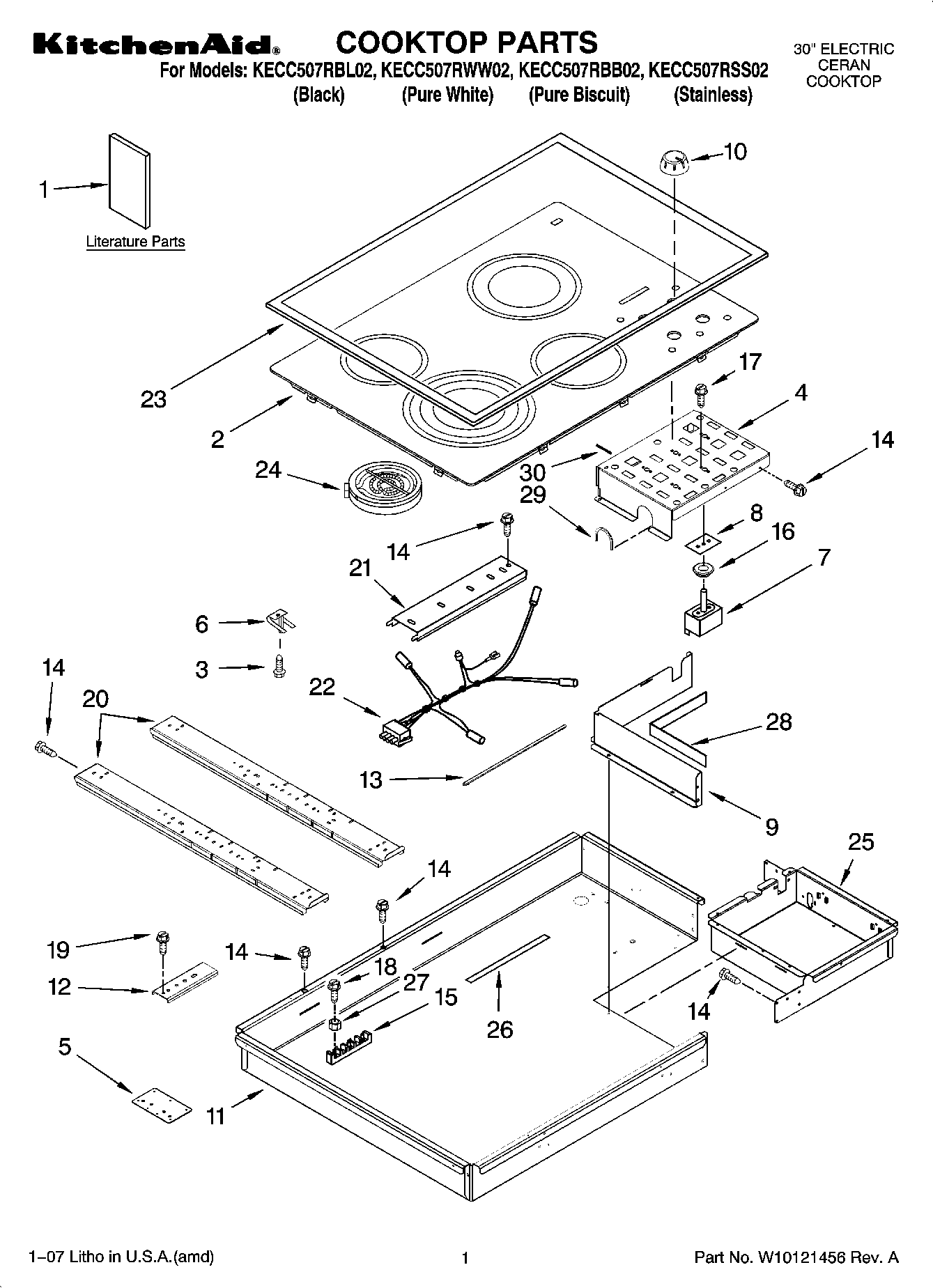

KECC507RBB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL 4456028
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Harness, Main
	Bracket, Support (2)
	Clip, Harnes
	Hardware Asm.
	Harness, Conduit
	Thermostat
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	WPL ARI83929A8
	Wire (14 Ga. 150 c Yellow)
	WPL ARI83934A1
	WPL ARI83933A1
	WP3400015 Whirlpool Screw
	WPL ARI83932A6
	WPL ARI83931A6
	Wire, 25` Roll (Black 14 Ga.)
	WP8286642 Whirlpool Tape
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL ARI83930A3
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
1	LITERATURE PARTS
1	Installation Instructions (Undercounter Oven)
1	Use & Care Guide
1	Safe Cooking Tips
1	INSTALLATION INSTRUCTIONS
1	Wiring Diagram
1	Safe Cooking Tips (French)
2	W10322778 Whirlpool Cooktop
2	Cooktop, Glass (Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	Bracket, Bottom
6	9759094 Whirlpool Spring
7	Switch, Infinite (Dual)
7	Switch, Infinite (Single (2))
7	Switch, Infinite (Triple)
8	3183956 Whirlpool Oven Seal Switch
9	Wall, Inside
10	8286096WH Whirlpool Knob
10	WP8286096BL Whirlpool Knob
10	Knob, Control (4) (Cashmere Metal)
11	Box, Burner
12	8186533 Whirlpool Hardware
13	Seal, Heat
14	WP3196557 Whirlpool Screw
15	WP8203546 Whirlpool Terminal Block
16	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	WP3196163 Whirlpool Screw
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
23	Frame, Cooktop (S.Steel Mdl Only)
24	WP8286187 Whirlpool Dishwasher Left Front Surface Element
24	ELEMENT, SURFACE 2000/1000W RR
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
24	W10823699 Whirlpool Right Front Surface Element
25	Box, Control
26	Seal, Foam
27	WP112432 Whirlpool Nut Assembly
28	Inside Wall, Insulation
29	GROMMET, FLEXIBLE
30	W10491984 Whirlpool Switch Seal
