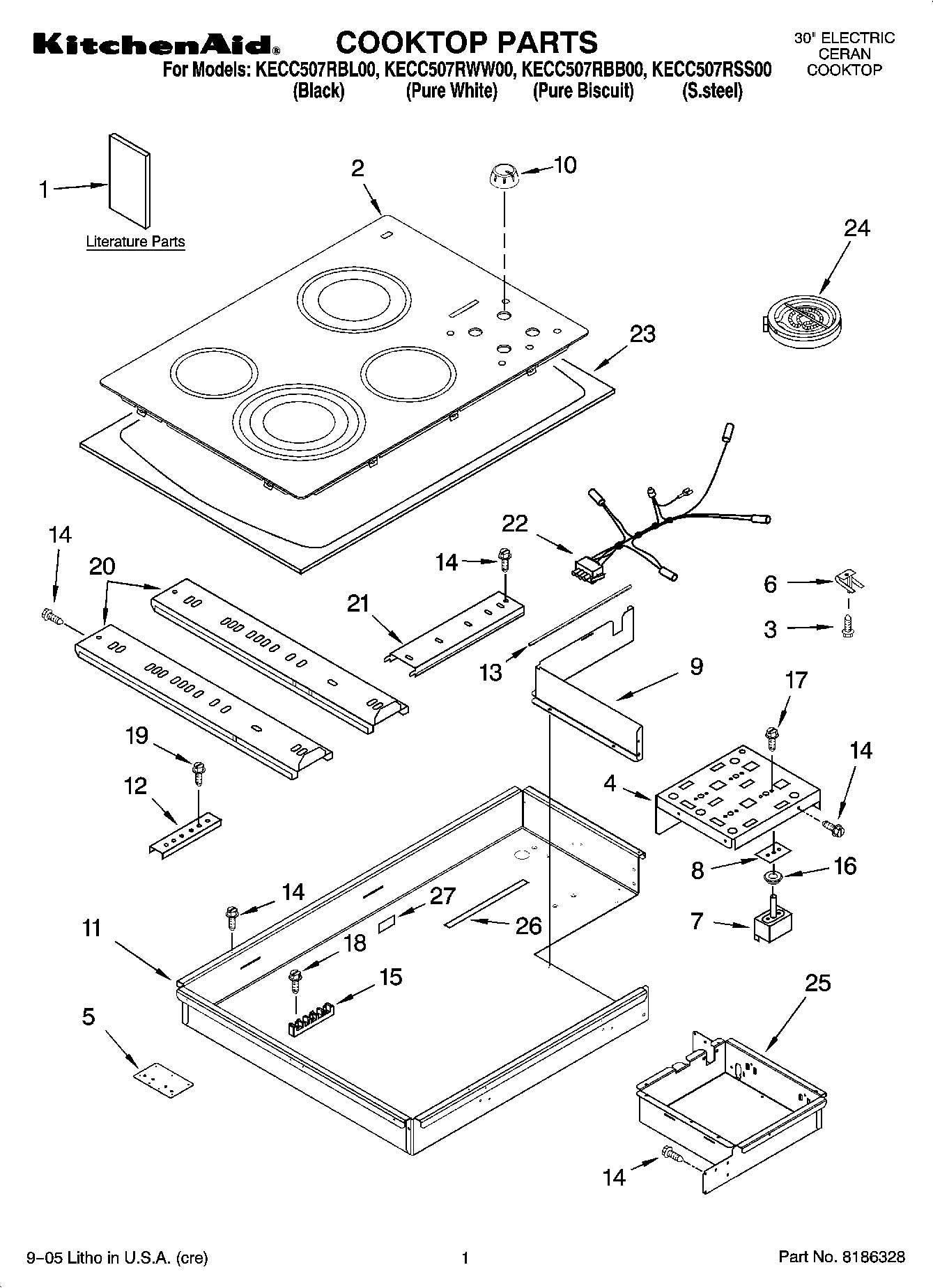

KECC507RBL00 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC507RBL00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC507RBL00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Harness, Main
Harness, Conduit
Clip, Harnes
Thermostat
Bracket, Support (2)
Hardware Asm.
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL ARI83939A9
WPL ARI83938A5
WP3400015 Whirlpool Screw
WPL ARI83937A6
WPL ARI83936A7
Wire, 25` Roll (Black 14 Ga.)
WPL 4456028
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI83935A9
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Energy Guide Lbl
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Cooktop, Glass (Biscuit)
2W10322778 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5Bracket, Bottom
69759094 Whirlpool Spring
7Switch, Infinite (Dual)
7Switch, Infinite (Triple)
7Switch, Infinite (Single (2))
83183956 Whirlpool Oven Seal Switch
9Wall, Inside
108286096WH Whirlpool Knob
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
13Seal, Heat
14WP3196557 Whirlpool Screw
15WP8203546 Whirlpool Terminal Block
168285469 Whirlpool Oven Seal Switch
16Seal, Switch (White)
17WP486579 Whirlpool Air Conditioner Screw
18WP3196163 Whirlpool Screw
19WP3400093 Whirlpool Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Frame, Cooktop (S.Steel Mdl Only)
24ELEMENT, SURFACE 2000/1000W RR
24W10823699 Whirlpool Right Front Surface Element
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
25Box, Control
26Seal, Foam
27WP112432 Whirlpool Nut Assembly
