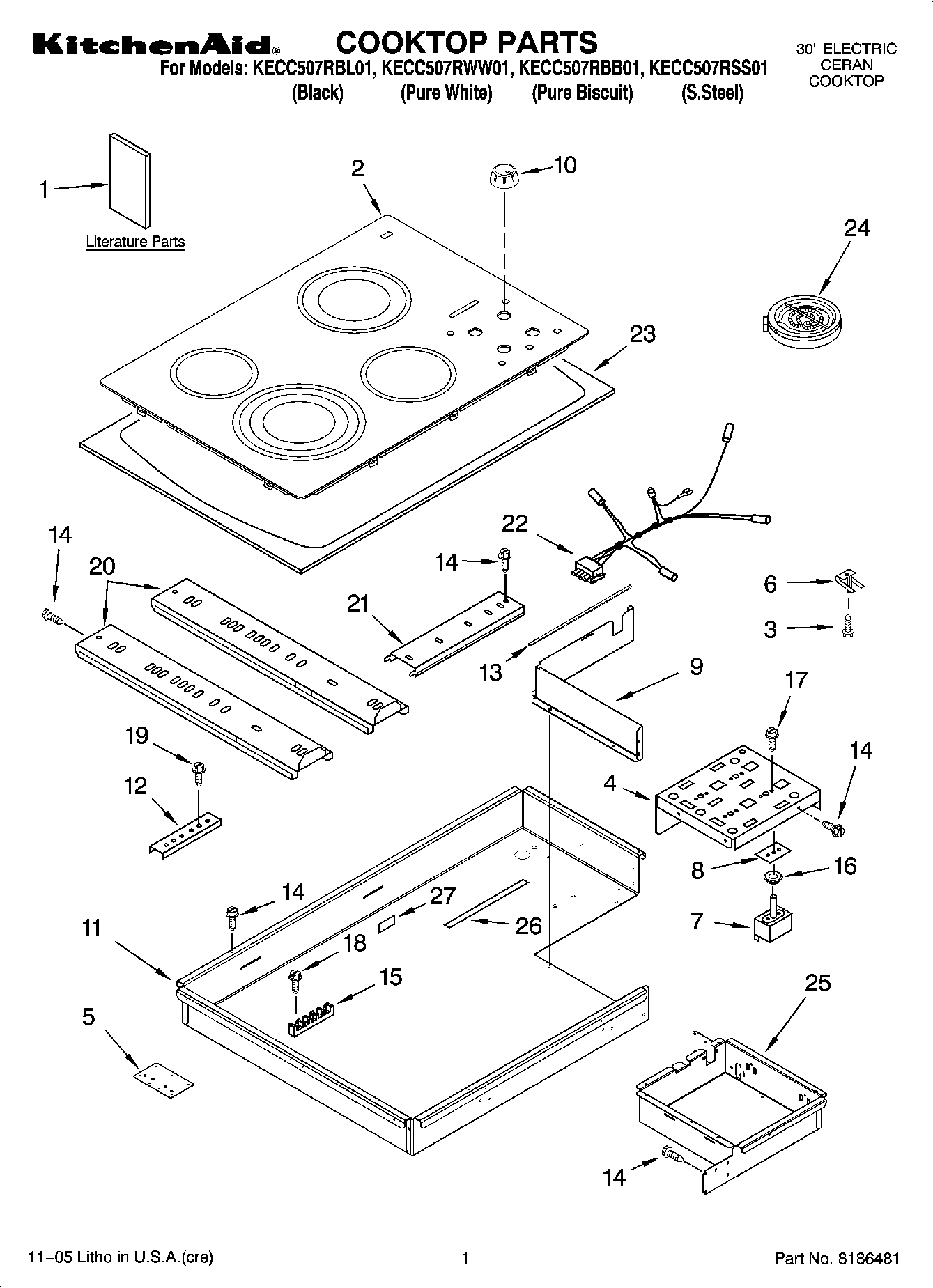

KECC507RSS01 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC507RSS01 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC507RSS01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Harness, Conduit
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Thermostat
WPL ARI83970A1
Hardware Asm.
WPL 4456028
Bracket, Support (2)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL ARI83969A3
WPL ARI83968A7
WP3400015 Whirlpool Screw
WPL ARI83967A3
WPL ARI83966A2
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
W10491984 Whirlpool Switch Seal
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Clip, Harnes
Harness, Main
Wire, 25“ Roll (White 14 GA.)
1Wiring Diagram
1Energy Guide Lbl
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips (French)
1Use & Care Guide
1Safe Cooking Tips
2W10322778 Whirlpool Cooktop
2Cooktop, Glass (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5Bracket, Bottom
69759094 Whirlpool Spring
7Switch, Infinite (Single (2))
7Switch, Infinite (Dual)
7Switch, Infinite (Triple)
83183956 Whirlpool Oven Seal Switch
9Wall, Inside
108286096WH Whirlpool Knob
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
13Seal, Heat
14WP3196557 Whirlpool Screw
15WP8203546 Whirlpool Terminal Block
168285469 Whirlpool Oven Seal Switch
16Seal, Switch (White)
17WP486579 Whirlpool Air Conditioner Screw
18WP3196163 Whirlpool Screw
19WP3400093 Whirlpool Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Frame, Cooktop (S.Steel Mdl Only)
24ELEMENT, SURFACE 2000/1000W RR
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823699 Whirlpool Right Front Surface Element
25Box, Control
26Seal, Foam
27WP112432 Whirlpool Nut Assembly
