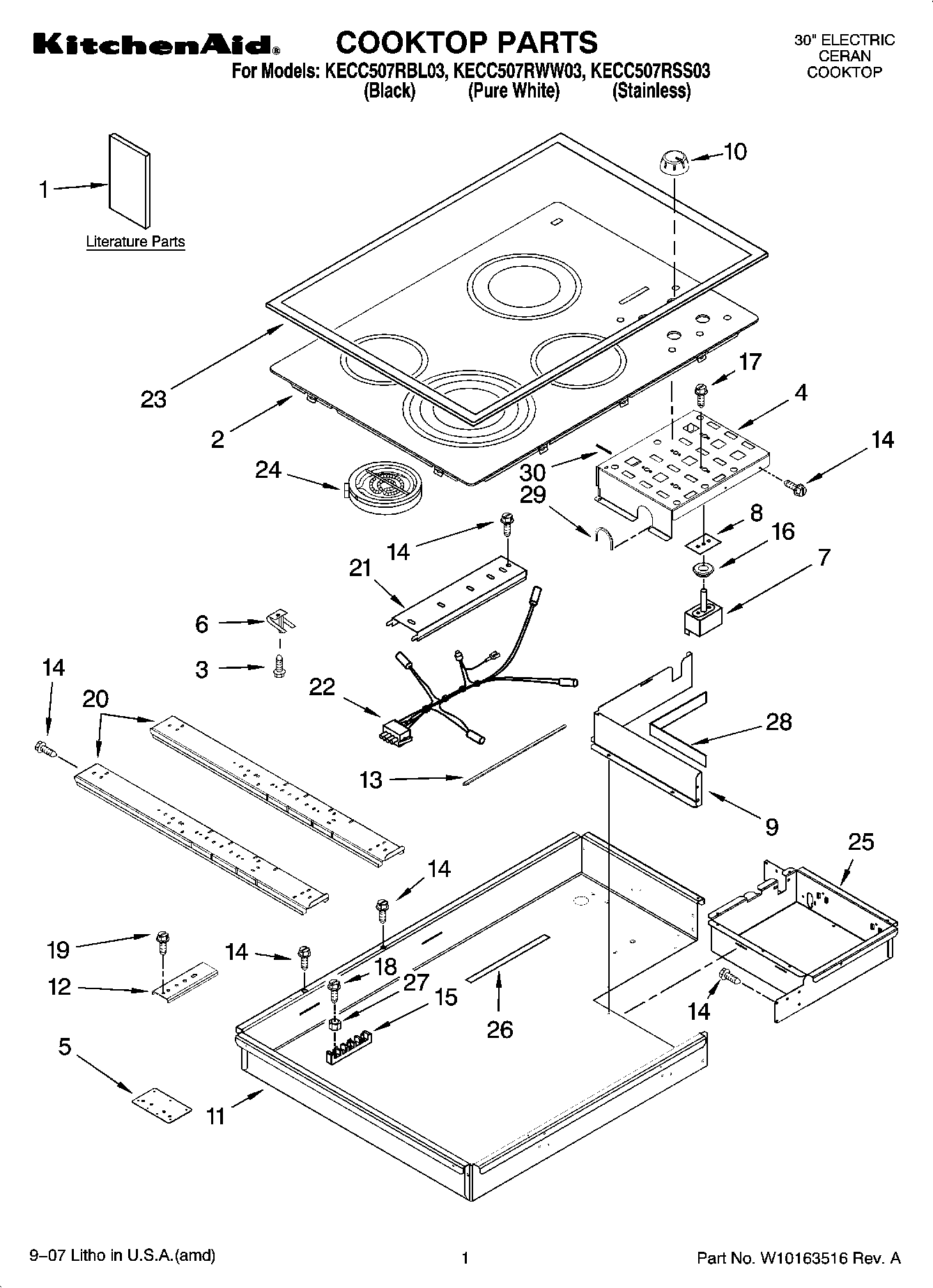

KECC507RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC507RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC507RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Harness, Main
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Harness, Conduit
Thermostat
WPL ARI83983A5
Clip, Harnes
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL 4456028
WPL ARI83982A1
WPL ARI83981A8
WP3400015 Whirlpool Screw
WPL ARI83980A6
WPL ARI83979A9
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WP8286642 Whirlpool Tape
WPL ARI83978A1
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Installation Instructions (Undercounter Oven)
1Safe Cooking Tips (French)
1Safe Cooking Tips
2W10322778 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5Bracket, Bottom
69759094 Whirlpool Spring
7Switch, Infinite (Single (2))
7Switch, Infinite (Dual)
7Switch, Infinite (Triple)
83183956 Whirlpool Oven Seal Switch
9Wall, Inside
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
108286096WH Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
13Seal, Heat
14WP3196557 Whirlpool Screw
15WP8203546 Whirlpool Terminal Block
168285469 Whirlpool Oven Seal Switch
16Seal, Switch (White)
17WP486579 Whirlpool Air Conditioner Screw
18WP3196163 Whirlpool Screw
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Frame, Cooktop
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
24W10823699 Whirlpool Right Front Surface Element
24ELEMENT, SURFACE 2000/1000W RR
24W10823711 Whirlpool Surface Element Left Front and Right Rear
25Box, Control
26Seal, Foam
27WP112432 Whirlpool Nut Assembly
28Inside Wall, Insulation
29GROMMET, FLEXIBLE
30W10491984 Whirlpool Switch Seal
