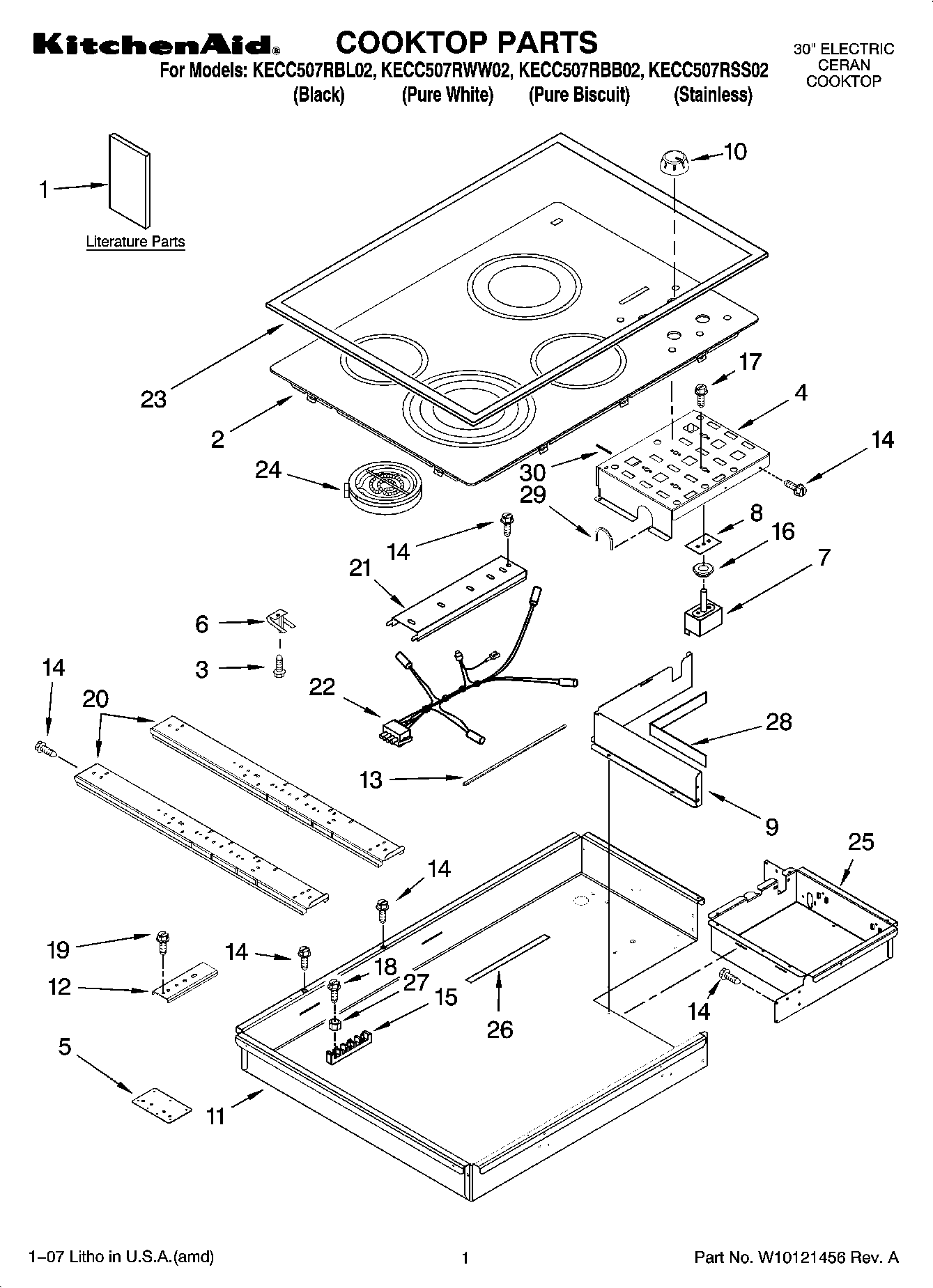

KECC507RWW02 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC507RWW02 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC507RWW02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL 4456028
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Harness, Main
	Bracket, Support (2)
	Clip, Harnes
	Hardware Asm.
	Harness, Conduit
	Thermostat
	WPL ARI84008A3
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Yellow)
	WPL ARI84007A3
	WPL ARI84006A7
	WP3400015 Whirlpool Screw
	WPL ARI84005A4
	WPL ARI84004A8
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	WP8286642 Whirlpool Tape
	WPL ARI84003A9
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire, 25“ Roll (White 14 GA.)
1	Installation Instructions (Undercounter Oven)
1	Use & Care Guide
1	LITERATURE PARTS
1	Safe Cooking Tips (French)
1	INSTALLATION INSTRUCTIONS
1	Safe Cooking Tips
1	Wiring Diagram
2	W10322778 Whirlpool Cooktop
2	Cooktop, Glass (Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	Bracket, Bottom
6	9759094 Whirlpool Spring
7	Switch, Infinite (Single (2))
7	Switch, Infinite (Dual)
7	Switch, Infinite (Triple)
8	3183956 Whirlpool Oven Seal Switch
9	Wall, Inside
10	8286096WH Whirlpool Knob
10	WP8286096BL Whirlpool Knob
10	Knob, Control (4) (Cashmere Metal)
11	Box, Burner
12	8186533 Whirlpool Hardware
13	Seal, Heat
14	WP3196557 Whirlpool Screw
15	WP8203546 Whirlpool Terminal Block
16	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	WP3196163 Whirlpool Screw
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
23	Frame, Cooktop (S.Steel Mdl Only)
24	W10823699 Whirlpool Right Front Surface Element
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
24	ELEMENT, SURFACE 2000/1000W RR
24	WP8286187 Whirlpool Dishwasher Left Front Surface Element
25	Box, Control
26	Seal, Foam
27	WP112432 Whirlpool Nut Assembly
28	Inside Wall, Insulation
29	GROMMET, FLEXIBLE
30	W10491984 Whirlpool Switch Seal
