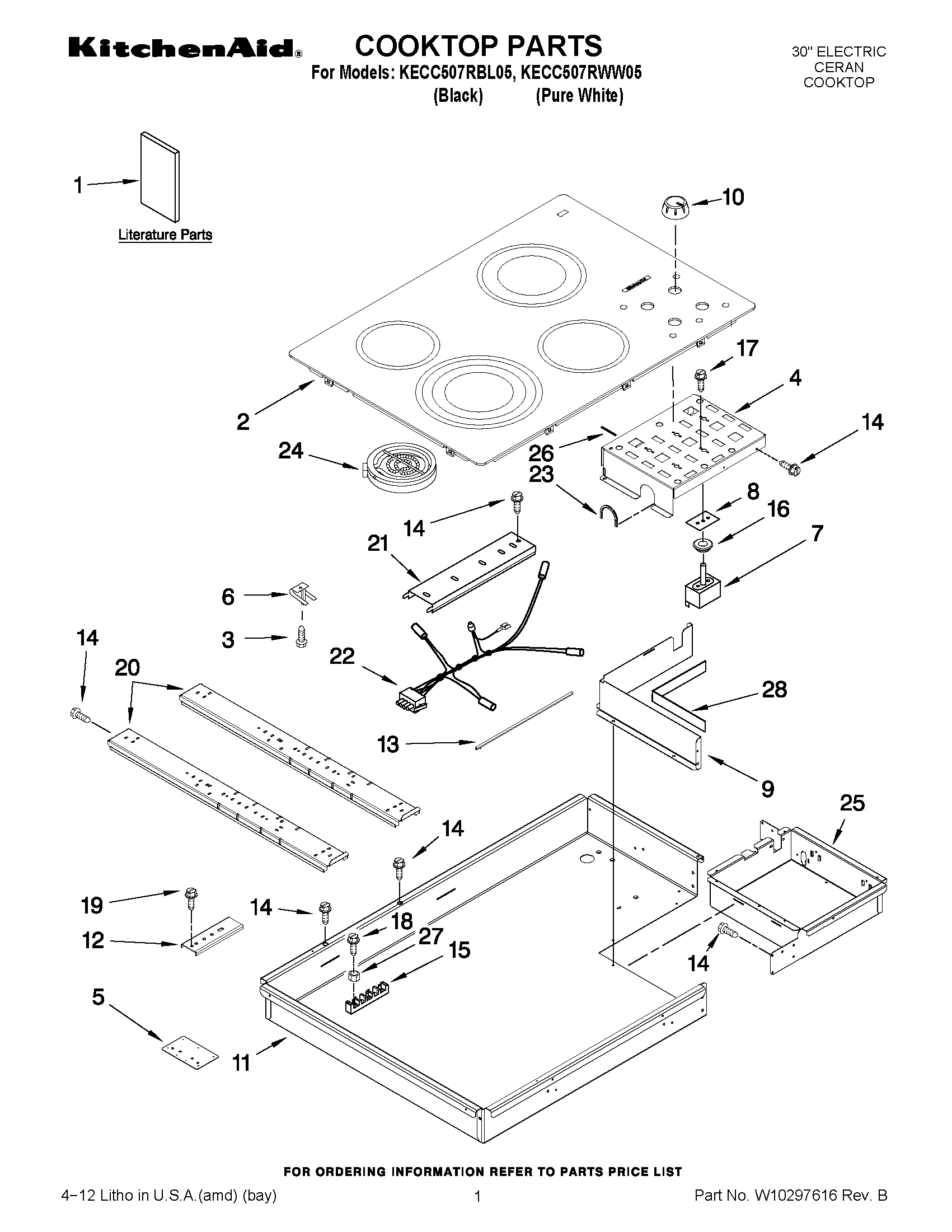

KECC507RWW05 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
1Installation Instructions (Undercounter Oven)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2COOKTOP, GLASS (WHITE)
2W10322778 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5Bracket, Bottom
69759094 Whirlpool Spring
7Switch, Infinite (Single (2))
7Switch, Infinite (Dual)
7Switch, Infinite (Triple)
83183956 Whirlpool Oven Seal Switch
9Wall, Inside
108286096WH Whirlpool Knob
10WP8286096BL Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
13Seal, Heat
14WP3196557 Whirlpool Screw
15BLOCK, TERMINAL
16Seal, Switch (White)
168285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
18WP3196163 Whirlpool Screw
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23GROMMET, FLEXIBLE
24W10823699 Whirlpool Right Front Surface Element
24ELEMENT, SURFACE 2000/1000W RR
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
25Box, Control
26W10491984 Whirlpool Switch Seal
27Nut
28Inside Wall, Insulation
