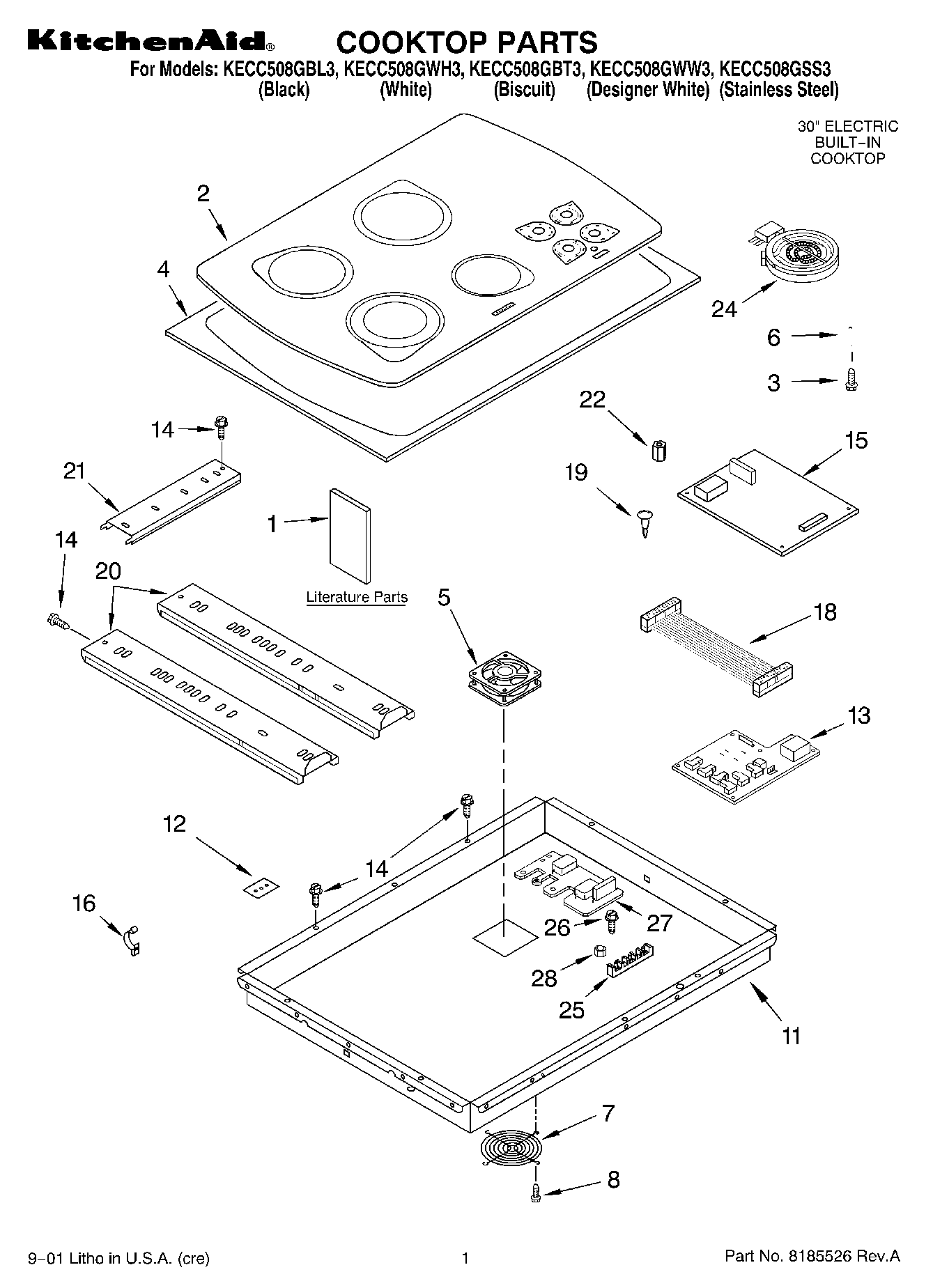

KECC508GBL3 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (Black on Stainless)
2Cooktop, Glass (White)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Designer White)
24455552 Whirlpool Oven Cooktop
3WP486754 Whirlpool Compactor Screw
4Frame, Cooktop (S.Steel model only)
5Fan, Cooling
6Spring, Locator
7Guard, Fan
8Screw
11Box, Burner
12W10491984 Whirlpool Switch Seal
13Board, Power
14WP3196557 Whirlpool Screw
15Board, Control
168528351 Whirlpool Clip
18Cable Ass`y, Flat
19Support, Power Board
20Rail, Element (2)
21Rail, Element (1)
22Standoff, Power Board
22Screw, 6-32 x .175
24W10823692 Whirlpool Dual Radiant Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823698 Whirlpool Surface Element Right Rear
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27Suppressor
28Wire, 25` Roll (Black 14 Ga.)
28WP3400015 Whirlpool Screw
28WP112432 Whirlpool Nut Assembly
28WPW10339879 Whirlpool Wire Tie
28WPL 3192770
28WPL 4455143
28WPL 3191521
28WPL 3192769
28Wire, 25` Roll (Red 14 Ga.)
28Wire, 25“ Roll (White 14 GA.)
28W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
281
28Wire (14 Ga. 200 c Brown)
28Bracket, Support (2)
28Hardware Asm.
2818 Ga. 80~c Rating (Red)
28Wire (12 Ga. 150 c Black)
28Wire (14 Ga. 150 c Yellow)
28Wire (14 Ga. 150 c Orange)
28Wire (14 Ga. 150 c Green)
28Wire (14 Ga. 150 c Brown)
28242831 Whirlpool Oven Wire
28WPL 4455282
