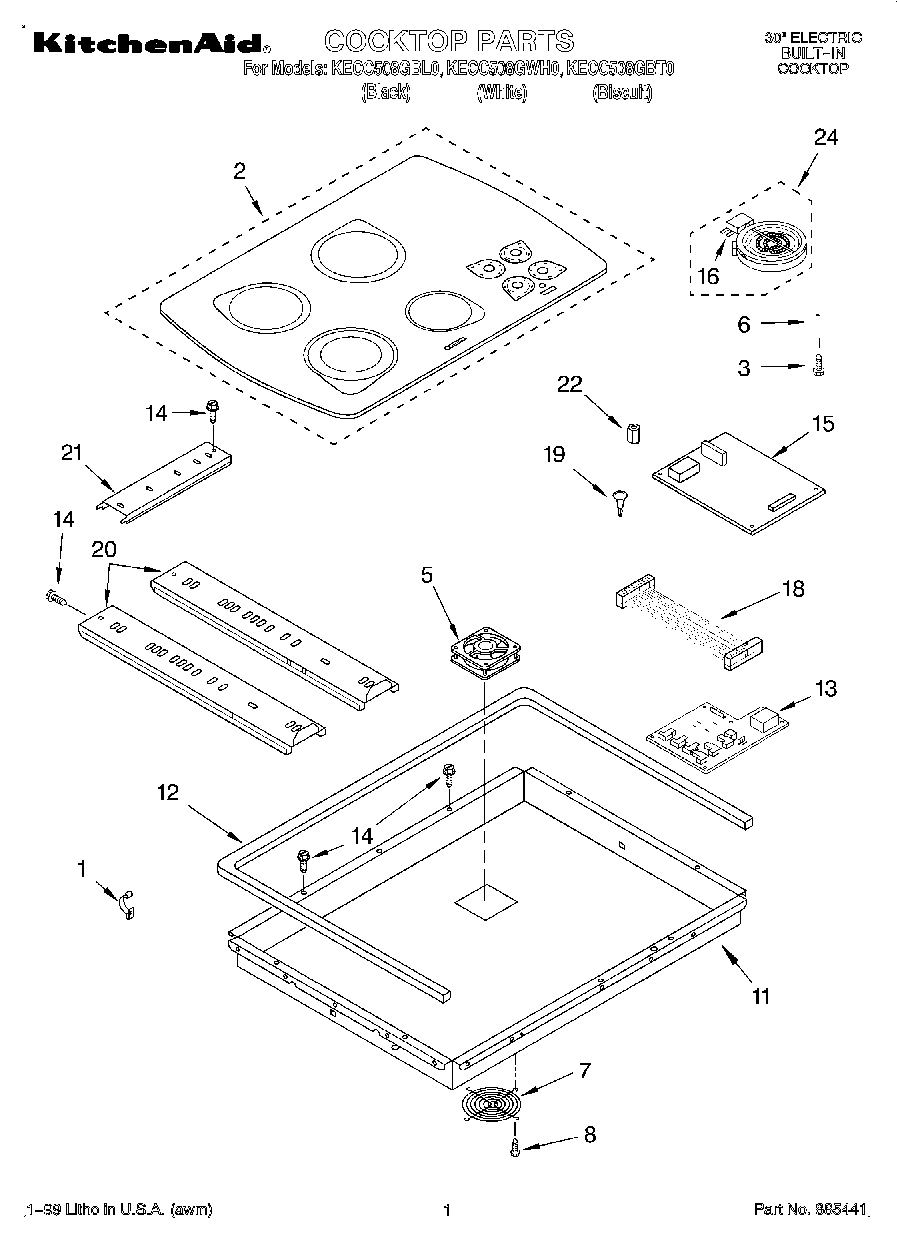

KECC508GWH0 01 – SECTION
Written by
in
KECC508GWH0 01 – SECTION
Products
Position
Product
Safer Cooking Tips
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 3179589
WPL 3192476
WPL 3192474
WPL 3192315
Literature Parts (Wiring Diagram)
Literature Parts (Installation Instructions)
Literature Parts (Use & Care Guide)
Wire (14 Ga. 150 c Yellow)
Hardware Asm.
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Wire (14 Ga. 150 c Orange)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 3191521
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
1
8528351 Whirlpool Clip
2
Cooktop, Glass (Black)
2
Cooktop, Glass (Biscuit)
2
Cooktop, Glass (White)
3
WP486754 Whirlpool Compactor Screw
5
Fan, Cooling
6
Spring, Locator
7
Guard, Fan
8
Screw
11
Box, Burner
12
Seal, Burner Box
13
Board, Power
14
WP3196557 Whirlpool Screw
15
Board, Control
16
Limiter, Temp. (LF)
16
Limiter, Temp. (LF)
16
Switch, Limiter (Use W/3191984 Element)
18
Cable Ass`y, Flat
19
Support, Power Board
20
Rail, Element (2)
21
Rail, Element (1)
22
Standoff, Power Board
22
Screw, 6-32 x .175
24
W10823692 Whirlpool Dual Radiant Element
24
W10823693 Whirlpool Surface Element
24
WPL 3191239
24
Element, Surface (Includes No. 16) (1200W Right Front)
←
