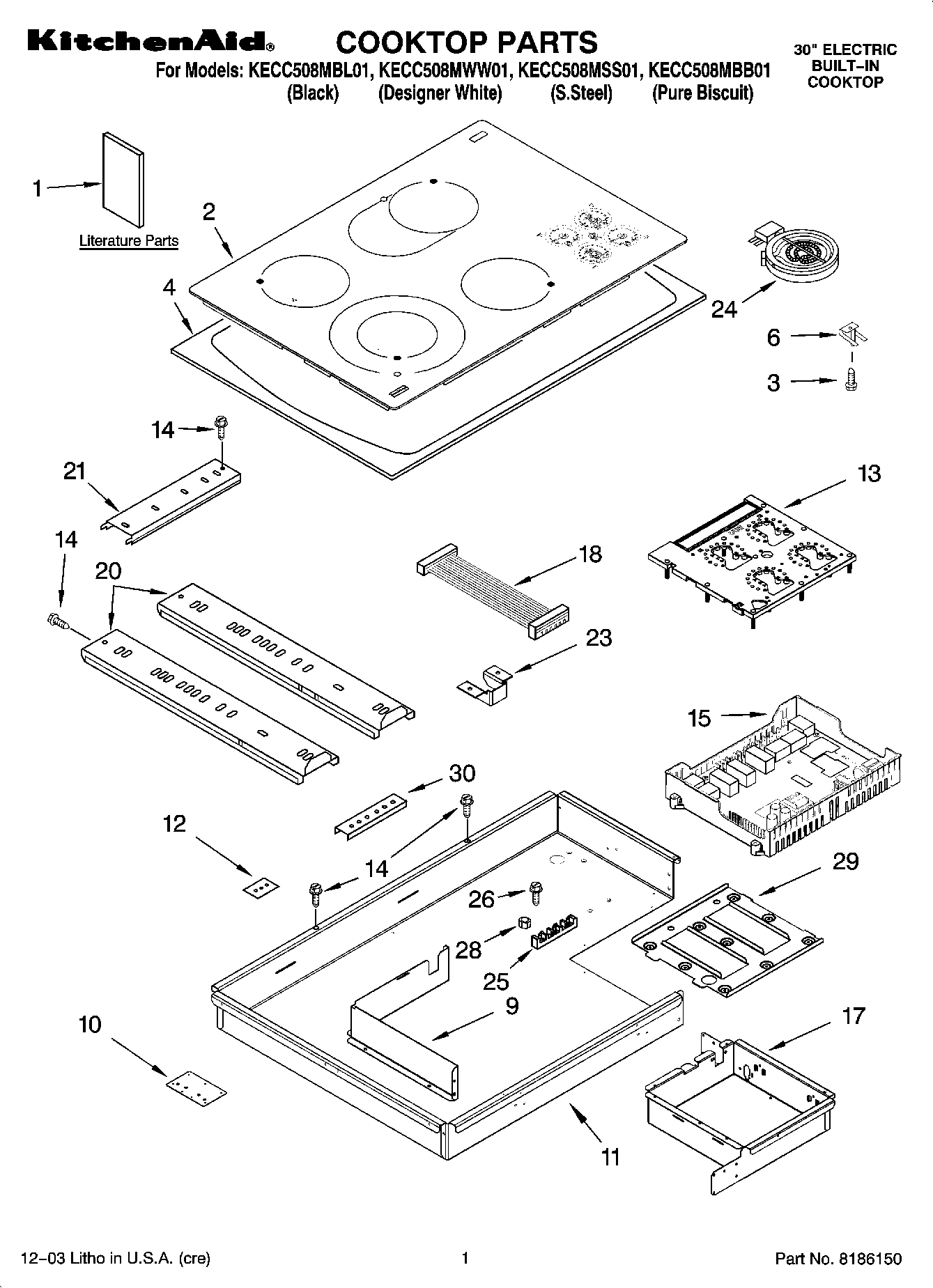

KECC508MBB01 01 – COOKTOP PARTS, MISCELLANEOUS PARTSadmin2025-04-26T10:29:24+00:00KECC508MBB01 01 – COOKTOP PARTS, MISCELLANEOUS PARTS
Products
| Position | Product |
|---|
| WPL ARI84029A6 |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Yellow) |
| Wire (12 Ga. 150 c Black) |
| 18 Ga. 80~c Rating (Red) |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| Bracket, Support (2) |
| Hardware Asm. |
| WPL 8285470 |
| WPL 8285599 |
| WPL ARI84025A4 |
| WPL ARI84026A4 |
| WPL ARI84027A4 |
| WPL ARI84028A4 |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| WP3400015 Whirlpool Screw |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 242831 Whirlpool Oven Wire |
| 1 | COOKTOP PARTS |
| 1 | Tech Sheet |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Safer Cooking Tips |
| 2 | Cooktop, Glass (Black) |
| 2 | Cooktop, Glass (Designer White) |
| 2 | Cooktop, Glass (Pure Biscuit) |
| 2 | Cooktop, Glass (Stainless Steel) |
| 3 | WP486754 Whirlpool Compactor Screw |
| 4 | Frame, Cooktop (S.Steel model only) |
| 6 | Spring, Locator |
| 9 | Wall, Inside |
| 10 | Bracket, Bottom |
| 11 | Box, Burner |
| 12 | W10491984 Whirlpool Switch Seal |
| 13 | Board, Control |
| 14 | WP3196557 Whirlpool Screw |
| 15 | WP4449745 Whirlpool Screw |
| 15 | Board, Power |
| 17 | Box, Touch Control |
| 18 | W10155097 Whirlpool Wire Harness |
| 20 | Rail, Element (2) |
| 21 | Rail, Element (1) |
| 23 | W10491985 Whirlpool Screw |
| 23 | Cover, Harness |
| 24 | WP8285845 Whirlpool Surface Element |
| 24 | W10823693 Whirlpool Surface Element |
| 24 | WP8285230 Whirlpool Surface Element |
| 25 | WP8203546 Whirlpool Terminal Block |
| 26 | WP3196163 Whirlpool Screw |
| 28 | WP112432 Whirlpool Nut Assembly |
| 29 | Support, Module |
| 30 | 8186533 Whirlpool Hardware |
| 30 | WP3400093 Whirlpool Screw |
