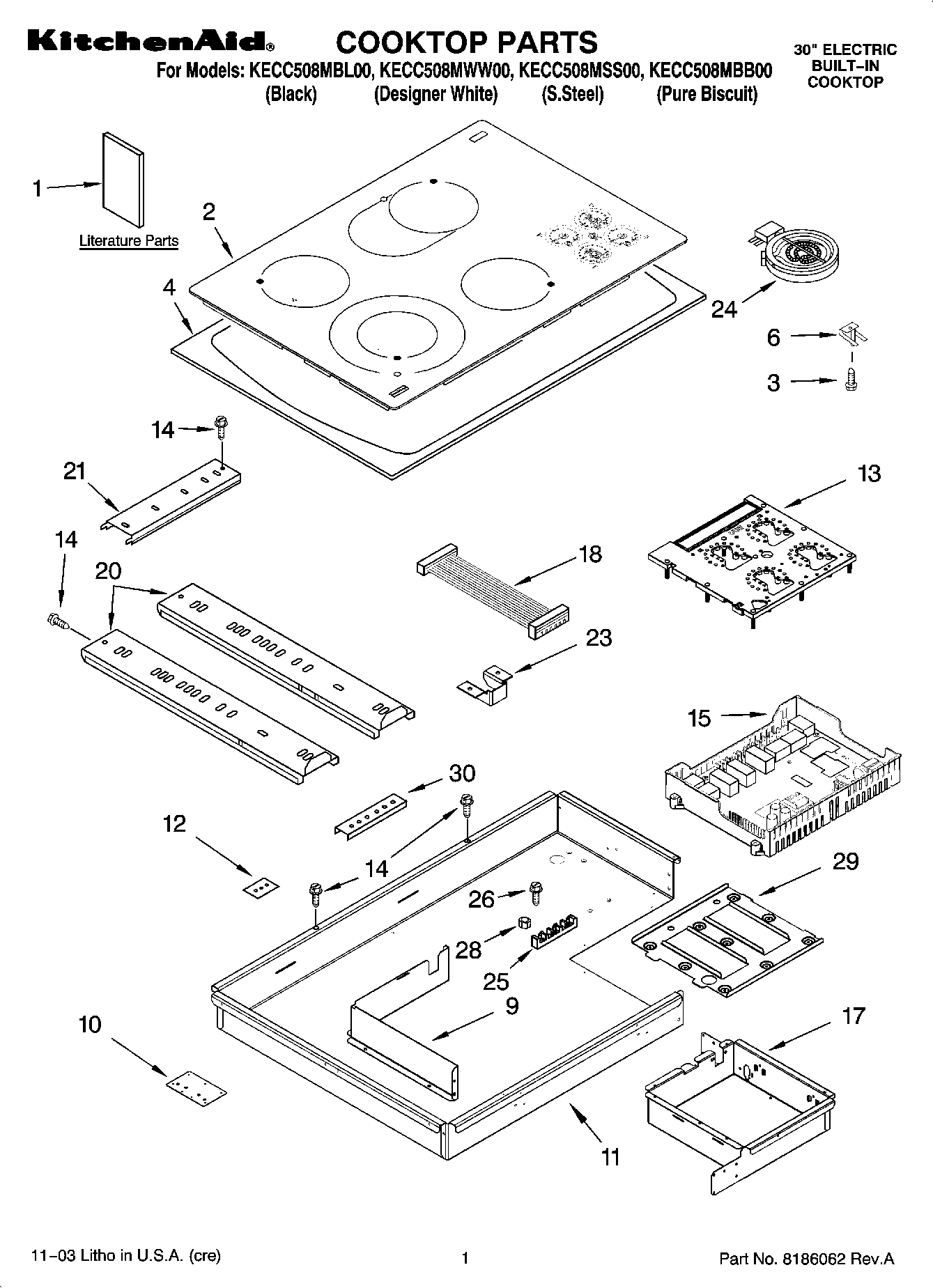

KECC508MWW00 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI84074A2
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Bracket, Support (2)
	Hardware Asm.
	WPL 8285366
	WPL 8285470
	WPL ARI84070A4
	WPL ARI84071A7
	WPL ARI84072A8
	WPL ARI84073A2
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
1	Literature Parts (Tech Sheet)
1	Safer Cooking Tips
1	COOKTOP PARTS
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Pure Biscuit)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Frame, Cooktop (S.Steel model only)
6	Spring, Locator
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	Board, Control
14	WP3196557 Whirlpool Screw
15	WP4449745 Whirlpool Screw
15	Board, Power
17	Box, Touch Control
18	W10155097 Whirlpool Wire Harness
20	Rail, Element (2)
21	Rail, Element (1)
23	W10491985 Whirlpool Screw
23	Cover, Harness
24	WP8285230 Whirlpool Surface Element
24	W10823693 Whirlpool Surface Element
24	WP8285845 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	WP112432 Whirlpool Nut Assembly
29	Support, Module
30	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
