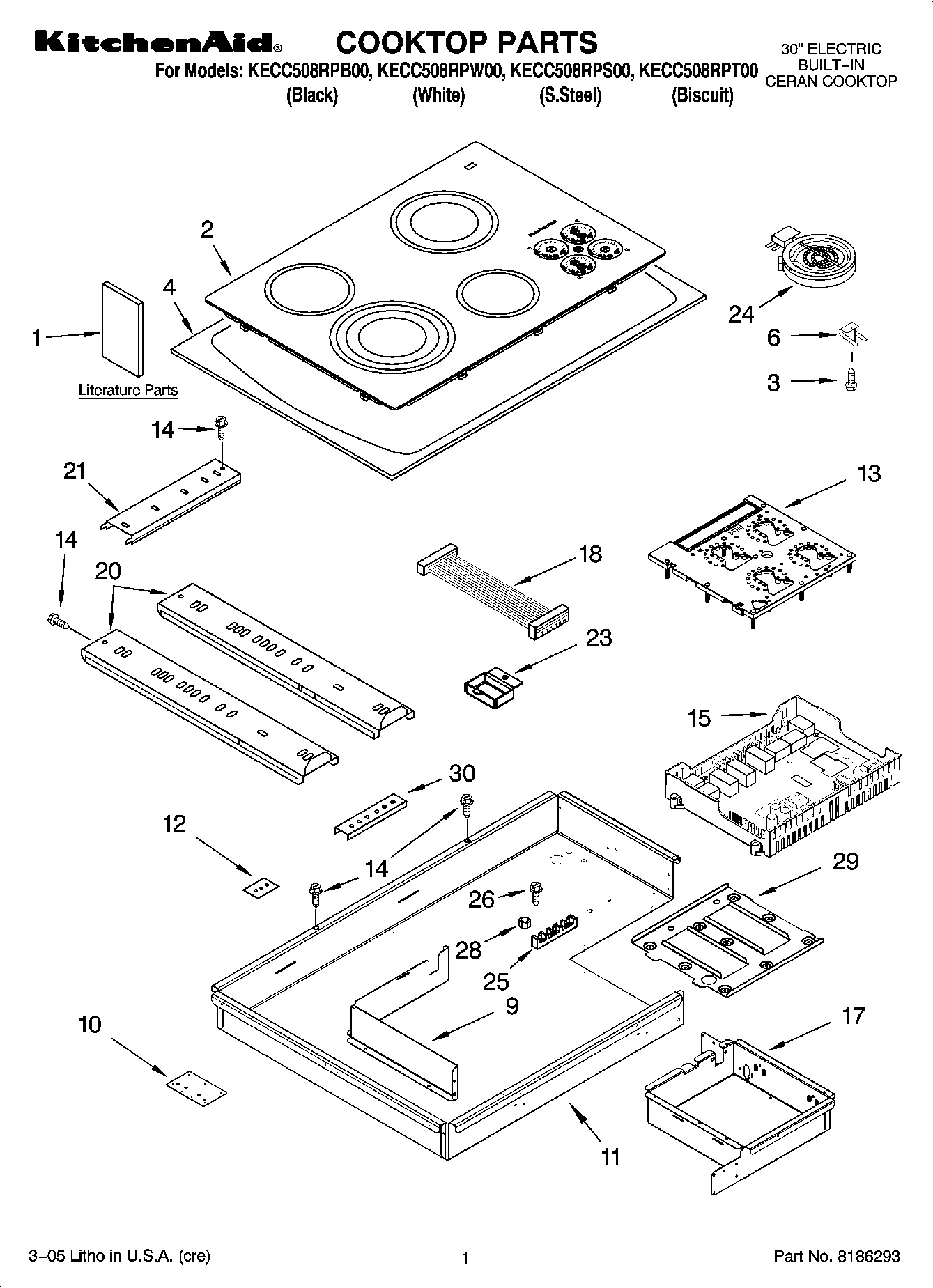

KECC508RPB00 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 8286379
	Hardware Asm.
	Bracket, Support (2)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	WPL ARI84086A2
	WPL ARI84088A2
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI84089A4
	W10113066 Whirlpool Wire Harness
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL ARI84087A7
1	Use & Care Guide
1	Wiring Diagram
1	Tech Sheet
1	Safe Cooking Tips
1	INSTALLATION INSTRUCTIONS
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Frame, Cooktop (S.Steel Mdl Only)
6	9759094 Whirlpool Spring
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	WP8285922 Whirlpool Electronic Control Board
14	WP3196557 Whirlpool Screw
15	Board, Power
15	WP4449745 Whirlpool Screw
17	Box, Touch Control
18	W10155097 Whirlpool Wire Harness
20	Rail, Element (2)
21	Rail, Element (1)
23	8285593 Whirlpool Oven Wire Cover
23	W10491985 Whirlpool Screw
24	Element, Surface (2500/1800/900W LF)
24	Element, Surface (2000/1000W RR)
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	WP112432 Whirlpool Nut Assembly
29	Support, Module
30	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
