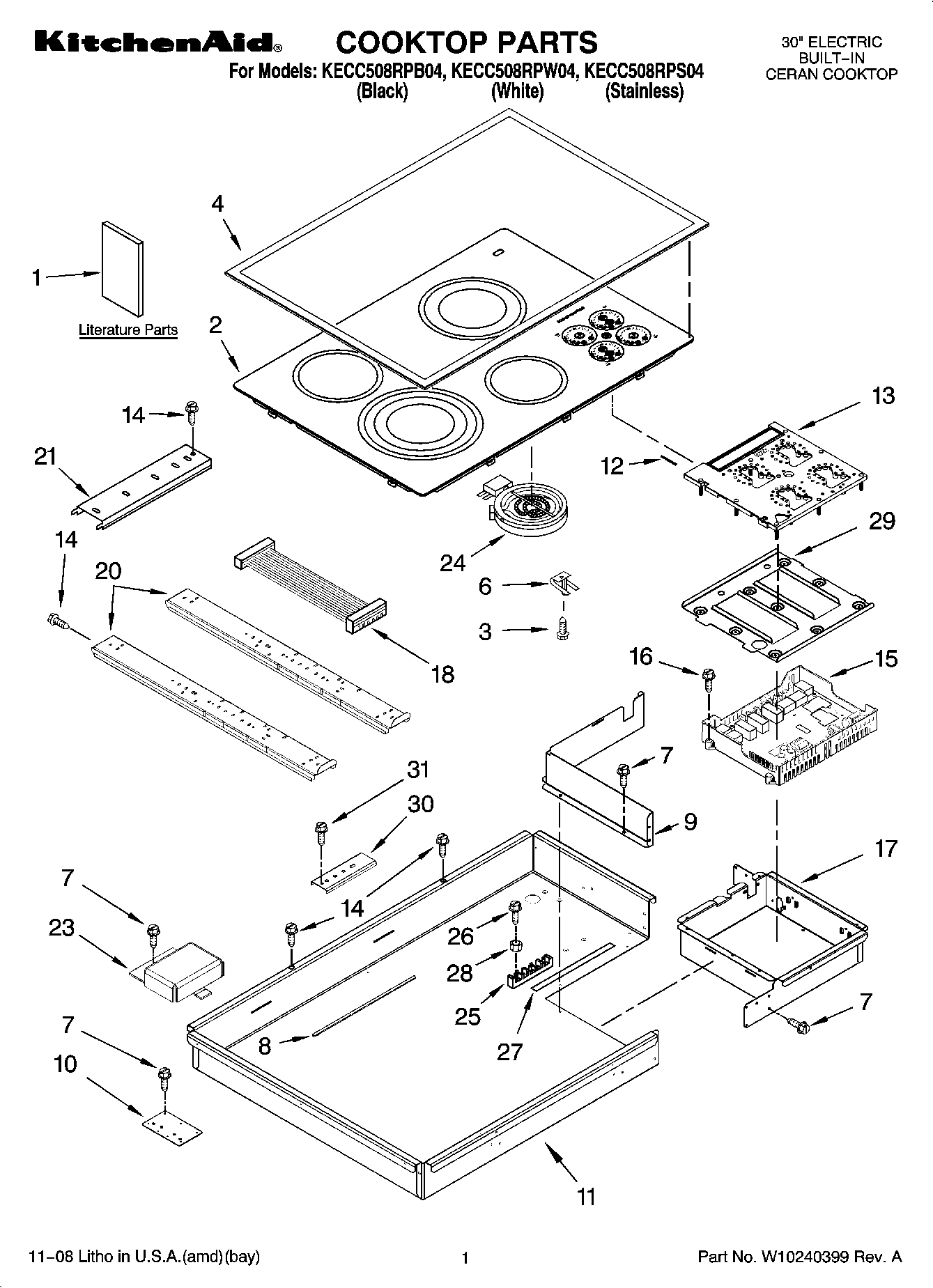

KECC508RPB04 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WP8286642 Whirlpool Tape
BUSHING
W10113066 Whirlpool Wire Harness
WPL 8286379
WP3400015 Whirlpool Screw
Following Parts Not Illustrated
Miscellaneous
WIRING HARNESS PARTS
Clip, Harnes
1Tech Sheet
1Use & Care Guide
1Safe Cooking Tips (French)
1Installation Instructions (Undercounter Oven)
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3WP486754 Whirlpool Compactor Screw
4Frame, Cooktop
69759094 Whirlpool Spring
7W10491985 Whirlpool Screw
8Seal, Heat
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13WP8285922 Whirlpool Electronic Control Board
13Board, Control (White)
14WP3196557 Whirlpool Screw
15Appliance Manager, Module
16WP4449745 Whirlpool Screw
17Box, Control
18W10155097 Whirlpool Wire Harness
20Rail, Element (3)
21Rail, Element (1)
238285593 Whirlpool Oven Wire Cover
24Element, Surface (2000/1000W RR)
24Element, Surface (2500/1800/900W LF)
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27Seal, Foam
28WP112432 Whirlpool Nut Assembly
29Support, Module
308186533 Whirlpool Hardware
31WP3400093 Whirlpool Screw
