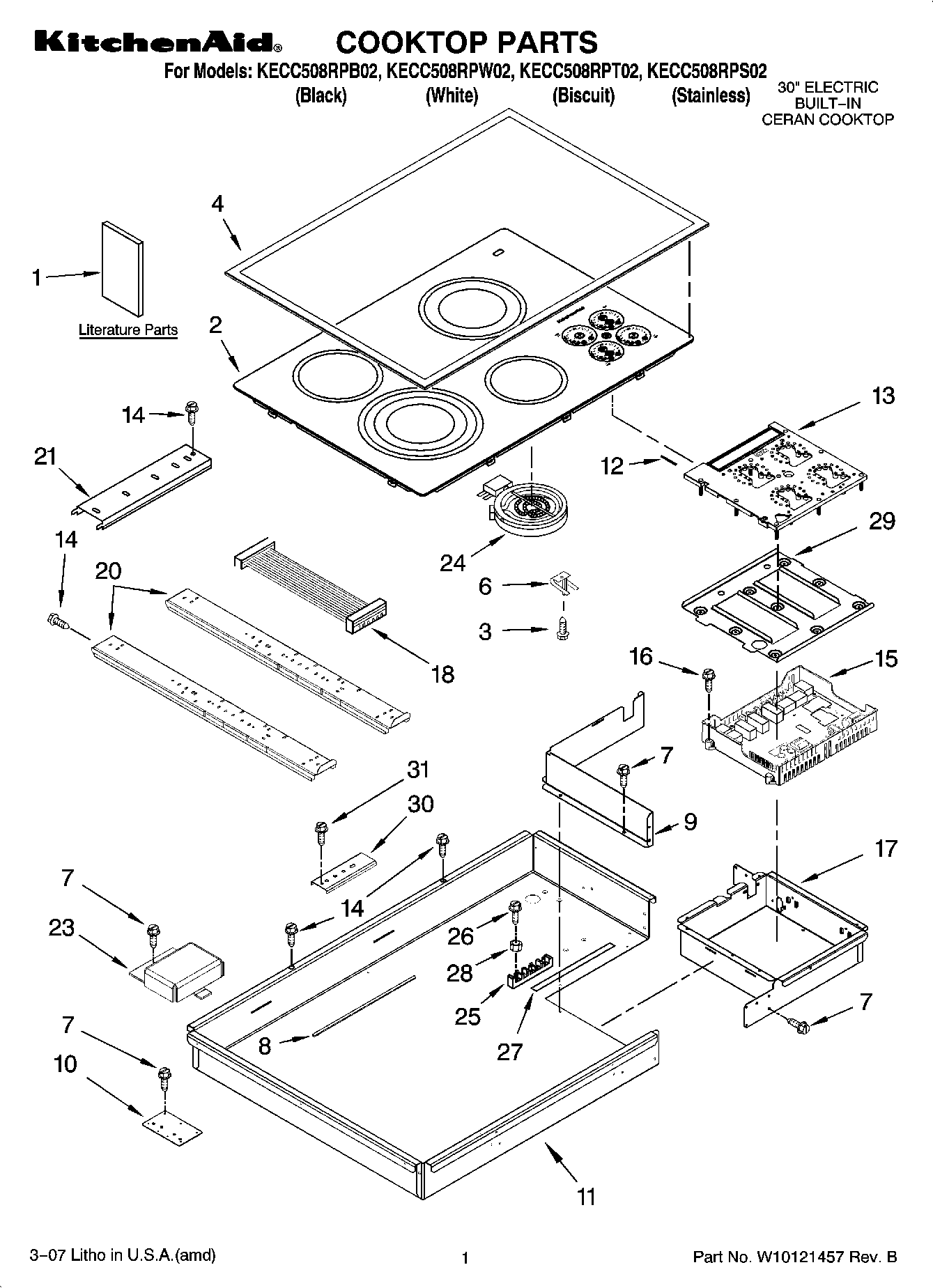

KECC508RPS02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

KECC508RPS02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KECC508RPS02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
W10113066 Whirlpool Wire Harness
WPL 8286379
Hardware Asm.
Clip, Harnes
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Bracket, Support (2)
WP3400015 Whirlpool Screw
WPL ARI84119A4
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI84118A2
WP8286642 Whirlpool Tape
BUSHING
WPL ARI84121A2
WPL ARI84122A6
WPL ARI84120A1
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1INSTALLATION INSTRUCTIONS
1LITERATURE PARTS
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Tech Sheet
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3WP486754 Whirlpool Compactor Screw
4Frame, Cooktop (S.Steel Mdl Only)
69759094 Whirlpool Spring
7W10491985 Whirlpool Screw
8Seal, Heat
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13WP8285922 Whirlpool Electronic Control Board
14WP3196557 Whirlpool Screw
15Appliance Manager, Module
16WP4449745 Whirlpool Screw
17Box, Control
18W10155097 Whirlpool Wire Harness
20Rail, Element (3)
21Rail, Element (1)
238285593 Whirlpool Oven Wire Cover
24Element, Surface (2000/1000W RR)
24Element, Surface (2500/1800/900W LF)
24WP8285230 Whirlpool Surface Element
24WP4453907 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27Seal, Foam
28WP112432 Whirlpool Nut Assembly
29Support, Module
308186533 Whirlpool Hardware
31WP3400093 Whirlpool Screw
