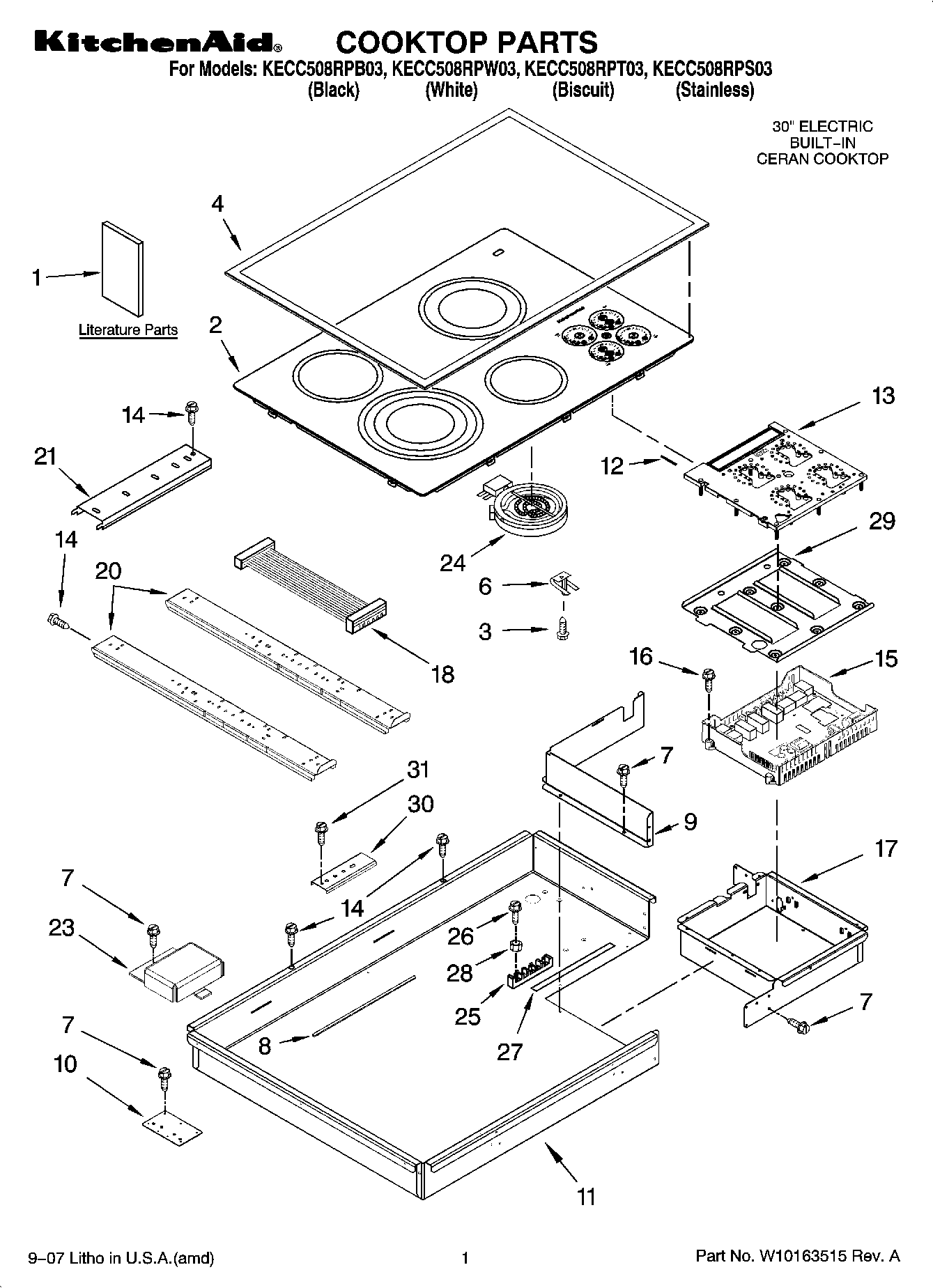

KECC508RPS03 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	242831 Whirlpool Oven Wire
	WPL ARI84126A9
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 8286379
	Clip, Harnes
	W10113066 Whirlpool Wire Harness
	WP3400015 Whirlpool Screw
	WPL ARI84124A6
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI84125A1
	WP8286642 Whirlpool Tape
	BUSHING
	WPL ARI84123A4
1	Use & Care Guide
1	Installation Instructions (Undercounter Oven)
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS
2	Cooktop, Glass (White)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Frame, Cooktop
6	9759094 Whirlpool Spring
7	W10491985 Whirlpool Screw
8	Seal, Heat
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	WP8285922 Whirlpool Electronic Control Board
13	Board, Control (White)
14	WP3196557 Whirlpool Screw
15	Appliance Manager, Module
16	WP4449745 Whirlpool Screw
17	Box, Control
18	W10155097 Whirlpool Wire Harness
20	Rail, Element (3)
21	Rail, Element (1)
23	8285593 Whirlpool Oven Wire Cover
24	WP4453907 Whirlpool Surface Element
24	Element, Surface (2000/1000W RR)
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (2500/1800/900W LF)
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	Seal, Foam
28	WP112432 Whirlpool Nut Assembly
29	Support, Module
30	8186533 Whirlpool Hardware
31	WP3400093 Whirlpool Screw
