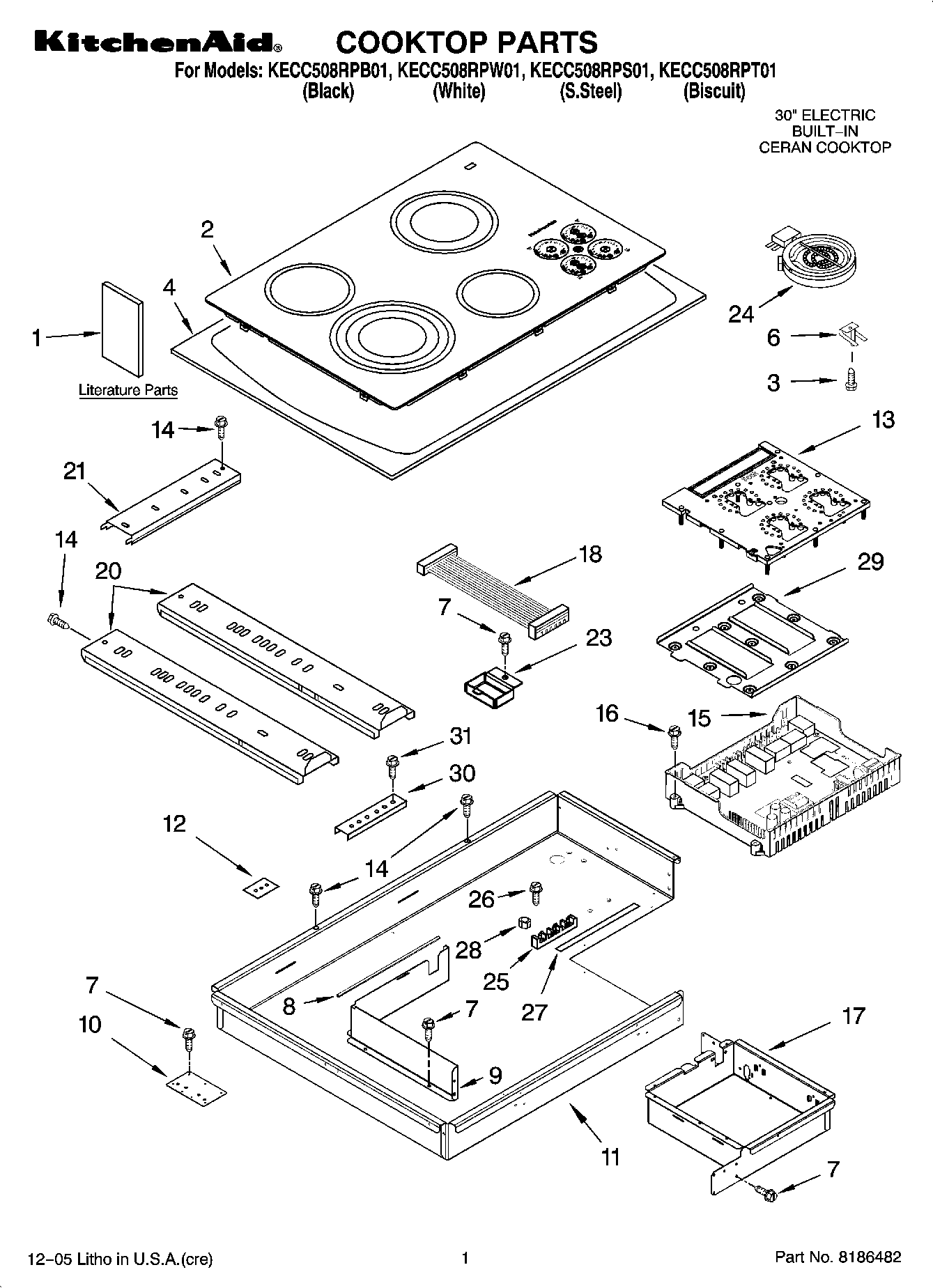

KECC508RPT01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

KECC508RPT01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

KECC508RPT01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
W10113066 Whirlpool Wire Harness
WPL ARI84138A8
WPL 8286379
Hardware Asm.
Clip, Harnes
Wire (14 Ga. 150 c Green)
242831 Whirlpool Oven Wire
Bracket, Support (2)
WPL ARI84134A3
WPL ARI84135A5
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI84136A3
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI84137A6
WP3400015 Whirlpool Screw
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Tech Sheet
2Cooktop, Glass (Stainless Steel)
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Frame, Cooktop (S.Steel Mdl Only)
69759094 Whirlpool Spring
7W10491985 Whirlpool Screw
8Seal, Heat
9Wall, Inside
10Bracket, Bottom
11Box, Burner
12W10491984 Whirlpool Switch Seal
13WP8285922 Whirlpool Electronic Control Board
14WP3196557 Whirlpool Screw
15Board, Power
16WP4449745 Whirlpool Screw
17Box, Control
18W10155097 Whirlpool Wire Harness
20Rail, Element (2)
21Rail, Element (1)
238285593 Whirlpool Oven Wire Cover
24WP4453907 Whirlpool Surface Element
24Element, Surface (2500/1800/900W LF)
24Element, Surface (2000/1000W RR)
24WP8285230 Whirlpool Surface Element
25WP8203546 Whirlpool Terminal Block
26WP3196163 Whirlpool Screw
27Seal, Foam
28WP112432 Whirlpool Nut Assembly
29Support, Module
308186533 Whirlpool Hardware
31WP3400093 Whirlpool Screw
