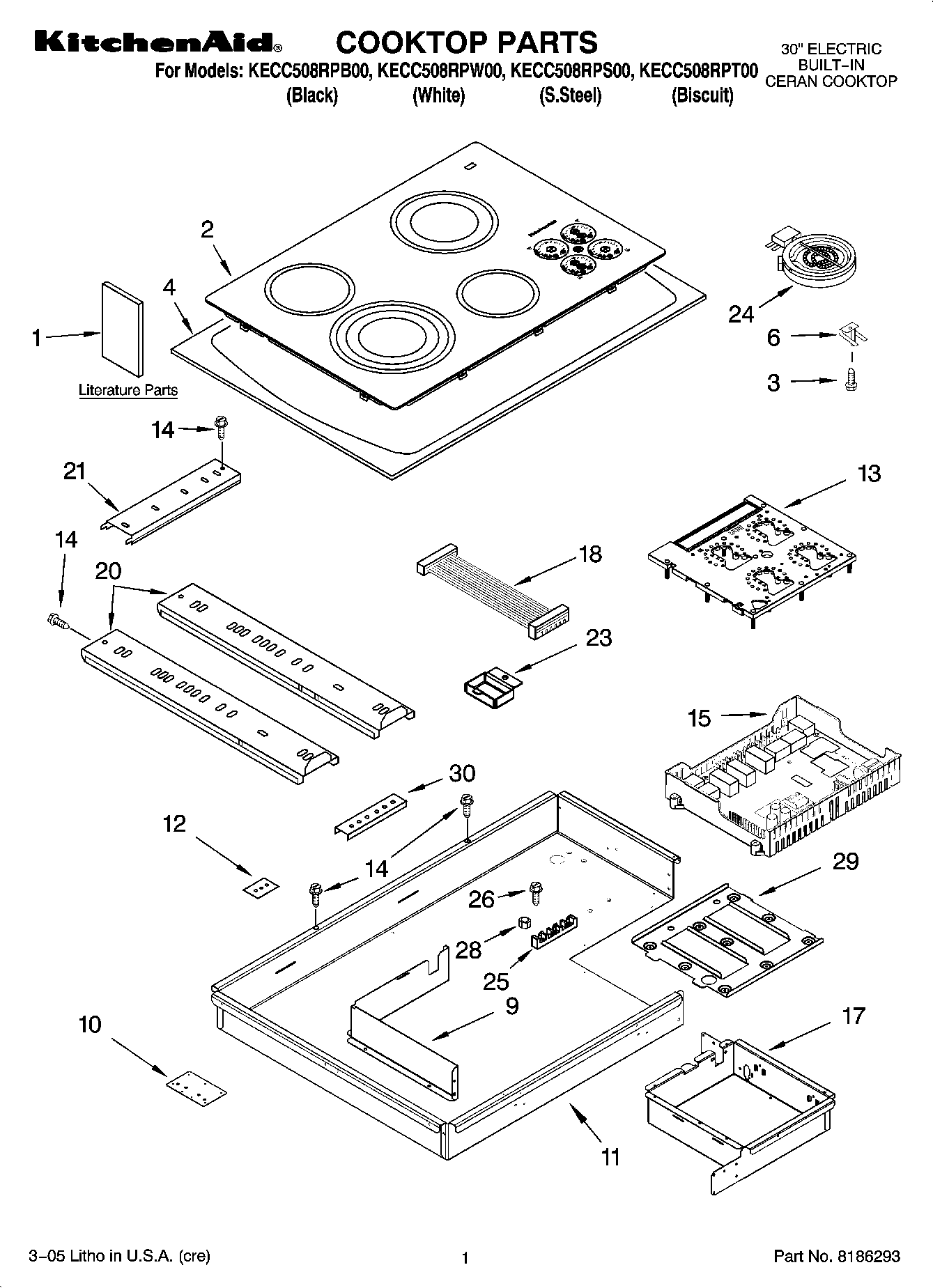

KECC508RPW00 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI84151A7
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 8286379
	WPL ARI84149A8
	Bracket, Support (2)
	Hardware Asm.
	WPL ARI84152A1
	W10113066 Whirlpool Wire Harness
	WPL ARI84150A6
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
1	Safe Cooking Tips
1	Use & Care Guide
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS
1	Wiring Diagram
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Stainless Steel)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Frame, Cooktop (S.Steel Mdl Only)
6	9759094 Whirlpool Spring
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	WP8285922 Whirlpool Electronic Control Board
14	WP3196557 Whirlpool Screw
15	WP4449745 Whirlpool Screw
15	Board, Power
17	Box, Touch Control
18	W10155097 Whirlpool Wire Harness
20	Rail, Element (2)
21	Rail, Element (1)
23	8285593 Whirlpool Oven Wire Cover
23	W10491985 Whirlpool Screw
24	Element, Surface (2500/1800/900W LF)
24	WP4453907 Whirlpool Surface Element
24	Element, Surface (2000/1000W RR)
24	WP8285230 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	WP112432 Whirlpool Nut Assembly
29	Support, Module
30	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
