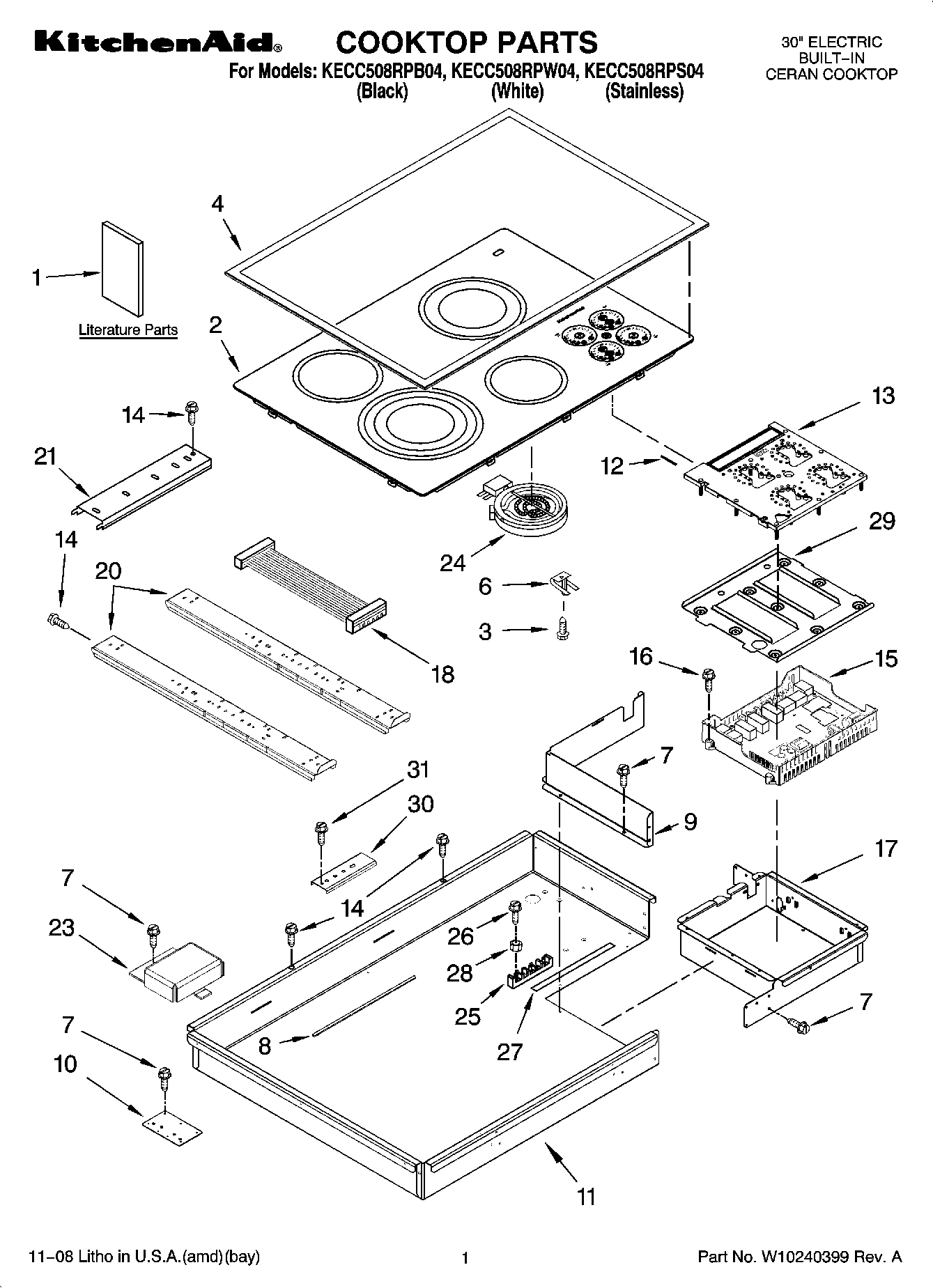

KECC508RPW04 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	Miscellaneous
	WIRING HARNESS PARTS
	W10113066 Whirlpool Wire Harness
	BUSHING
	WP8286642 Whirlpool Tape
	Clip, Harnes
	WP3400015 Whirlpool Screw
	WPL 8286379
	Following Parts Not Illustrated
1	Use & Care Guide
1	Installation Instructions (Undercounter Oven)
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	Frame, Cooktop
6	9759094 Whirlpool Spring
7	W10491985 Whirlpool Screw
8	Seal, Heat
9	Wall, Inside
10	Bracket, Bottom
11	Box, Burner
12	W10491984 Whirlpool Switch Seal
13	Board, Control (White)
13	WP8285922 Whirlpool Electronic Control Board
14	WP3196557 Whirlpool Screw
15	Appliance Manager, Module
16	WP4449745 Whirlpool Screw
17	Box, Control
18	W10155097 Whirlpool Wire Harness
20	Rail, Element (3)
21	Rail, Element (1)
23	8285593 Whirlpool Oven Wire Cover
24	Element, Surface (2000/1000W RR)
24	Element, Surface (2500/1800/900W LF)
24	WP8285230 Whirlpool Surface Element
24	WP4453907 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
27	Seal, Foam
28	WP112432 Whirlpool Nut Assembly
29	Support, Module
30	8186533 Whirlpool Hardware
31	WP3400093 Whirlpool Screw
