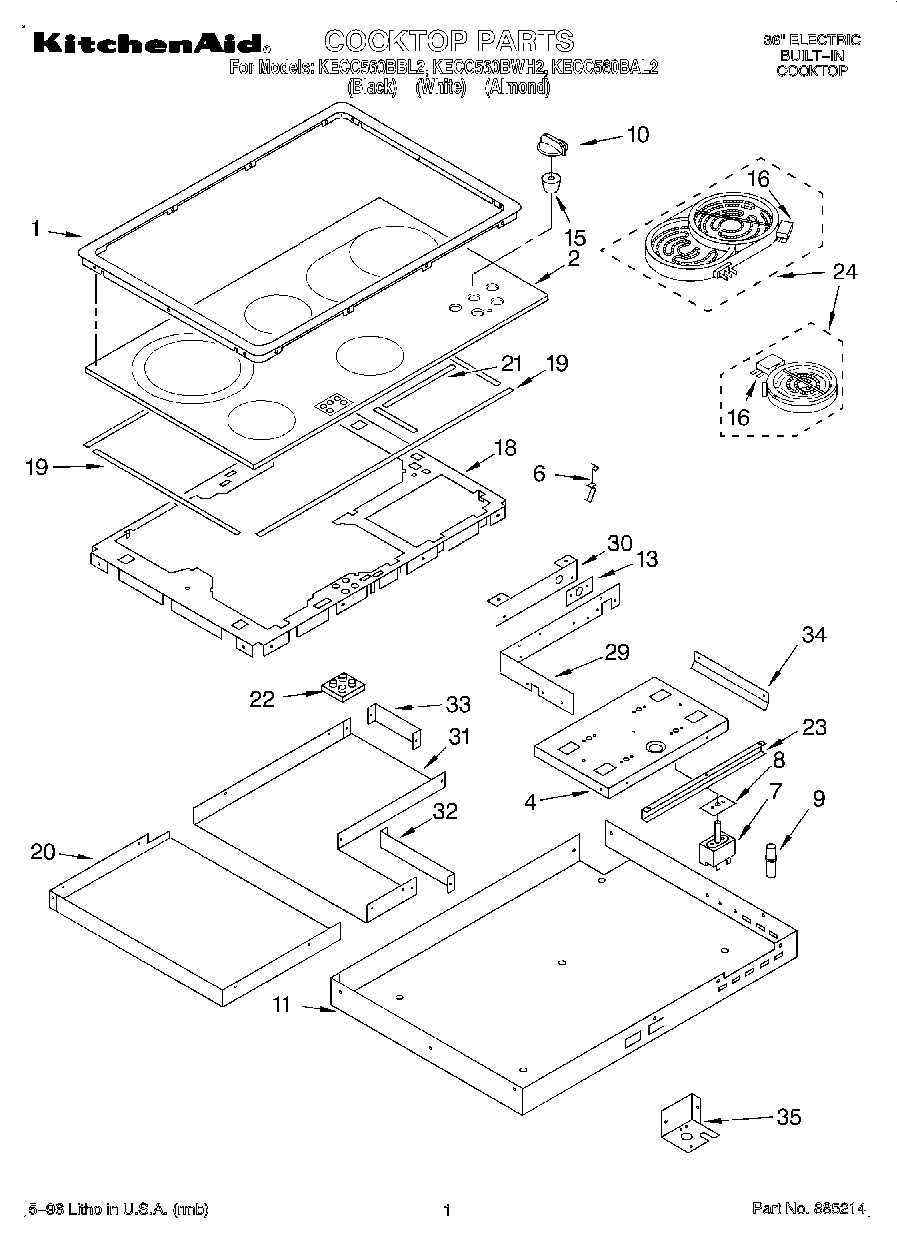

KECC560BBL2 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (Almond)
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
2	Cooktop, Glass (Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
4	Bracket, Switch Mounting
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator (8)
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	WP486579 Whirlpool Air Conditioner Screw
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knobs, Control (4) (Almond)
10	WP9750372FF Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3189901 Element)
16	Limiter, Temp (2400W – LF)
16	Limiter, Temp. (1400 W – LR)
16	Switch, Limiter (Use W/3189893 Element)
18	Plate, Backer
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Large (2))
20	Shield, Heat
21	Seal, Silicone (Controls (2))
21	Seal, Silicone (11 in.)
22	Vent, Lower Trim (Screw (2))
22	Lamp, Hot Surface Indicator
23	Bracket, Stiffening
24	WPL 3189901
24	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
24	Element, Surface (6“ L.R. 1400W)
24	W10823694 Whirlpool Surface Element
29	WPL 3188876
30	WPL 3189175
31	WPL 3188309
32	WPL 3188158
33	WPL 3189159
34	Screw (6)
34	WPL 3189036
35	WPL 3189273
