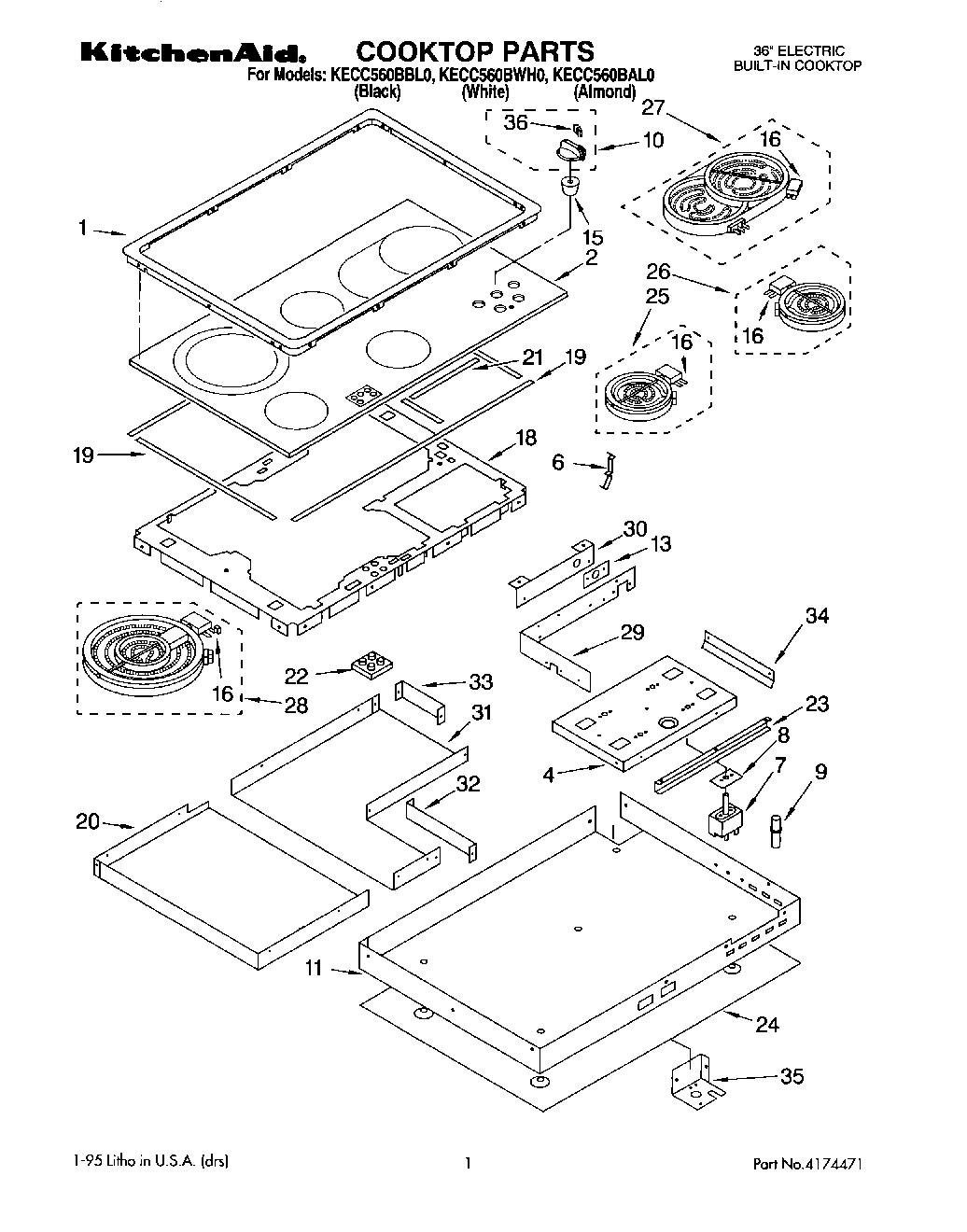

KECC560BWH0 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Almond)
1	Trim Ring, Cooktop (Black)
2	Cooktop, Glass (Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
4	Bracket, Switch Mounting
6	WP486754 Whirlpool Compactor Screw
6	Spring Locator (8)
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	W10900107 Whirlpool Oven Surface Element Switch
8	3183956 Whirlpool Oven Seal Switch
8	WP486579 Whirlpool Air Conditioner Screw
9	Light, Indicator
10	WP9750372FF Whirlpool Knob
10	Knobs, Control (4) (Almond)
10	WP9750372FW Whirlpool Knob Assembly
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3187188 Element)
16	Switch, Limiter (Use W/4454438 Element)
16	Switch, Limiter (Use W/4454439 Element)
16	Switch, Limiter (Use W/3187119 Element)
18	Plate, Backer
19	Seal, Silicone (Large (2))
19	Seal, Silicone (Sides (2))
20	Shield, Heat
21	Seal, Silicone (Controls (2))
21	Seal, Silicone (11 in.)
22	Lamp, Hot Surface Indicator
22	Vent, Lower Trim (Screw (2))
23	Bracket, Stiffening
24	Shield, Heat (Exterior)
25	1200W Left Front
26	Element, Surface (1400W Left Rear)
27	2200/1400W Right Rear
28	W10823694 Whirlpool Surface Element
29	WPL 3188876
30	WPL 3189175
31	WPL 3188309
32	WPL 3188158
33	WPL 3189159
34	Screw (6)
34	WPL 3189036
35	WPL 3189273
36	WPL 9751376
36	WPL 9751377
