KECC562GBL05 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

KECC562GBL05 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Written by

in

KECC562GBL05 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
4455364 Whirlpool Oven Support Bracket
WPL 4456513
WPL ARI84174A7
WPL 3191239
WPL 4456028
WPL 3192737
Wire (14 Ga. 150 c Green)
WPL 4456764
WPL ARI84172A7
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Bracket, Support (2)
WPL ARI84175A2
242831 Whirlpool Oven Wire
Hardware Asm.
16515 Whirlpool Clip
WPL ARI84173A9
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Literature Parts (Use & Care Guide)

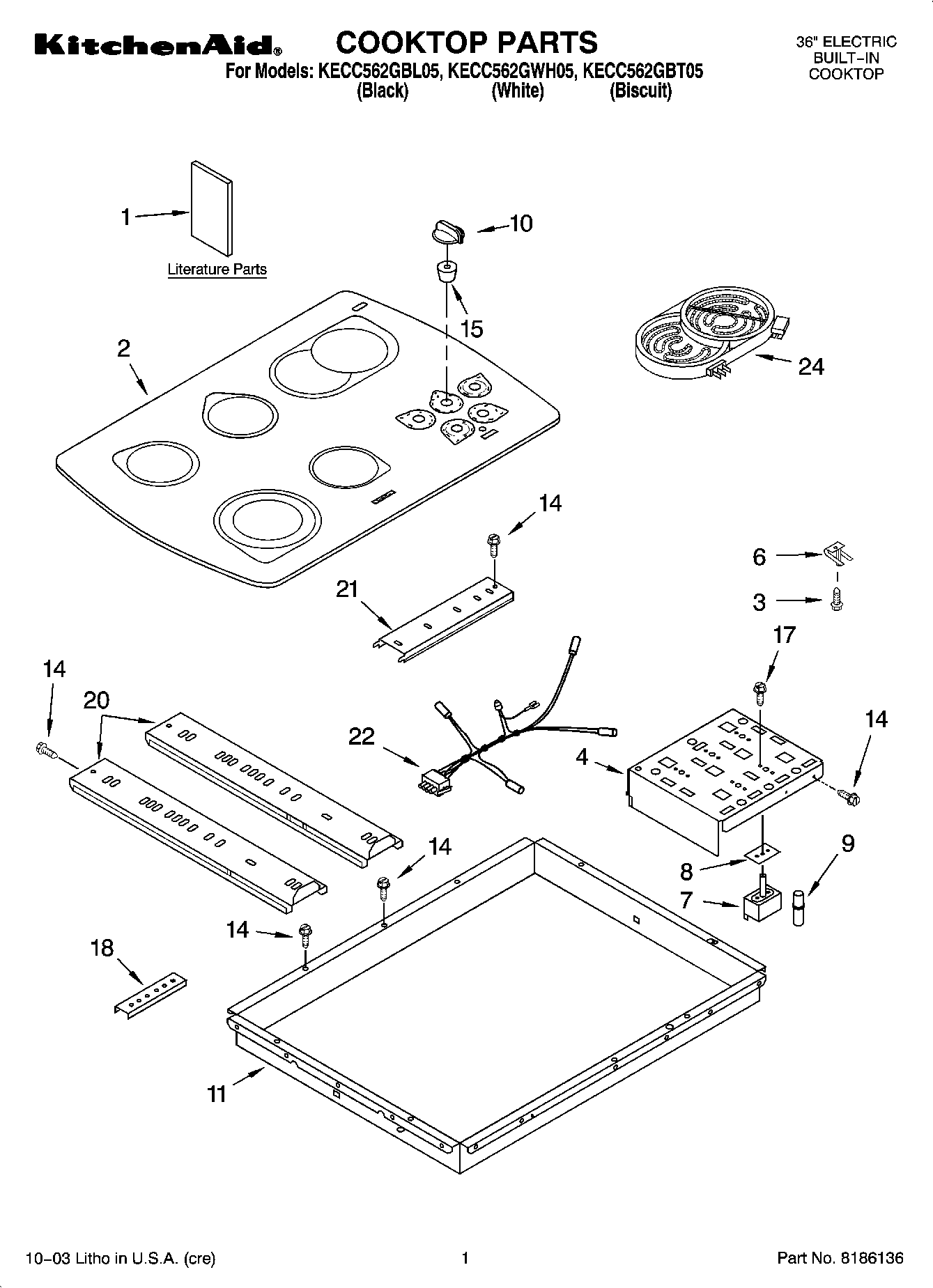

1COOKTOP PARTS
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Safer Cooking Tips
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Biscuit)
43183956 Whirlpool Oven Seal Switch
4Bracket, Switch
6Spring, Locator
6WP486754 Whirlpool Compactor Screw
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
11Box, Burner
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823699 Whirlpool Right Front Surface Element
24Element, Surface (1000/1800W – RR)
24W10823692 Whirlpool Dual Radiant Element
