KECC562GBL1 01 – SECTION

KECC562GBL1 01 – SECTION

Written by

in

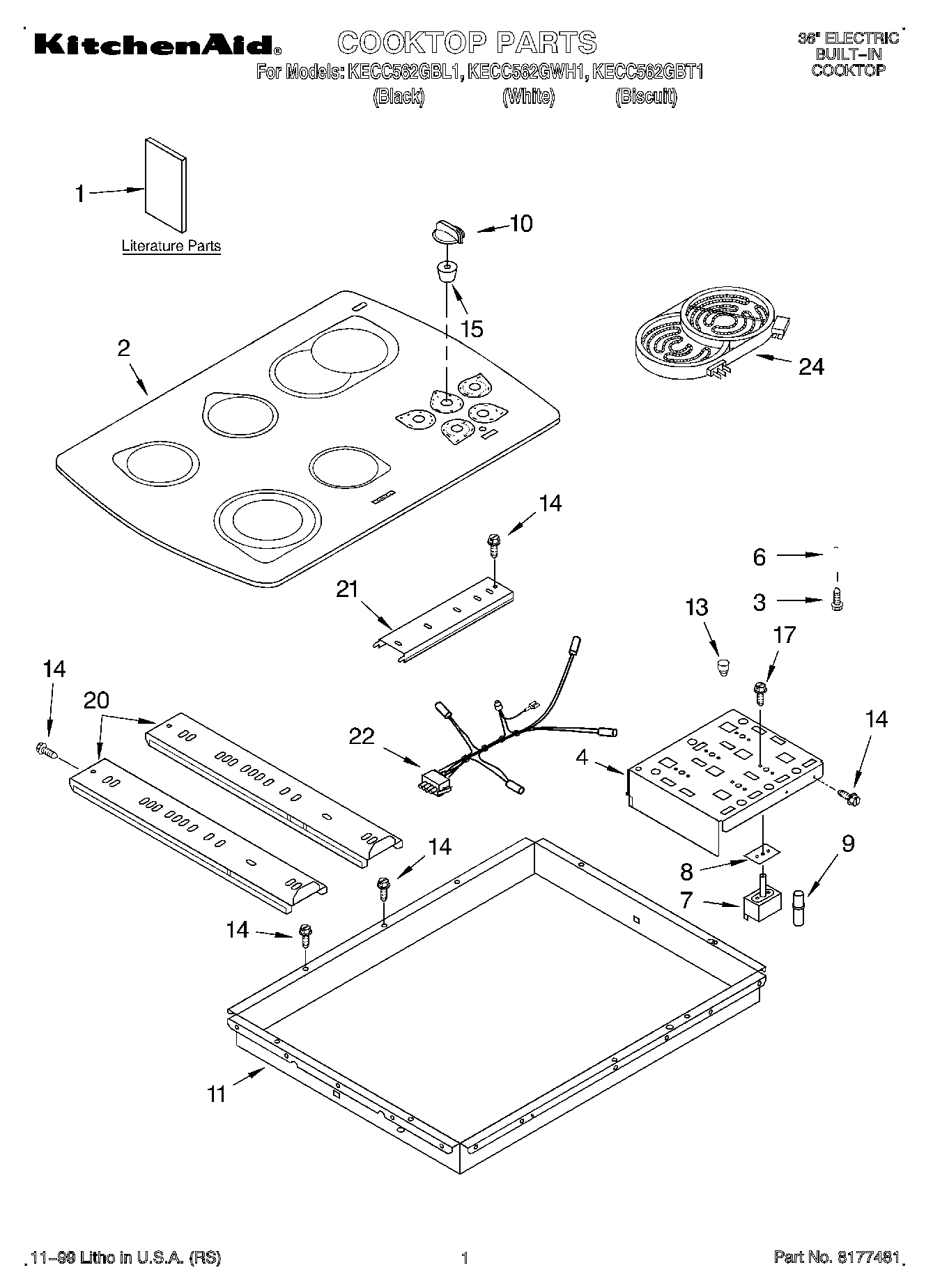

KECC562GBL1 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
43183956 Whirlpool Oven Seal Switch
4Bracket, Switch
6WP486754 Whirlpool Compactor Screw
6Spring, Locator
78203534 Whirlpool Oven Top Burner Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24Element, Surface (1000/1800W – RR)
24Seal, Burner Box
24Conduit Assy.
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24WP3400015 Whirlpool Screw
24Wire (12 Ga. 150 c Black)
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
2416515 Whirlpool Clip
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 200 c Brown)
241
24W10823699 Whirlpool Right Front Surface Element
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24W10823692 Whirlpool Dual Radiant Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24Hardware Asm.
2418 Ga. 80~c Rating (Red)
24242831 Whirlpool Oven Wire
24WPL 4455274
