KECC562GBL4 01 – SECTION

KECC562GBL4 01 – SECTION

Written by

in

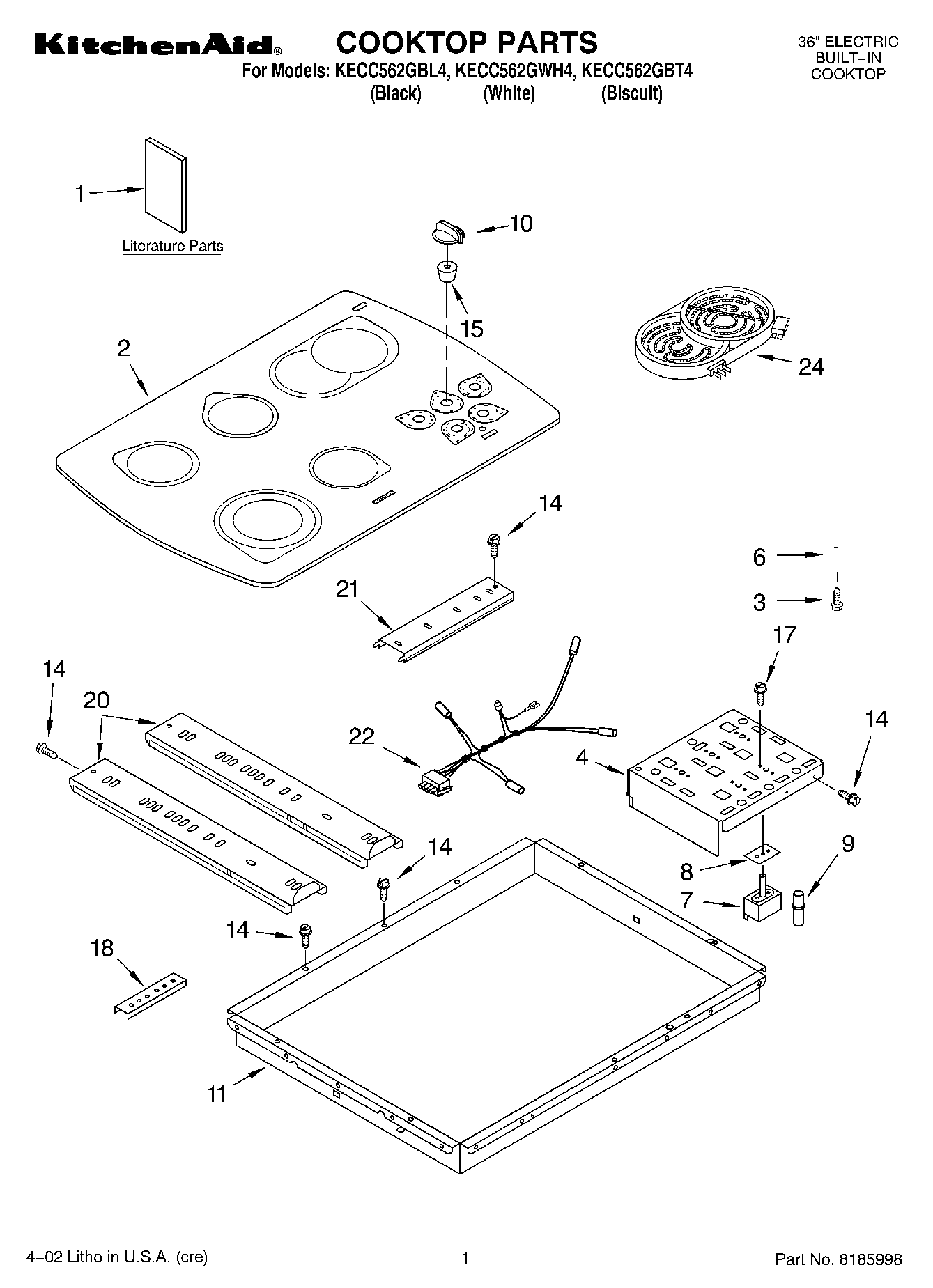

KECC562GBL4 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
43183956 Whirlpool Oven Seal Switch
4Bracket, Switch
6WP486754 Whirlpool Compactor Screw
6Spring, Locator
7WP3191049 Infinite Switch Left Rear Right Front
7WP4456027 Whirlpool Infinite Switch Right Rear
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
11Box, Burner
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24WPL 4456028
24WPL 3191239
24Element, Surface (1000/1800W – RR)
24WPL 4456020
244455364 Whirlpool Oven Support Bracket
24WPL 3192737
24WPL 4456065
24Wire (14 Ga. 200 c Brown)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24242831 Whirlpool Oven Wire
2416515 Whirlpool Clip
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Yellow)
24Hardware Asm.
24Bracket, Support (2)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823692 Whirlpool Dual Radiant Element
24W10823699 Whirlpool Right Front Surface Element
241
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24WP3400015 Whirlpool Screw
