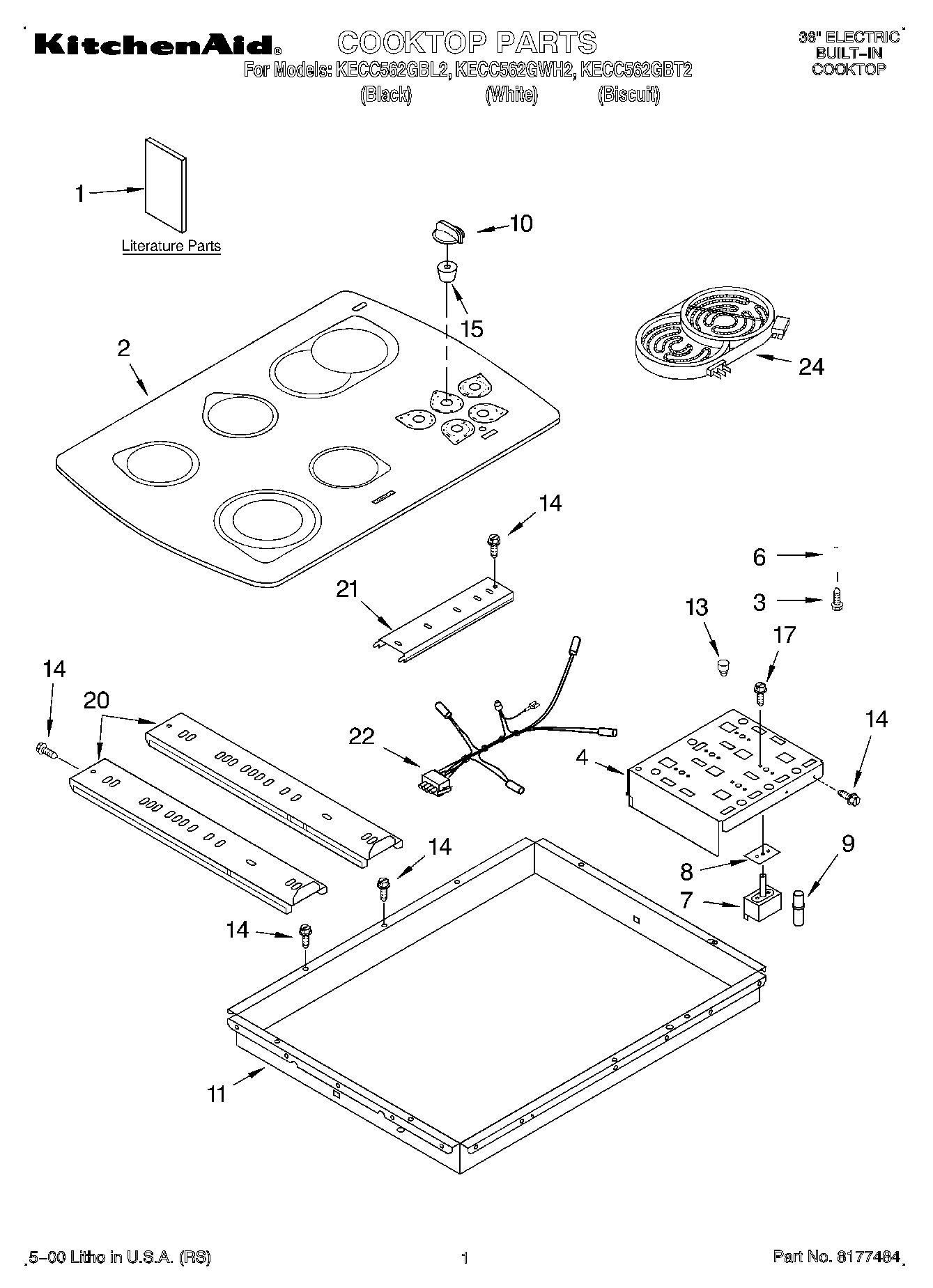

KECC562GBT2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
4	3183956 Whirlpool Oven Seal Switch
4	Bracket, Switch
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	WP9750372FF Whirlpool Knob
10	WP9750372FC Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	Element, Surface (1000/1800W – RR)
24	WPL 3192737
24	WPL 3191239
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	Conduit Assy.
24	Wire, 25“ Roll (White 14 GA.)
24	4455364 Whirlpool Oven Support Bracket
24	Wire, 25` Roll (Red 14 Ga.)
24	Wire, 25` Roll (Black 14 Ga.)
24	WP3400015 Whirlpool Screw
24	W10823699 Whirlpool Right Front Surface Element
24	16515 Whirlpool Clip
24	Wire (14 Ga. 200 c Brown)
24	18 Ga. 80~c Rating (Red)
24	Wire (12 Ga. 150 c Black)
24	W10823692 Whirlpool Dual Radiant Element
24	Wire (14 Ga. 150 c Yellow)
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
24	Bracket, Support (2)
24	Hardware Asm.
24	Wire (14 Ga. 150 c Orange)
24	1
24	Wire (14 Ga. 150 c Green)
24	Wire (14 Ga. 150 c Brown)
24	242831 Whirlpool Oven Wire
24	WPL 4455274
