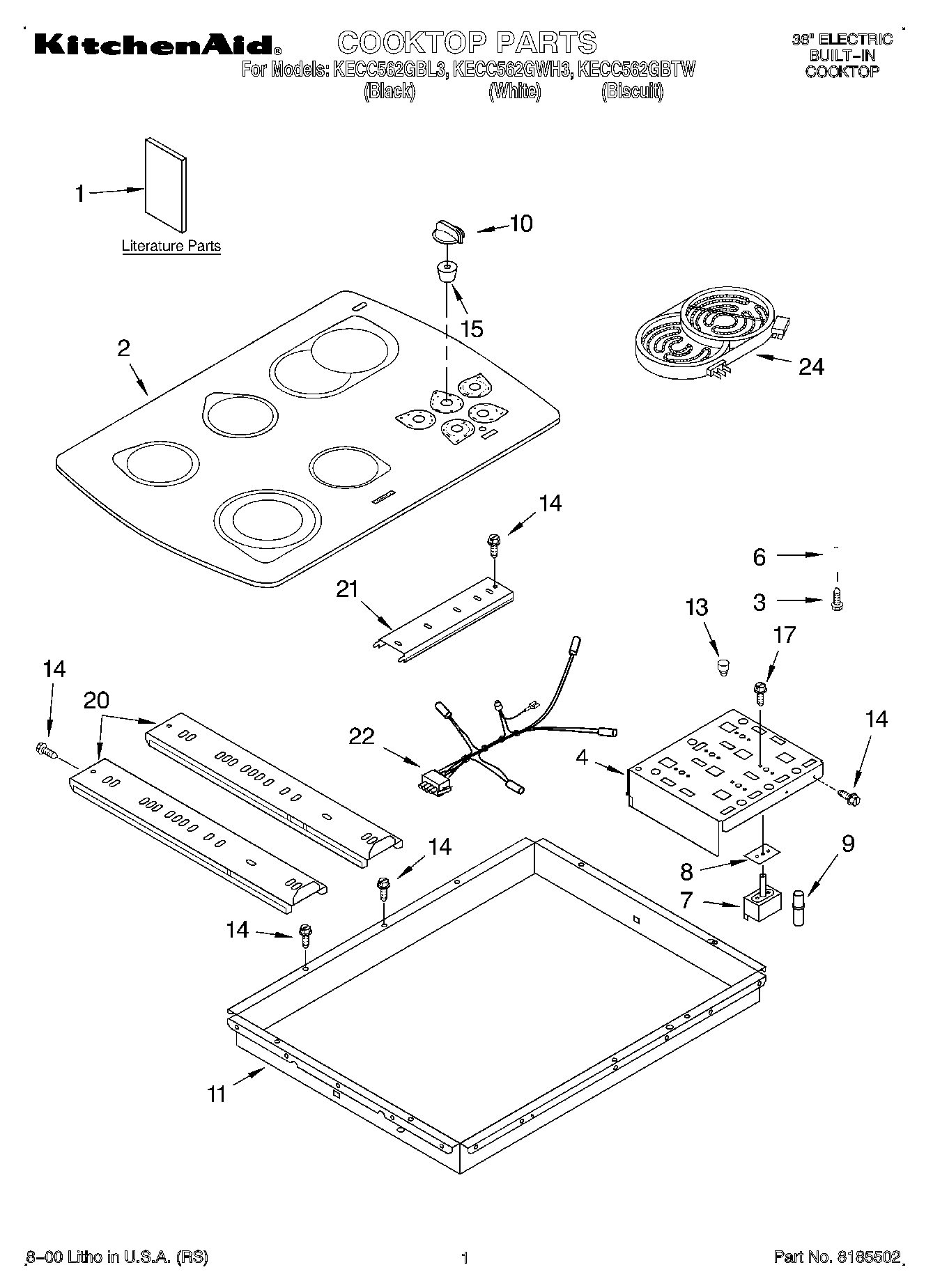

KECC562GBT3 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (White)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
4Bracket, Switch
43183956 Whirlpool Oven Seal Switch
6Spring, Locator
6WP486754 Whirlpool Compactor Screw
7WP3191049 Infinite Switch Left Rear Right Front
78203534 Whirlpool Oven Top Burner Infinite Switch
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24WPL 3191239
24W10823699 Whirlpool Right Front Surface Element
24WPL 3192737
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24Wire, 25“ Roll (White 14 GA.)
24Conduit Assy.
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24WPL 4455274
24WP3400015 Whirlpool Screw
2416515 Whirlpool Clip
24242831 Whirlpool Oven Wire
24Element, Surface (1000/1800W – RR)
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24W10823692 Whirlpool Dual Radiant Element
24Wire (14 Ga. 150 c Yellow)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24Bracket, Support (2)
24Hardware Asm.
24Wire (14 Ga. 150 c Orange)
241
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
244455364 Whirlpool Oven Support Bracket
