KECC563HBL0 01 – SECTION

KECC563HBL0 01 – SECTION

Written by

in

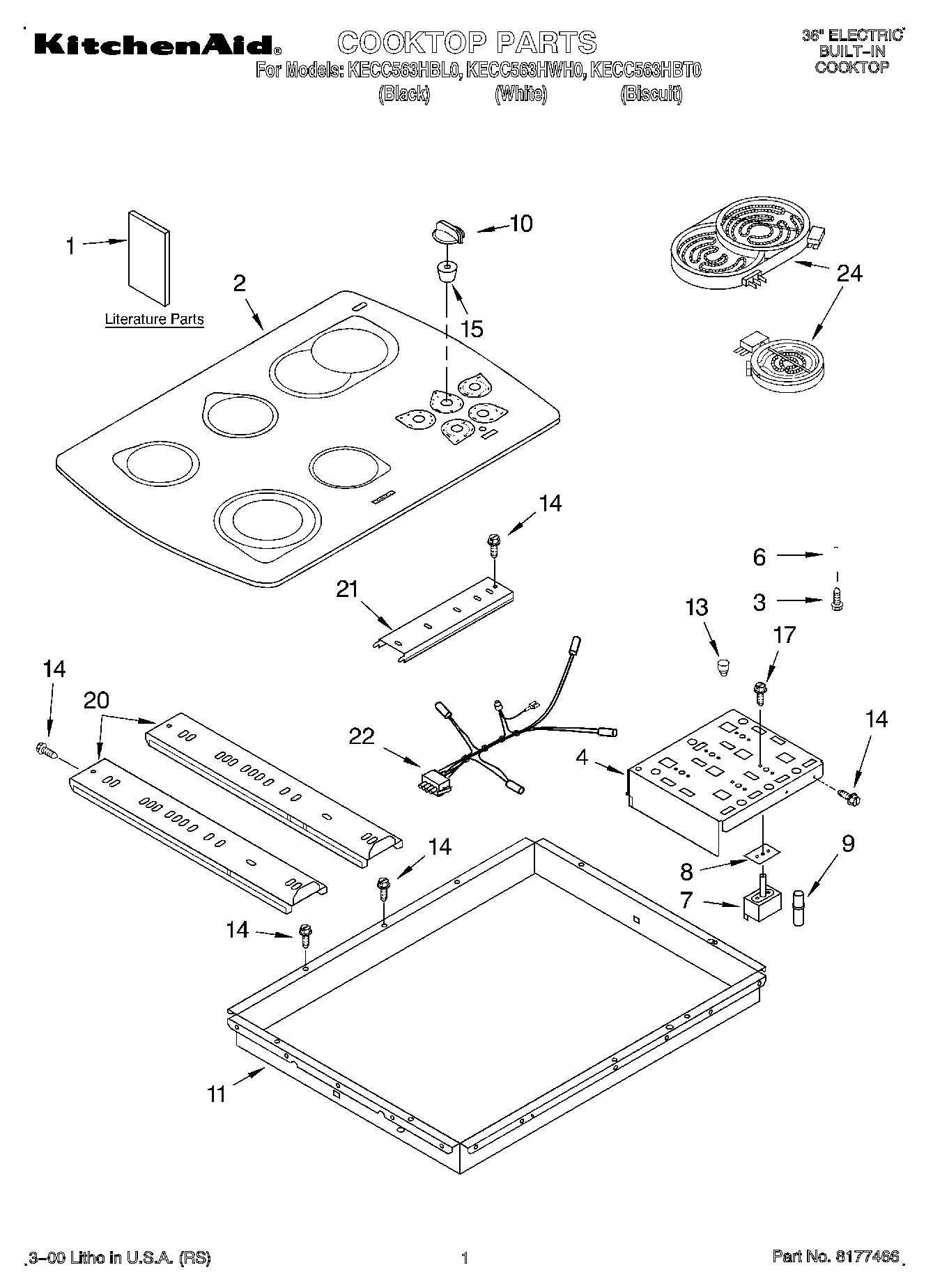

KECC563HBL0 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1WPL LIT3192800
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
2Cooktop, Glass (Honeycomb)
4Bracket, Switch
6WP486754 Whirlpool Compactor Screw
6Spring, Locator
7WP3191049 Infinite Switch Left Rear Right Front
7Switch, Infinite (Warm Zone)
78203534 Whirlpool Oven Top Burner Infinite Switch
8W10491984 Whirlpool Switch Seal
93193012 Whirlpool Oven Indicator Light
10WP9750372FC Whirlpool Knob
10Knobs, Control (4) (Almond)
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24Element, Surface (1500W – LR)
24WPL 8284574
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24WP3400015 Whirlpool Screw
24WPL 8272570
24Conduit
24Element, Sur
241
24Element, Surface (1200W – RF)
24WPL 3192737
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Yellow)
24Wire (12 Ga. 150 c Black)
2418 Ga. 80~c Rating (Red)
24Wire (14 Ga. 200 c Brown)
24242831 Whirlpool Oven Wire
2416515 Whirlpool Clip
24W10823692 Whirlpool Dual Radiant Element
24Hardware Asm.
24Wire (14 Ga. 150 c Orange)
24Element, Surface (1000/1800W – RR)
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
244455364 Whirlpool Oven Support Bracket
24Wire (14 Ga. 150 c Brown)
