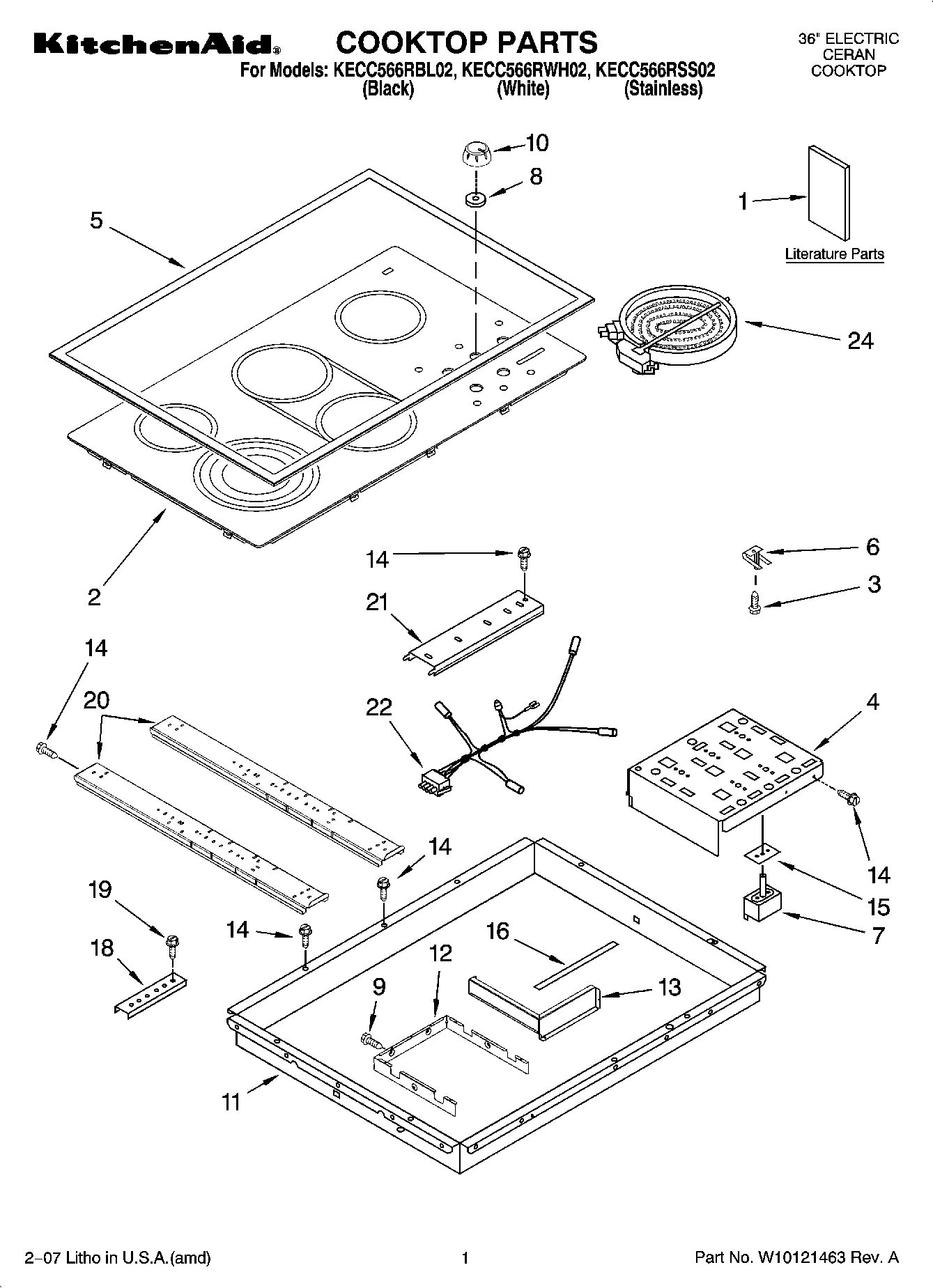

KECC566RBL02 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC566RBL02 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC566RBL02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI84198A9
WPL ARI84196A1
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL ARI84195A8
WPL 4456028
Clip, Harnes
GROMMET, FLEXIBLE
Conduit, Harness
8286418 Whirlpool Wire Harness
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Green)
W10491985 Whirlpool Screw
WP3400015 Whirlpool Screw
WPL ARI84197A1
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
CLIP, SPRING (FOR BRIDGE)
W10491984 Whirlpool Switch Seal
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Safe Cooking Tips (French)
1Installation Instructions (Undercounter Oven)
1Energuide Label
1Use & Care Guide
1Wiring Diagram
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
2Cooktop, Glass (White)
2W10739033 Whirlpool Cooktop Assembly
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch
5Frame, Cooktop (Stainless Only)
69759094 Whirlpool Spring
7WP8286070 Whirlpool Infinite Switch Left Front
7WP3191049 Infinite Switch Left Rear Right Front
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191050 Whirlpool Infinite Switch
88285469 Whirlpool Oven Seal Switch
108286096WH Whirlpool Knob
10WP8286096BL Whirlpool Knob
11Box, Burner
12Shield, Heat
13Shield, Heat Control
14WP3196557 Whirlpool Screw
153183956 Whirlpool Oven Seal Switch
16WPL 3191839
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823699 Whirlpool Right Front Surface Element
24W10823695 Whirlpool Surface Element
24Element, Surface (2500/1800/900W LF)
