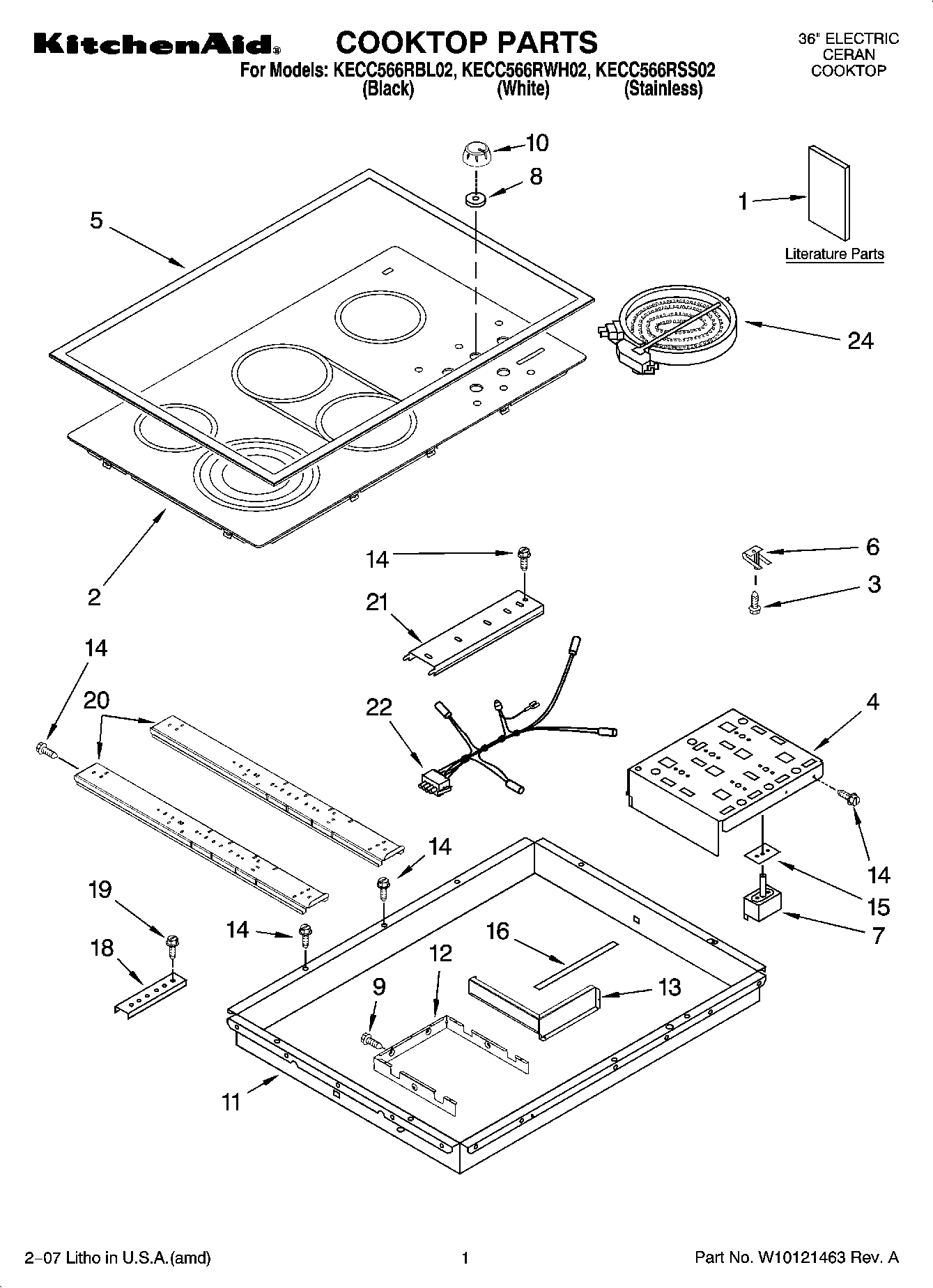

KECC566RSS02 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in
KECC566RSS02 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
8286418 Whirlpool Wire Harness
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL ARI84214A8
WPL 4456028
WPL ARI84213A4
WPL ARI84212A3
Clip, Harnes
GROMMET, FLEXIBLE
Conduit, Harness
WPL ARI84215A8
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
WP3400015 Whirlpool Screw
W10491985 Whirlpool Screw
Wire (14 Ga. 150 c Green)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W10491984 Whirlpool Switch Seal
CLIP, SPRING (FOR BRIDGE)
Wire, 25` Roll (Black 14 Ga.)
1
Use & Care Guide
1
Installation Instructions (Undercounter Oven)
1
Wiring Diagram
1
Energuide Label
1
Safe Cooking Tips
1
Safe Cooking Tips (French)
1
INSTALLATION INSTRUCTIONS
2
W10739033 Whirlpool Cooktop Assembly
2
Cooktop, Glass (White)
3
WP486754 Whirlpool Compactor Screw
4
Bracket, Switch
5
Frame, Cooktop (Stainless Only)
6
9759094 Whirlpool Spring
7
WP3191049 Infinite Switch Left Rear Right Front
7
WP4456027 Whirlpool Infinite Switch Right Rear
7
WP8286070 Whirlpool Infinite Switch Left Front
7
WP3191050 Whirlpool Infinite Switch
8
8285469 Whirlpool Oven Seal Switch
10
8286096WH Whirlpool Knob
10
WP8286096BL Whirlpool Knob
11
Box, Burner
12
Shield, Heat
13
Shield, Heat Control
14
WP3196557 Whirlpool Screw
15
3183956 Whirlpool Oven Seal Switch
16
WPL 3191839
18
8186533 Whirlpool Hardware
19
WP3400093 Whirlpool Screw
20
Rail, Element (3)
21
Rail, Element (1)
22
Lamp, Hot Surface Indicator
24
W10823699 Whirlpool Right Front Surface Element
24
W10823711 Whirlpool Surface Element Left Front and Right Rear
24
W10823695 Whirlpool Surface Element
24
Element, Surface (2500/1800/900W LF)
←
