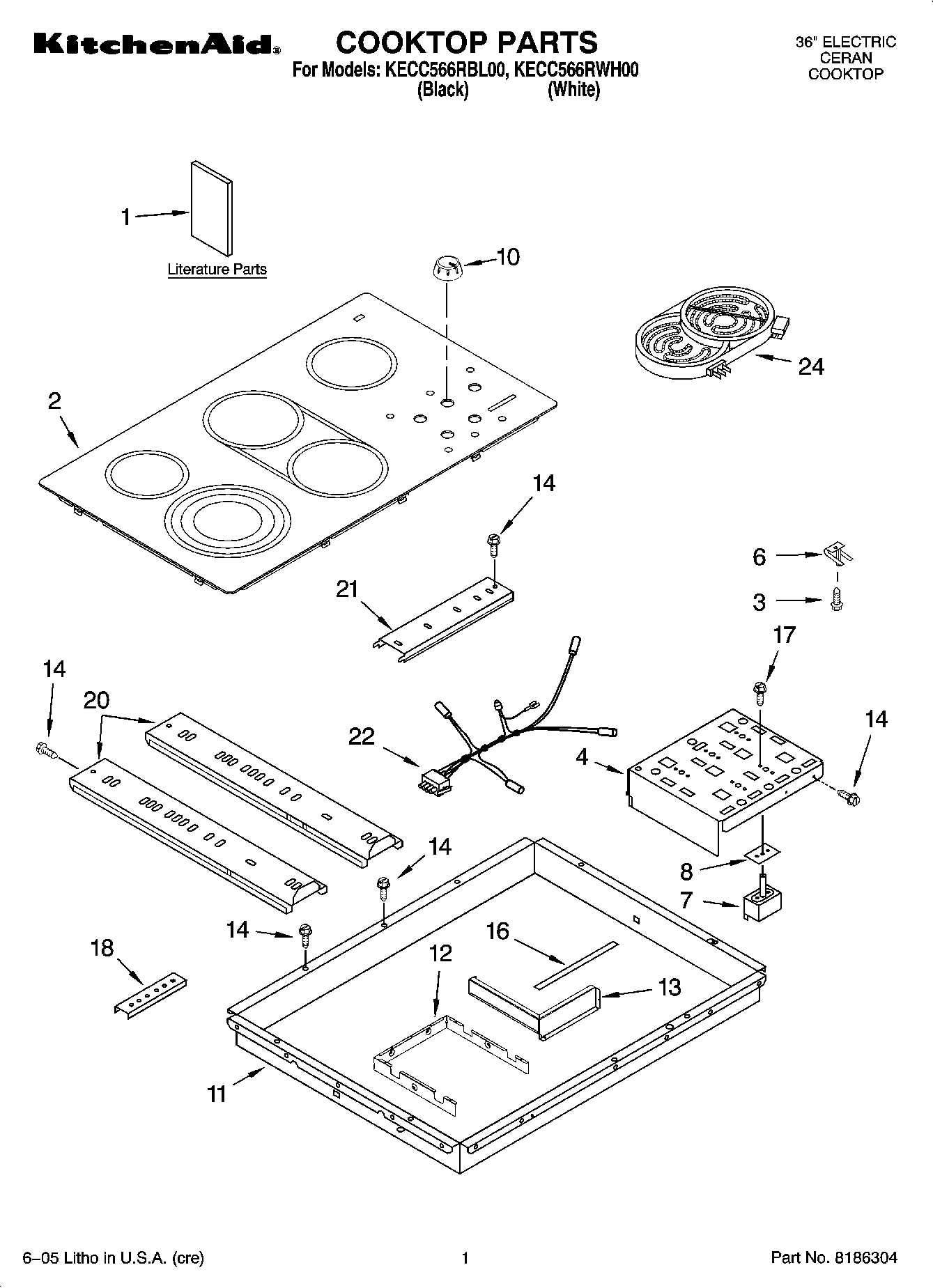

KECC566RWH00 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Clip, Harnes
WPL ARI84228A4
Bracket, Support (2)
WPL 3191239
Hardware Asm.
WPL 4456028
WPL 3192737
WPL 8285978
Wire (14 Ga. 150 c Green)
W10491985 Whirlpool Screw
WPL ARI84227A1
WPL ARI84226A1
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
4455364 Whirlpool Oven Support Bracket
WPL 9760687
WPL ARI84225A1
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Wiring Diagram
1Safe Cooking Tips
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Energuide Label
2Cooktop, Glass (White)
2W10739033 Whirlpool Cooktop Assembly
4Bracket, Switch
43183956 Whirlpool Oven Seal Switch
69759094 Whirlpool Spring
6WP486754 Whirlpool Compactor Screw
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP8286070 Whirlpool Infinite Switch Left Front
8W10491984 Whirlpool Switch Seal
108286096WH Whirlpool Knob
10WP8286096BL Whirlpool Knob
11Box, Burner
12Shield, Heat
13Shield, Heat Control
14WP3196557 Whirlpool Screw
16WPL 3191839
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
18WP3400093 Whirlpool Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24Element, Surface (2500/1800/900W LF)
24W10823695 Whirlpool Surface Element
