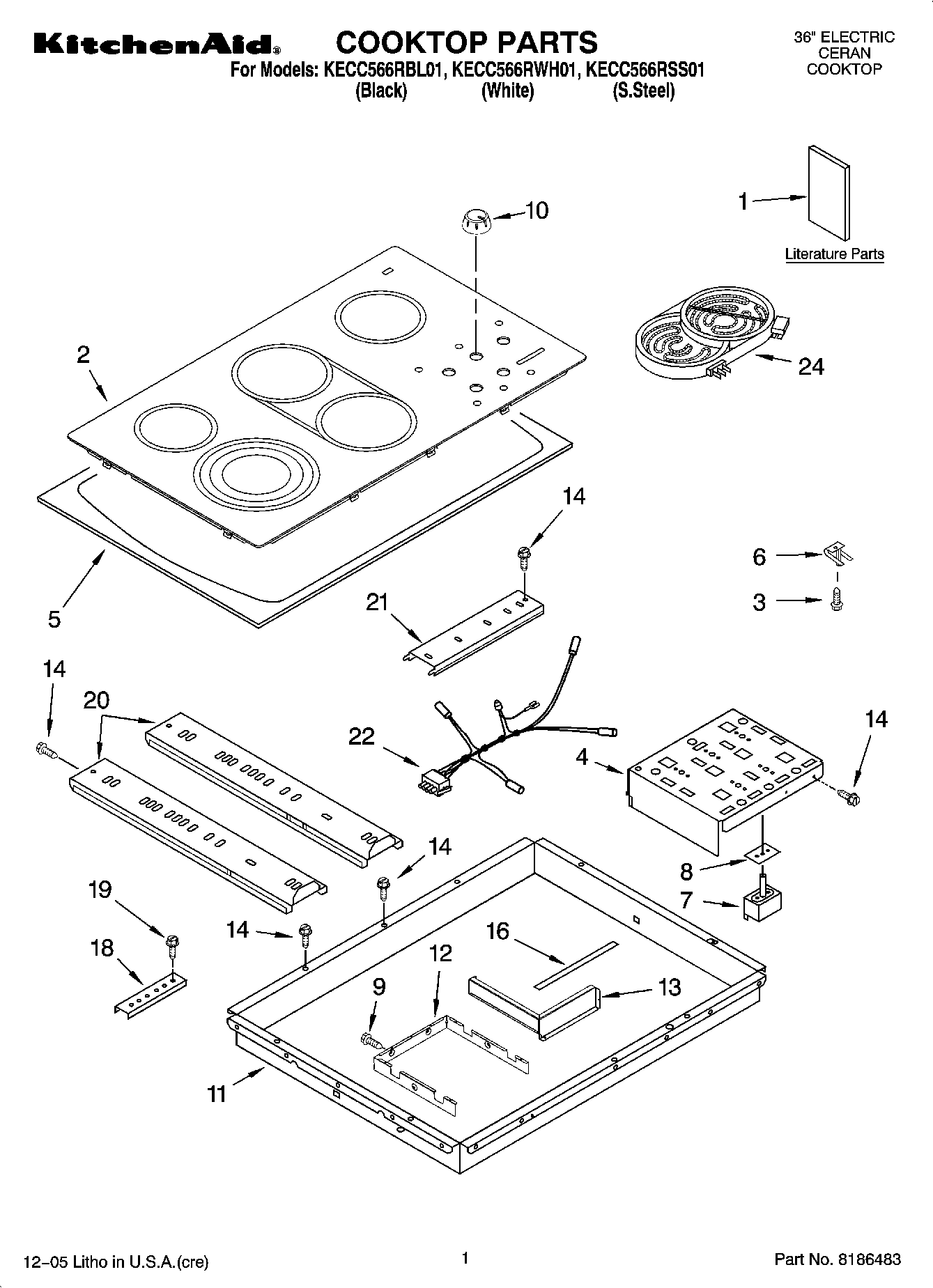

KECC566RWH01 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC566RWH01 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC566RWH01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI84230A8
Conduit, Harness
8286418 Whirlpool Wire Harness
WPL 3191239
WPL 4456028
WPL 3192737
4455364 Whirlpool Oven Support Bracket
Bracket, Support (2)
Clip, Harnes
WPL ARI84231A7
Wire (14 Ga. 150 c Yellow)
W10491985 Whirlpool Screw
WPL ARI84233A1
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI84232A4
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W10491984 Whirlpool Switch Seal
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Hardware Asm.
1Energuide Label
1Wiring Diagram
1Use & Care Guide
1COOKTOP PARTS
1Safe Cooking Tips
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips (French)
2Cooktop, Glass (White)
2W10739033 Whirlpool Cooktop Assembly
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch
5Frame, Cooktop (Stainless Only)
69759094 Whirlpool Spring
7WP8286070 Whirlpool Infinite Switch Left Front
7WP3191050 Whirlpool Infinite Switch
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
88285469 Whirlpool Oven Seal Switch
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
108286096WH Whirlpool Knob
11Box, Burner
12Shield, Heat
13Shield, Heat Control
14WP3196557 Whirlpool Screw
16WPL 3191839
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24Element, Surface (2500/1800/900W LF)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823695 Whirlpool Surface Element
