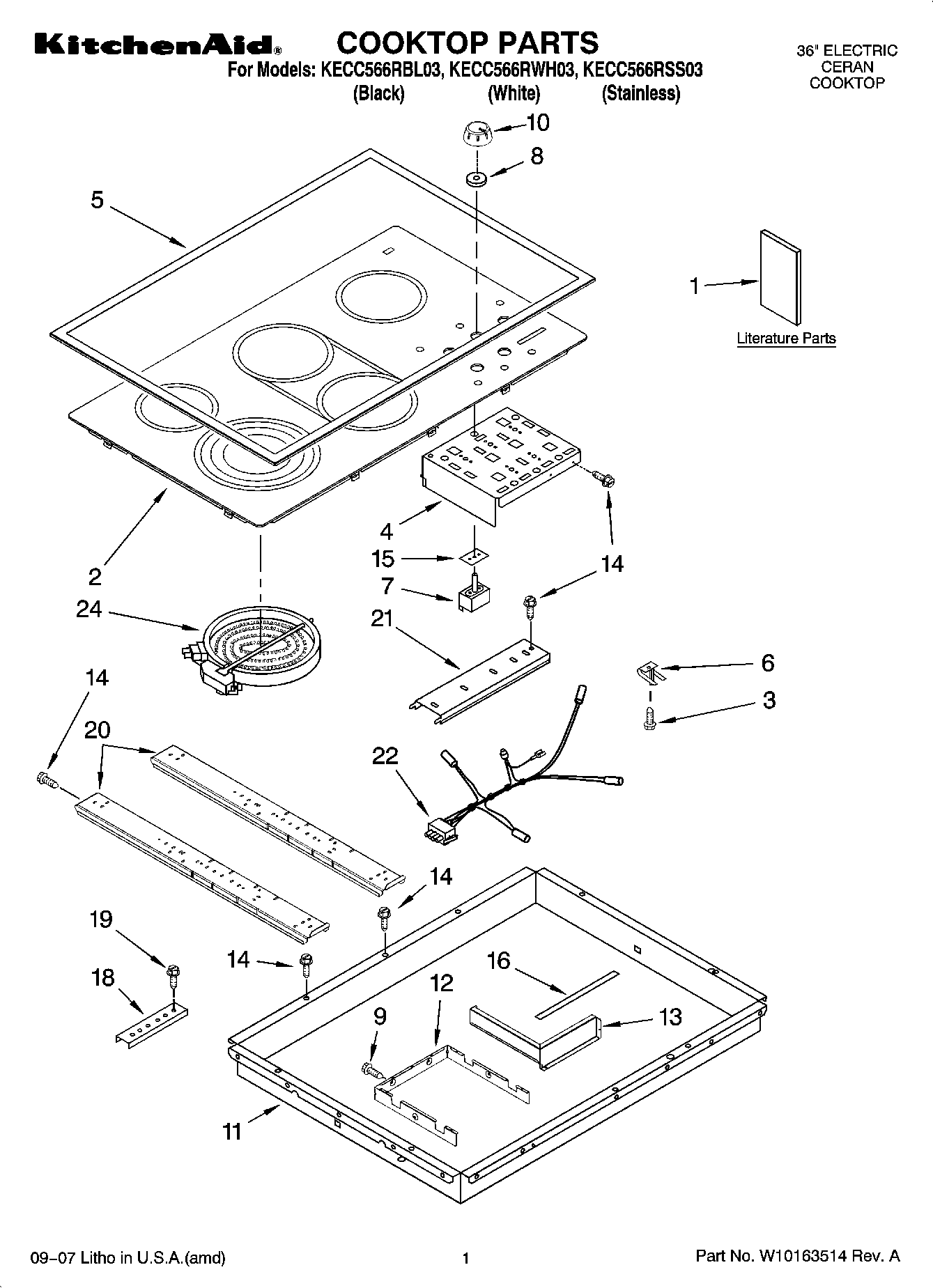

KECC566RWH03 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC566RWH03 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC566RWH03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
WPL ARI84241A6
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
Conduit, Harness
WPL ARI84240A5
WPL ARI84239A4
WPL 4456028
WPL ARI84238A6
Clip, Harnes
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
W10491985 Whirlpool Screw
WP3400015 Whirlpool Screw
WPL ARI84242A2
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
GROMMET, FLEXIBLE
8286418 Whirlpool Wire Harness
W10491984 Whirlpool Switch Seal
CLIP, SPRING (FOR BRIDGE)
1Installation Instructions (Undercounter Oven)
1Energuide Label
1Wiring Diagram
1Use & Care Guide
1Safe Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips
2W10739033 Whirlpool Cooktop Assembly
2Cooktop, Glass (White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch
5Frame, Cooktop (Stainless Only)
69759094 Whirlpool Spring
7WP8286070 Whirlpool Infinite Switch Left Front
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
88285469 Whirlpool Oven Seal Switch
108286096WH Whirlpool Knob
10WP8286096BL Whirlpool Knob
10Knob, Control (4) (Cashmere Metal)
11Box, Burner
12Shield, Heat
13Shield, Heat Control
14WP3196557 Whirlpool Screw
153183956 Whirlpool Oven Seal Switch
16WPL 3191839
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823695 Whirlpool Surface Element
24Element, Surface (2500/1800/900W LF)
