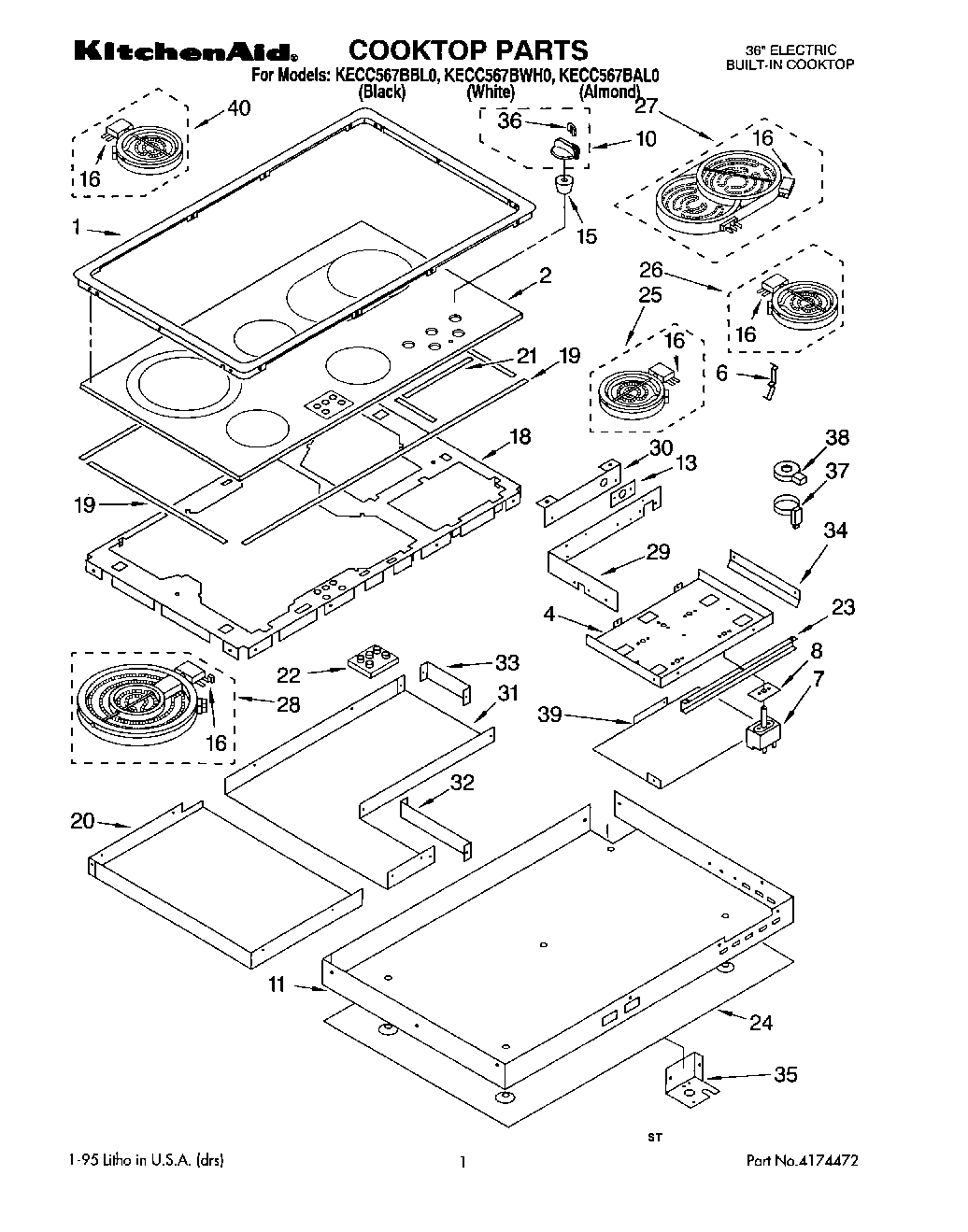

KECC567BAL0 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Almond)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Almond)
2	Cooktop, Glass (Black)
6	Spring Locator (8)
6	WP486754 Whirlpool Compactor Screw
7	W10900107 Whirlpool Oven Surface Element Switch
7	WP8203529 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
10	WP9750372FF Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
10	Knobs, Control (4) (Almond)
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/4454439 Element)
16	Switch, Limiter (Use W/3188781 Element)
16	Switch, Limiter (Use W/3188157 Element)
16	Switch, Limiter (Use W/3187119 Element)
16	Switch, Limiter (Use W/3187188 Element)
18	Plate, Backer
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Large (2))
20	Shield, Heat
21	Seal, Silicone (Controls (2))
21	Seal, Silicone (11 in.)
22	Vent, Lower Trim (Screw (2))
22	Lamp, Hot Surface Indicator
23	Bracket, Stiffening
24	Shield, Heat (Exterior)
25	1200W Left Front
26	Element, Surface (1400W Left Rear)
27	2200/1400W Right Rear
28	W10823694 Whirlpool Surface Element
29	WPL 3188876
30	WPL 3189175
31	WPL 3188309
32	WPL 3188158
33	WPL 3189159
34	WPL 3189036
35	WPL 3189273
36	WPL 9751377
36	WPL 9751376
37	WPL 3188760
37	WP486579 Whirlpool Air Conditioner Screw
38	WPL 3188761
39	Screw (6)
39	WPL 3188786
40	Element 1500W Right Front
