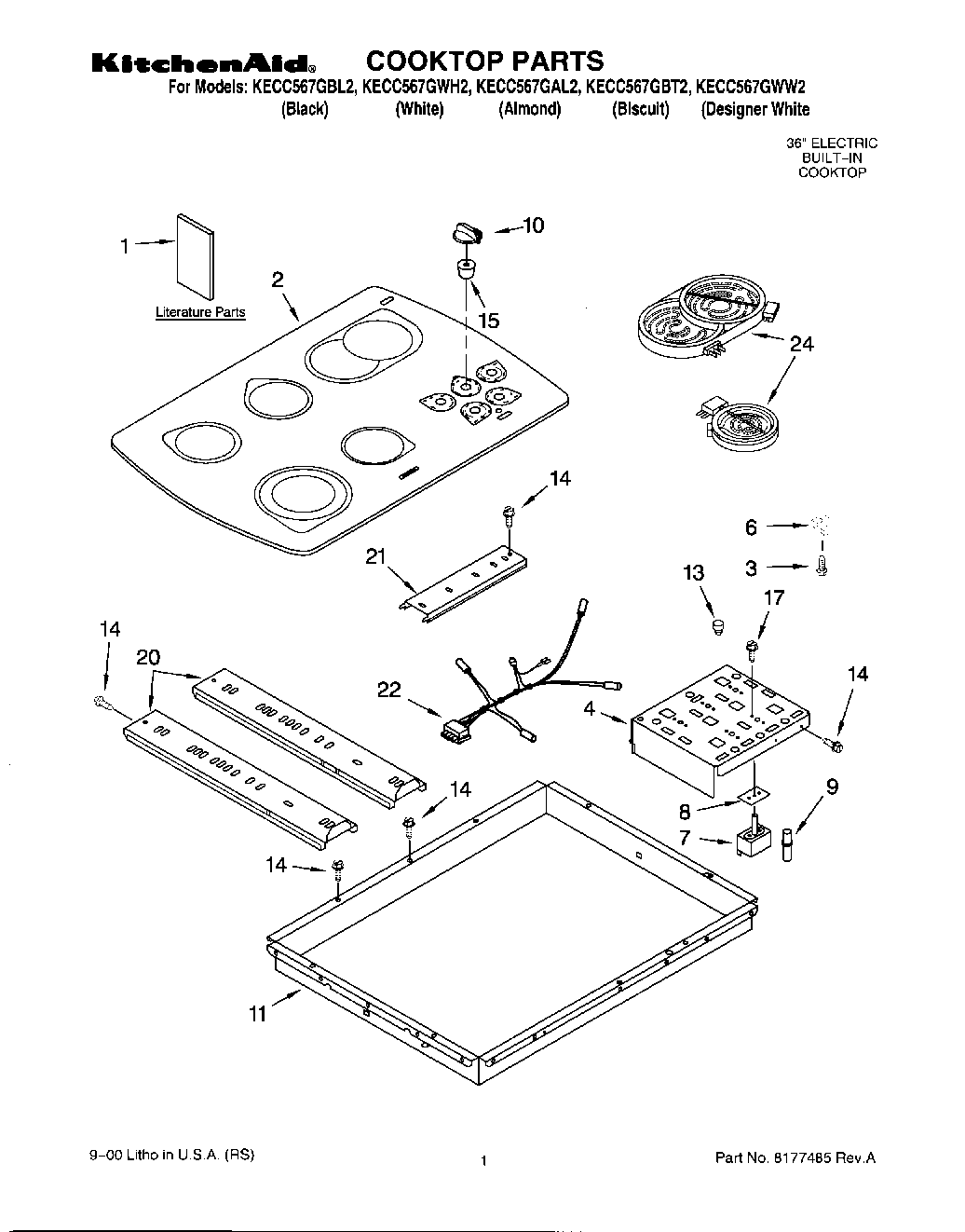

KECC567GBT2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
2	Cooktop, Glass (Honeycomb)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer White)
4	Bracket, Switch
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	WP9750372FW Whirlpool Knob Assembly
10	WP9750372FC Whirlpool Knob
10	WP9750372FF Whirlpool Knob
10	Knobs, Control (4) (Almond)
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	WPL 3192737
24	4455364 Whirlpool Oven Support Bracket
24	Wire, 25“ Roll (White 14 GA.)
24	Element, Surface (1500W – LR)
24	Wire, 25` Roll (Red 14 Ga.)
24	Wire (12 Ga. 150 c Black)
24	Conduit Assy.
24	Wiring Harness Surface Unit
24	Wire, 25` Roll (Black 14 Ga.)
24	WP3400015 Whirlpool Screw
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	16515 Whirlpool Clip
24	18 Ga. 80~c Rating (Red)
24	Wire (14 Ga. 200 c Brown)
24	Wire (14 Ga. 150 c Yellow)
24	W10823699 Whirlpool Right Front Surface Element
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Green)
24	Wire (14 Ga. 150 c Brown)
24	W10823692 Whirlpool Dual Radiant Element
24	Bracket, Support (2)
24	Hardware Asm.
24	3183956 Whirlpool Oven Seal Switch
24	242831 Whirlpool Oven Wire
24	1
24	Element, Surface (1000/1800W – RR)
24	Element, Surface (1200W – RF)
