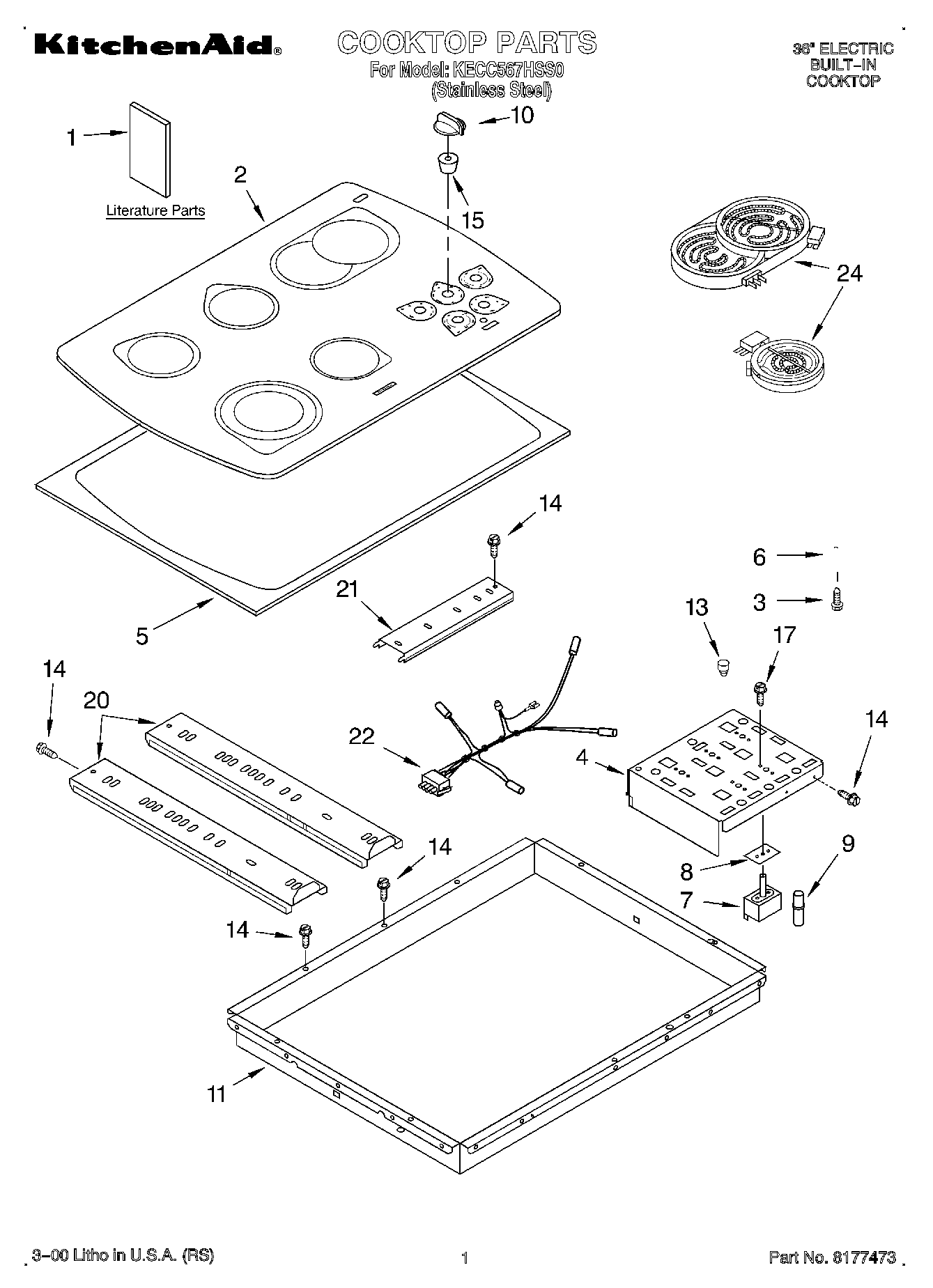

KECC567HSS0 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	WPL LIT3192800
1	Literature Parts (Installation Instructions)
2	Cooktop, Glass
4	Bracket, Switch
5	Frame, Cooktop
6	Spring, Locator
6	WP486754 Whirlpool Compactor Screw
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	W10491984 Whirlpool Switch Seal
9	3193012 Whirlpool Oven Indicator Light
10	WP9750372FF Whirlpool Knob
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	Wire, 25“ Roll (White 14 GA.)
24	Wiring Harness Surface Unit
24	Element, Surface (1200W – RF)
24	WPL 3192737
24	Element, Surface (1000/1800W – RR)
24	Conduit Assy.
24	Element, Surface (1500W – LR)
24	Wire (14 Ga. 200 c Brown)
24	Wire, 25` Roll (Black 14 Ga.)
24	Wire, 25` Roll (Red 14 Ga.)
24	3183956 Whirlpool Oven Seal Switch
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	16515 Whirlpool Clip
24	242831 Whirlpool Oven Wire
24	Wire (14 Ga. 150 c Brown)
24	Wire (14 Ga. 150 c Green)
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Yellow)
24	Wire (12 Ga. 150 c Black)
24	18 Ga. 80~c Rating (Red)
24	1
24	W10823699 Whirlpool Right Front Surface Element
24	W10823692 Whirlpool Dual Radiant Element
24	Hardware Asm.
24	WP3400015 Whirlpool Screw
