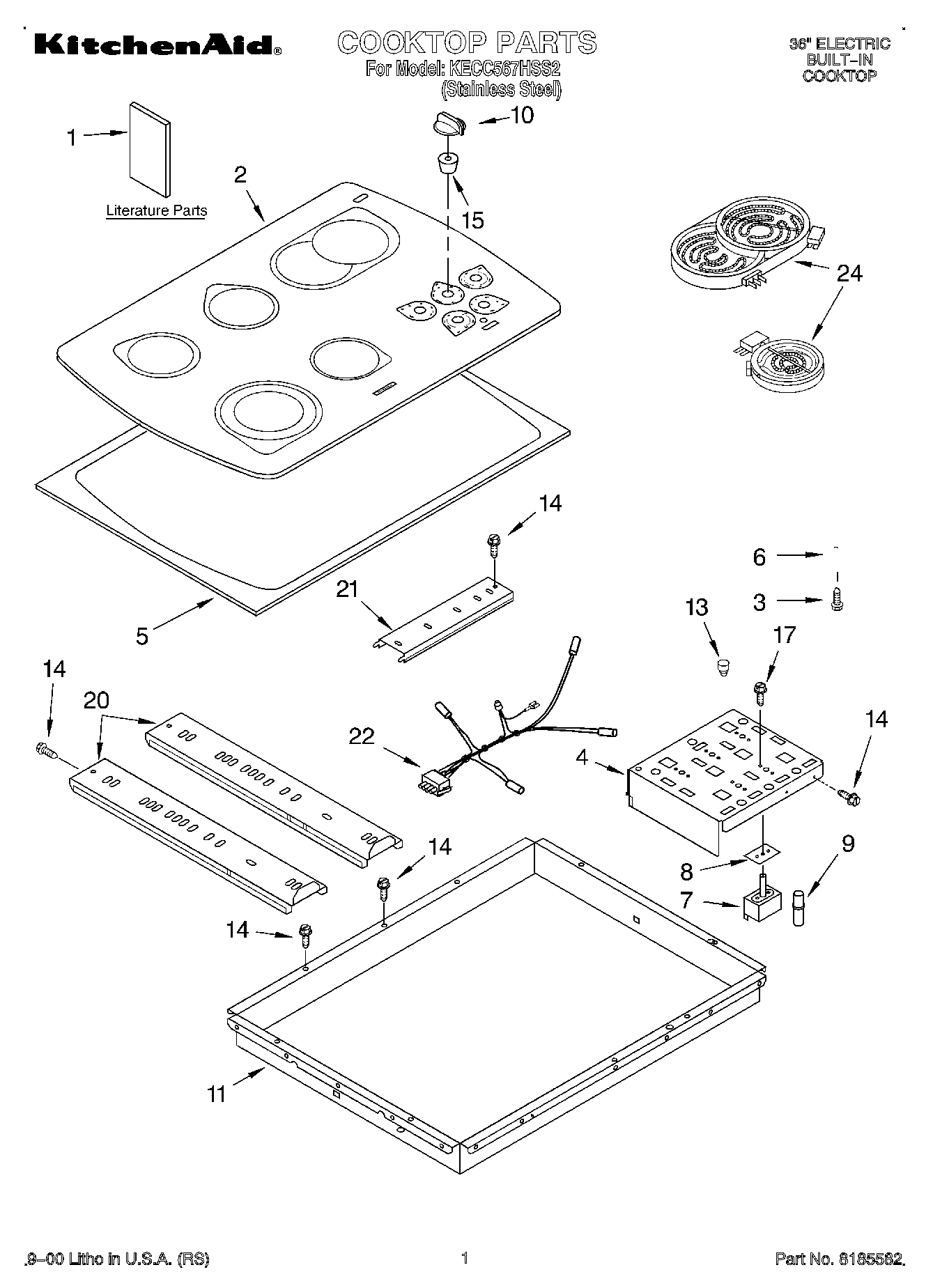

KECC567HSS2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
2	Cooktop, Assembly
4	Bracket, Switch
5	Frame, Cooktop
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	W10491984 Whirlpool Switch Seal
9	3193012 Whirlpool Oven Indicator Light
10	WP9750372FF Whirlpool Knob
11	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	Wire, 25“ Roll (White 14 GA.)
24	WPL 3192737
24	Element, Surface (1200W – RF)
24	Wire, 25` Roll (Red 14 Ga.)
24	Element, Surface (1500W – LR)
24	18 Ga. 80~c Rating (Red)
24	Wire, 25` Roll (Black 14 Ga.)
24	3183956 Whirlpool Oven Seal Switch
24	Wiring Harness Surface Unit
24	WP3400015 Whirlpool Screw
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	16515 Whirlpool Clip
24	Element, Surface (1000/1800W – RR)
24	Wire (12 Ga. 150 c Black)
24	1
24	W10823699 Whirlpool Right Front Surface Element
24	Wire (14 Ga. 150 c Yellow)
24	Wire (14 Ga. 150 c Orange)
24	W10823692 Whirlpool Dual Radiant Element
24	Wire (14 Ga. 150 c Green)
24	Bracket, Support (2)
24	Hardware Asm.
24	Wire (14 Ga. 150 c Brown)
24	242831 Whirlpool Oven Wire
24	Wire (14 Ga. 200 c Brown)
24	Conduit Assy.
