KECC567KBL02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
Wire, 25“ Roll (White 14 GA.)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Hardware Asm.
WPL 4456762
WPL 4456513
Bracket, Support (2)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL 3192737
WP3400015 Whirlpool Screw
WPL ARI84247A8
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WPL ARI84246A1
WPL ARI84245A4
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI84244A1
16515 Whirlpool Clip
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Energuide Label)

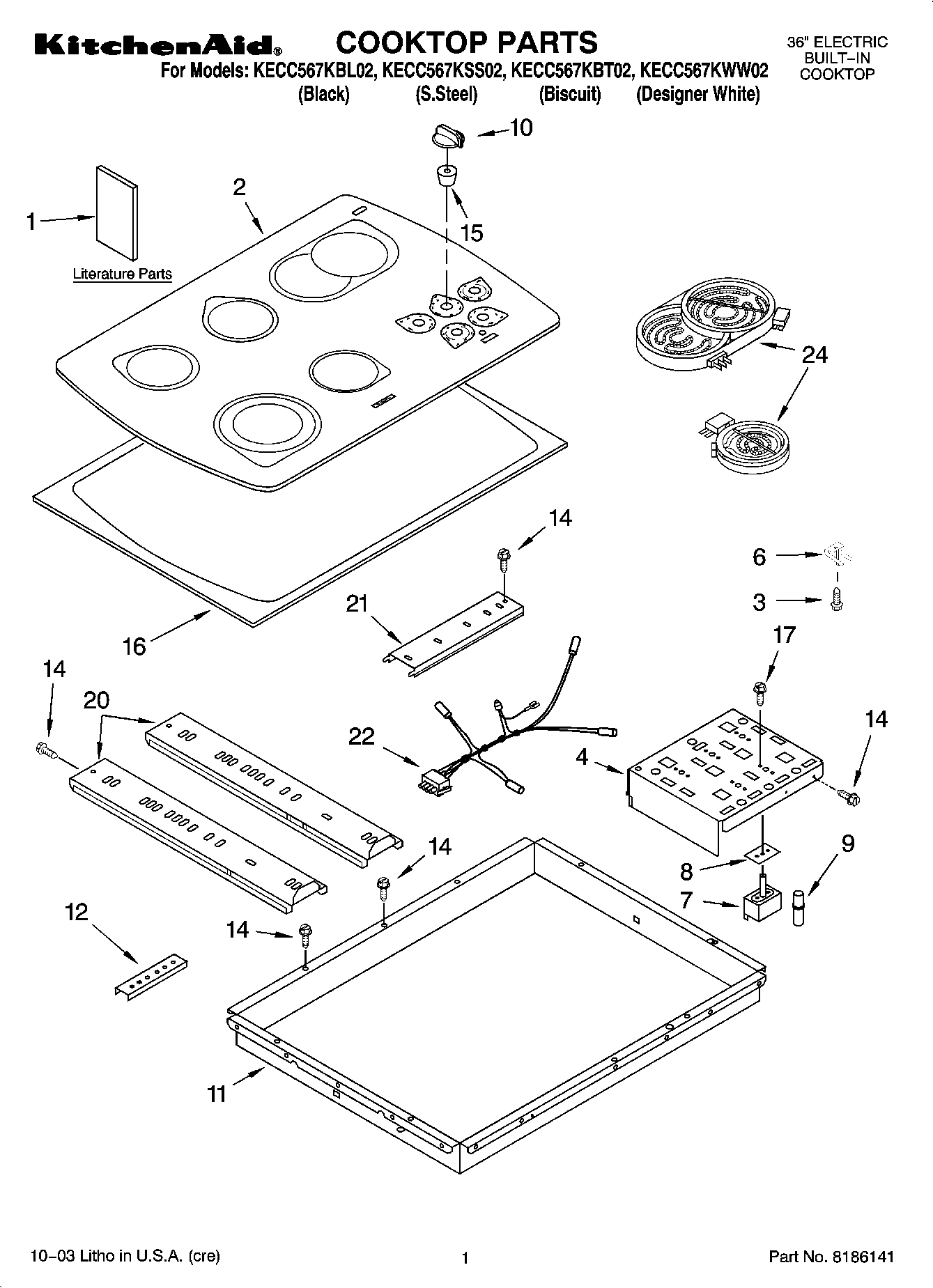

1COOKTOP PARTS
2Cooktop, Glass (Black)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (S.Steel)
4Bracket, Switch
6Spring, Locator
6WP486754 Whirlpool Compactor Screw
7WPL 4456028
7WP3191049 Infinite Switch Left Rear Right Front
7WP4456027 Whirlpool Infinite Switch Right Rear
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FF Whirlpool Knob
10WP9750372FC Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
12WP3400093 Whirlpool Screw
128186533 Whirlpool Hardware
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16Frame, Cooktop
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
243183956 Whirlpool Oven Seal Switch
24W10823692 Whirlpool Dual Radiant Element
24Element, Surface (1200W – RF)
24W10823699 Whirlpool Right Front Surface Element
24W10823730 Whirlpool Surface Element
