KECC567KBL03 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Bracket, Support (2)
	WPL 4456762
	WPL 4456513
	WPL ARI84251A9
	WPL 3192737
	Wire (14 Ga. 150 c Brown)
	Hardware Asm.
	WP3400015 Whirlpool Screw
	WPL ARI84250A6
	WPL ARI84249A8
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
1	Use & Care Guide
1	Installation Instructions
1	Safe Cooking Tips (French)
1	Wiring Diagram

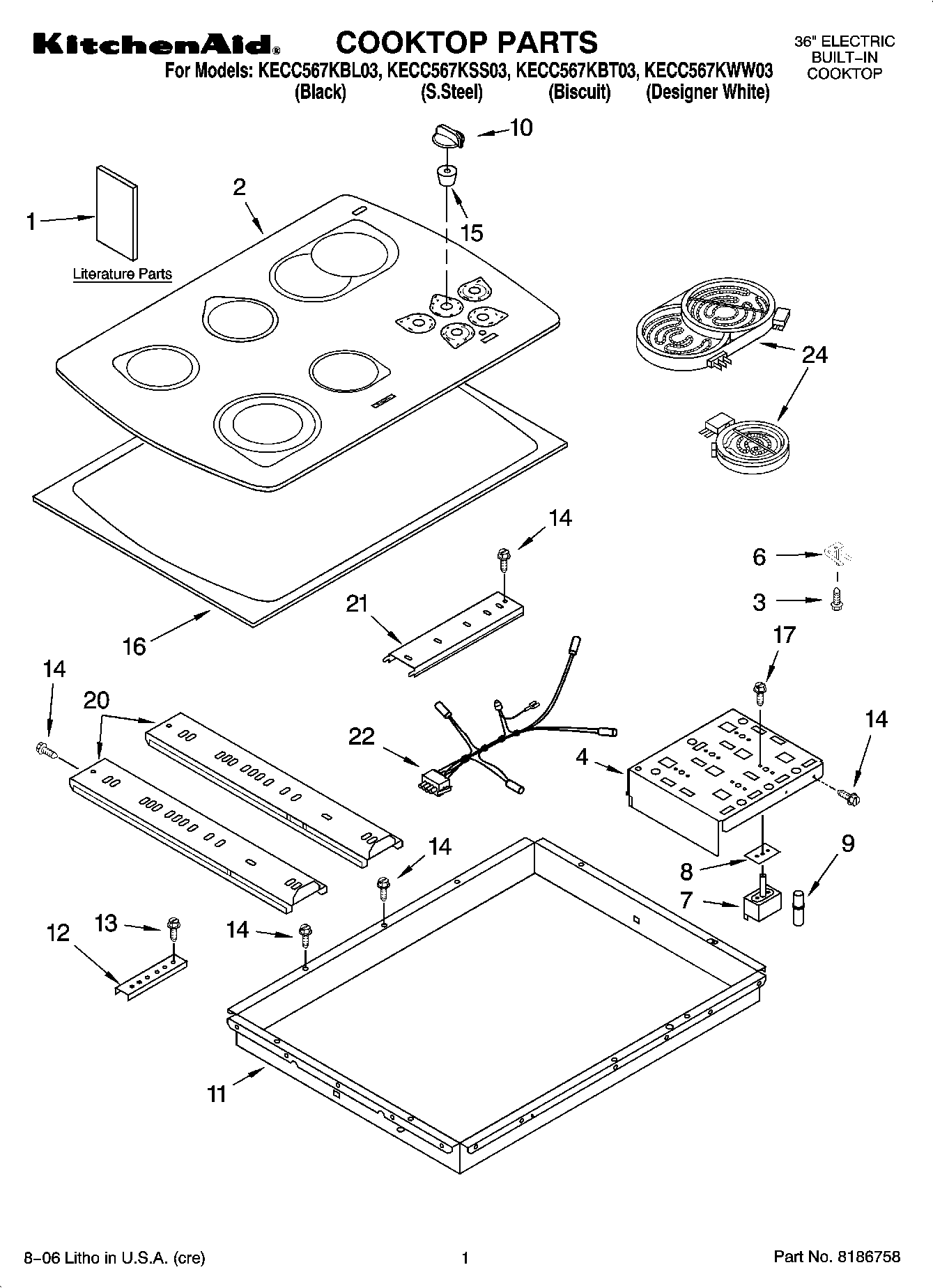

1	COOKTOP PARTS
2	Cooktop, Glass (S.Steel)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WPL 4456028
7	WP4456027 Whirlpool Infinite Switch Right Rear
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	WP9750372FW Whirlpool Knob Assembly
10	WP9750372FF Whirlpool Knob
10	WP9750372FC Whirlpool Knob
11	Box, Burner
12	8186533 Whirlpool Hardware
13	WP3400093 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	Frame, Cooktop
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (3)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	3183956 Whirlpool Oven Seal Switch
24	W10823699 Whirlpool Right Front Surface Element
24	W10823692 Whirlpool Dual Radiant Element
24	Element, Surface (1200W – RF)
24	W10823730 Whirlpool Surface Element
