KECC567KWW03 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Bracket, Support (2)
WPL ARI84276A2
WPL 4456762
WPL 4456513
WPL ARI84277A9
WPL 3192737
WPL ARI84278A6
Wire (14 Ga. 150 c Brown)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Hardware Asm.
16515 Whirlpool Clip
242831 Whirlpool Oven Wire
1Safe Cooking Tips (French)

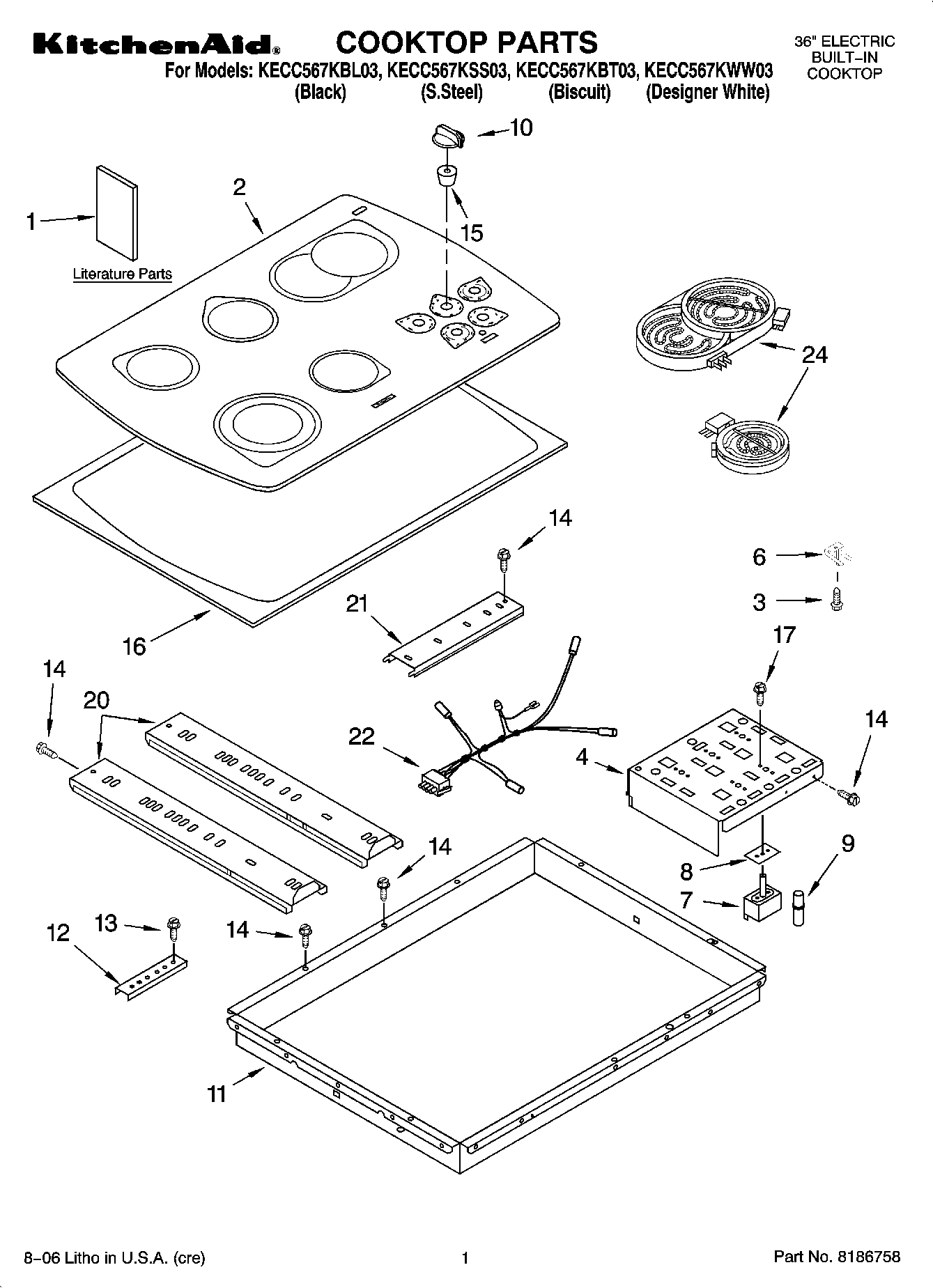

1COOKTOP PARTS
1Wiring Diagram
1Use & Care Guide
1Installation Instructions
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (Black)
2Cooktop, Glass (S.Steel)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch
69759094 Whirlpool Spring
7WP3191049 Infinite Switch Left Rear Right Front
7WPL 4456028
7WP4456027 Whirlpool Infinite Switch Right Rear
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
10WP9750372FC Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
13WP3400093 Whirlpool Screw
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16Frame, Cooktop
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
243183956 Whirlpool Oven Seal Switch
24W10823699 Whirlpool Right Front Surface Element
24W10823692 Whirlpool Dual Radiant Element
24Element, Surface (1200W – RF)
24W10823730 Whirlpool Surface Element
