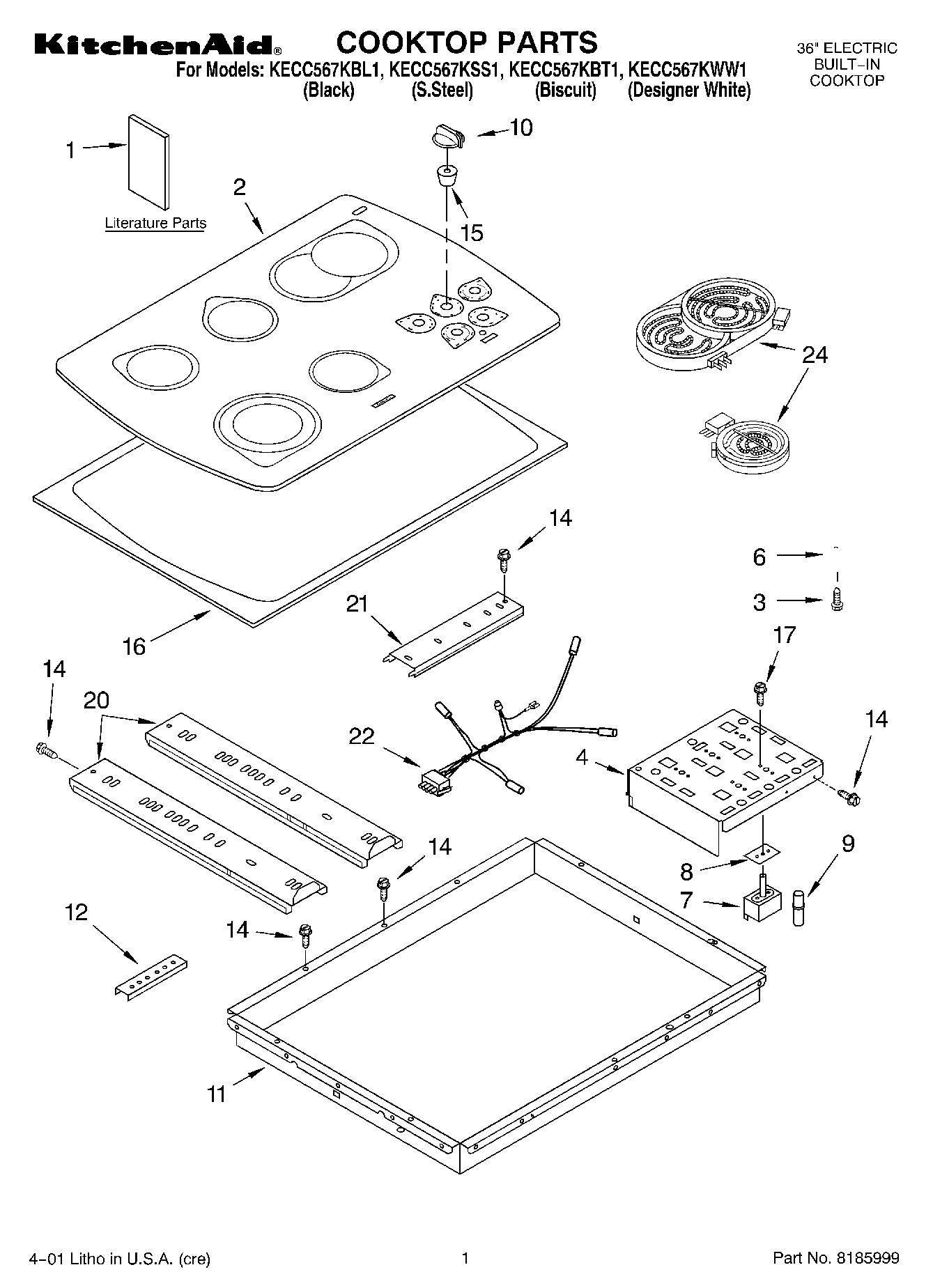

KECC567KWW1 01 – SECTION

KECC567KWW1 01 – SECTION

Written by

in

KECC567KWW1 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Energuide Label)
1Literature Parts (Use & Care Guide)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
2Cooktop, Glass (S.Steel)
4Bracket, Switch
6WP486754 Whirlpool Compactor Screw
6Spring, Locator
7WPL 4456028
7WP3191049 Infinite Switch Left Rear Right Front
7WP4456027 Whirlpool Infinite Switch Right Rear
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
10WP9750372FC Whirlpool Knob
11Box, Burner
12WP3400093 Whirlpool Screw
128186533 Whirlpool Hardware
12Nut, Tinnerman (2)
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
16Frame, Cooktop
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24WPL 3192737
24Wire, 25` Roll (Red 14 Ga.)
24WPL 4456018
24Element, Surface (1200W – RF)
24WPL 4456065
24Element, Surface (1000/1800W – RR)
2418 Ga. 80~c Rating (Red)
24Wire, 25` Roll (Black 14 Ga.)
24Wire, 25“ Roll (White 14 GA.)
243183956 Whirlpool Oven Seal Switch
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
2416515 Whirlpool Clip
24242831 Whirlpool Oven Wire
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Yellow)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 200 c Brown)
241
24W10823699 Whirlpool Right Front Surface Element
24W10823692 Whirlpool Dual Radiant Element
24Bracket, Support (2)
24Hardware Asm.
24WP3400015 Whirlpool Screw
