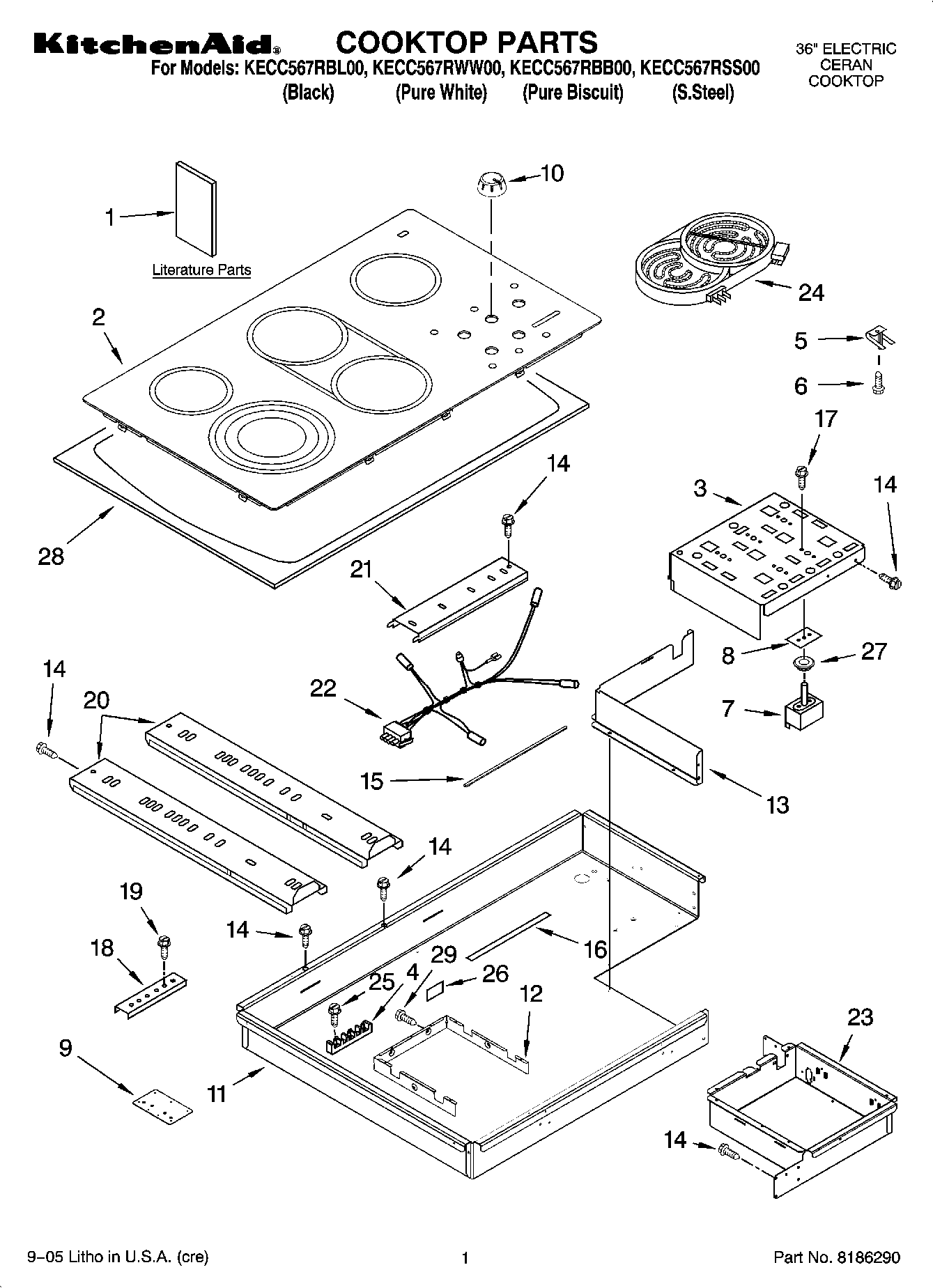

KECC567RBB00 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC567RBB00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC567RBB00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
8286468 Whirlpool Oven Wire Harness
WPL ARI84282A7
WPL 4456028
Harness, Conduit
Thermostat
Hardware Asm.
Clip, Harnes
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL ARI84279A1
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI84280A8
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI84281A6
W10491985 Whirlpool Screw
242831 Whirlpool Oven Wire
Wire, 25` Roll (Black 14 Ga.)
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Energuide Label
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Wiring Diagram
2Cooktop, Glass (S.Steel)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3Bracket, Switch
4WP8203546 Whirlpool Terminal Block
59759094 Whirlpool Spring
6WP486754 Whirlpool Compactor Screw
7Switch, Infinite (Triple)
7Switch, Infinite (Dual)
7Switch, Infinite (Single (2))
8W10491984 Whirlpool Switch Seal
9Bracket, Bottom
108286096WH Whirlpool Knob
10WP8286096BL Whirlpool Knob
10Knob, Control (4) (Cashmere Metal)
11Box, Burner
12Shield, Heat
13Wall, Inside
14WP3196557 Whirlpool Screw
15Seal, Heat Shield
16Seal, Foam (36“)
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Box, Control
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823699 Whirlpool Right Front Surface Element
24W10823695 Whirlpool Surface Element
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
25WP3196163 Whirlpool Screw
26WP112432 Whirlpool Nut Assembly
278285469 Whirlpool Oven Seal Switch
27Seal, Switch (White)
28Frame, Cooktop (Stainless Only)
