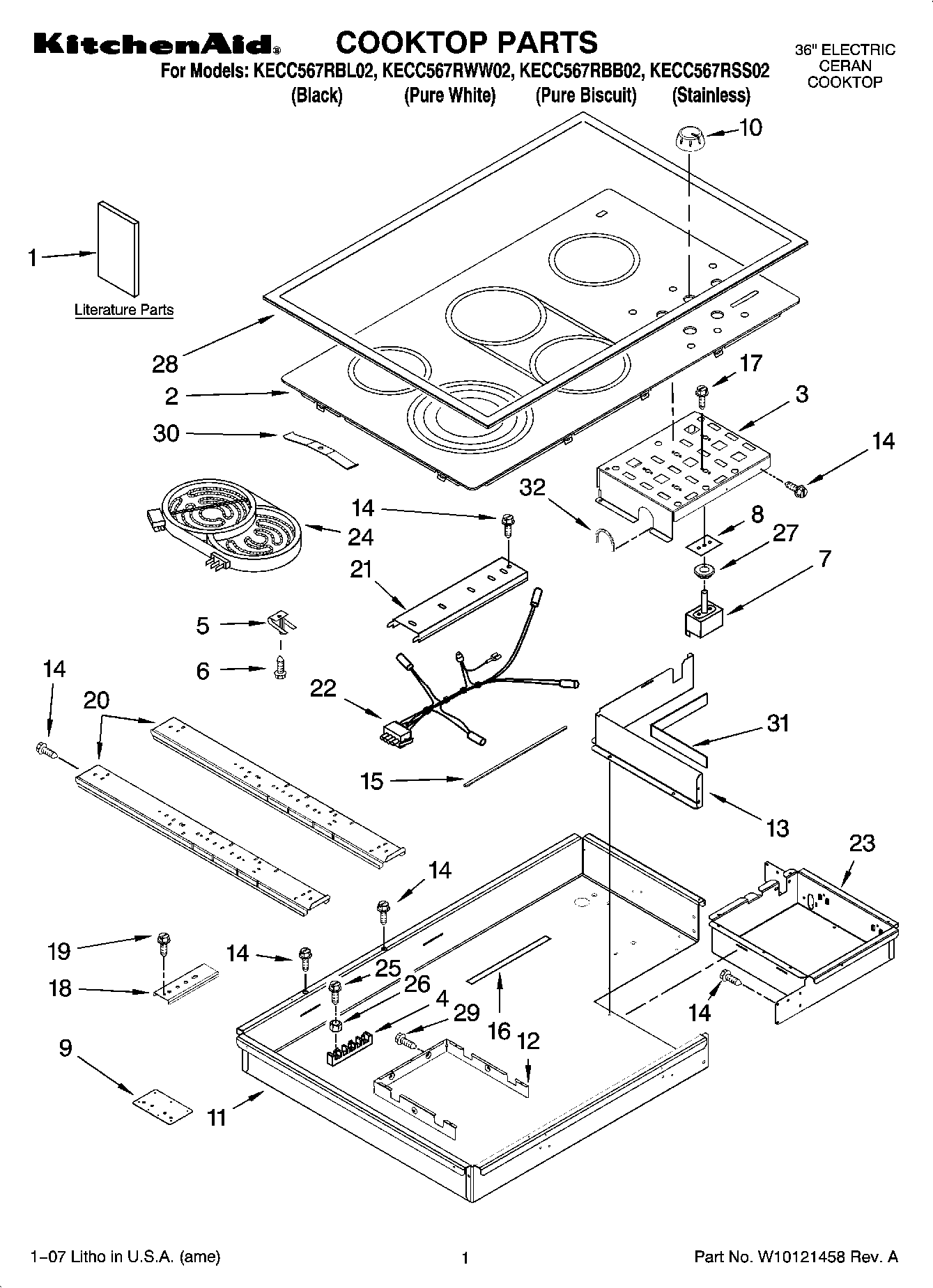

KECC567RBB02 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC567RBB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC567RBB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
8286468 Whirlpool Oven Wire Harness
WPL 4456028
Harness, Conduit
Thermostat
Hardware Asm.
242831 Whirlpool Oven Wire
Clip, Harnes
W10491985 Whirlpool Screw
WPL ARI84291A9
WPL ARI84290A7
WPL ARI84289A8
WPL ARI84288A6
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WP8286642 Whirlpool Tape
W10491984 Whirlpool Switch Seal
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1LITERATURE PARTS
1INSTALLATION INSTRUCTIONS
1Energuide Label
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3Bracket, Switch
4WP8203546 Whirlpool Terminal Block
59759094 Whirlpool Spring
6WP486754 Whirlpool Compactor Screw
7Switch, Infinite (Triple)
7Switch, Infinite (Single (2))
7Switch, Infinite (Dual)
83183956 Whirlpool Oven Seal Switch
9Bracket, Bottom
108286096WH Whirlpool Knob
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
11Box, Burner
12Shield, Heat
13Wall, Inside
14WP3196557 Whirlpool Screw
15Seal, Heat Shield
16Seal, Foam (36“)
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Box, Control
24W10823695 Whirlpool Surface Element
24WP8286187 Whirlpool Dishwasher Left Front Surface Element
24W10823699 Whirlpool Right Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
25WP3196163 Whirlpool Screw
26WP112432 Whirlpool Nut Assembly
27Seal, Switch (White)
278285469 Whirlpool Oven Seal Switch
28Frame, Cooktop (Stainless Only)
30CLIP, SPRING (FOR BRIDGE)
31Inside Wall, Insulation
32GROMMET, FLEXIBLE
