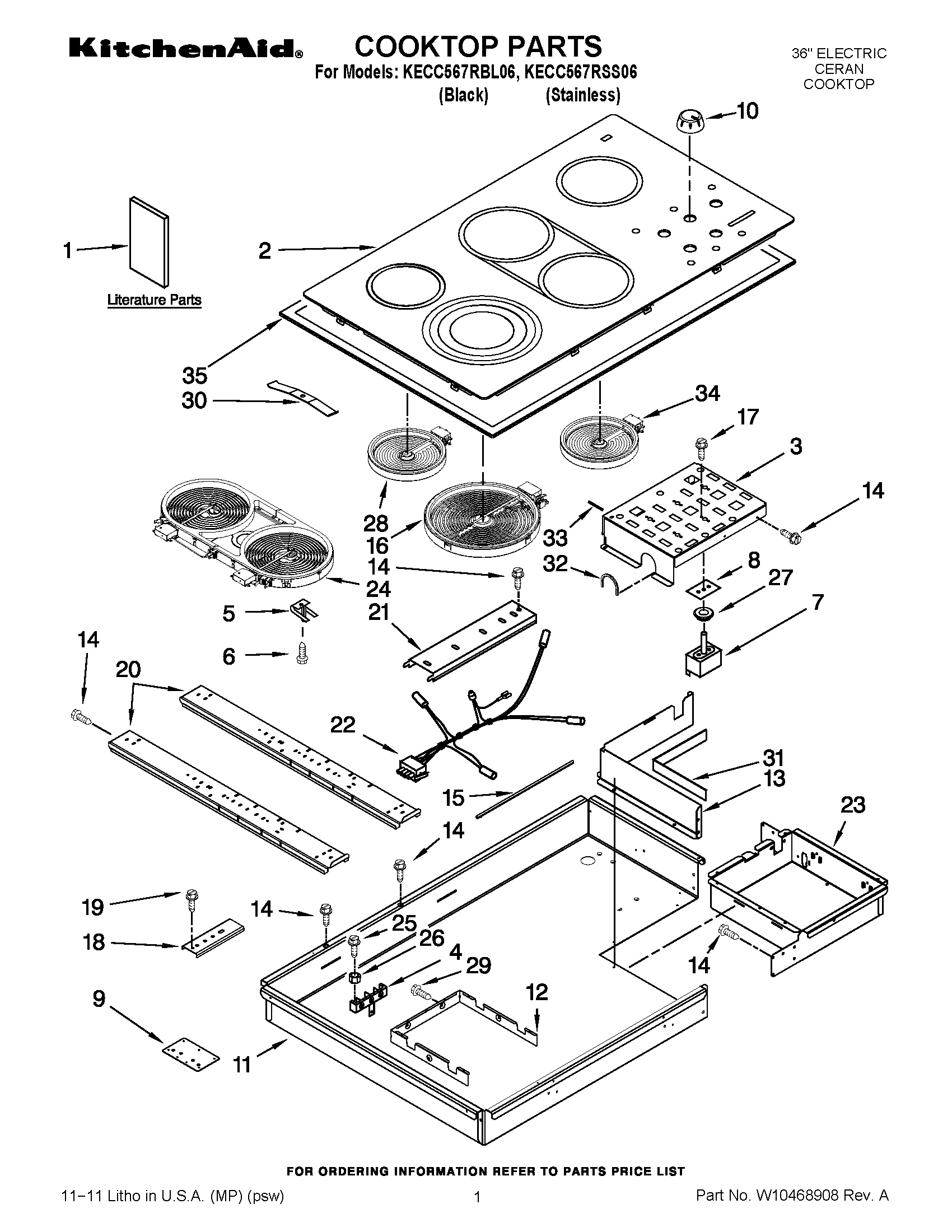

KECC567RBL06 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Energuide Label
1INSTALLATION INSTRUCTIONS
1Installation Instructions (Undercounter Oven)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1WIRING DIAGRAM
2COOKTOP, GLASS (BLACK)
3BRACKET, SWITCH
4BLOCK, TERMINAL
59759094 Whirlpool Spring
6WP486754 Whirlpool Compactor Screw
7Switch, Infinite (Single (2))
7Switch, Infinite (Dual)
7Switch, Infinite (Triple)
83183956 Whirlpool Oven Seal Switch
9Bracket, Bottom
10WP8286096BL Whirlpool Knob
11Box, Burner
12Shield, Heat
13Wall, Inside
14WP3196557 Whirlpool Screw
15Seal, Heat Shield
16WP8286187 Whirlpool Dishwasher Left Front Surface Element
17WPL 7101P30960
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Box, Control
24W10823695 Whirlpool Surface Element
25SCREW
26WP112432 Whirlpool Nut Assembly
278285469 Whirlpool Oven Seal Switch
28W10823711 Whirlpool Surface Element Left Front and Right Rear
29W10491985 Whirlpool Screw
30CLIP, SPRING (FOR BRIDGE)
31Inside Wall, Insulation
32GROMMET, FLEXIBLE
33W10491984 Whirlpool Switch Seal
34W10823699 Whirlpool Right Front Surface Element
35Frame, Cooktop (Stainless Only)
