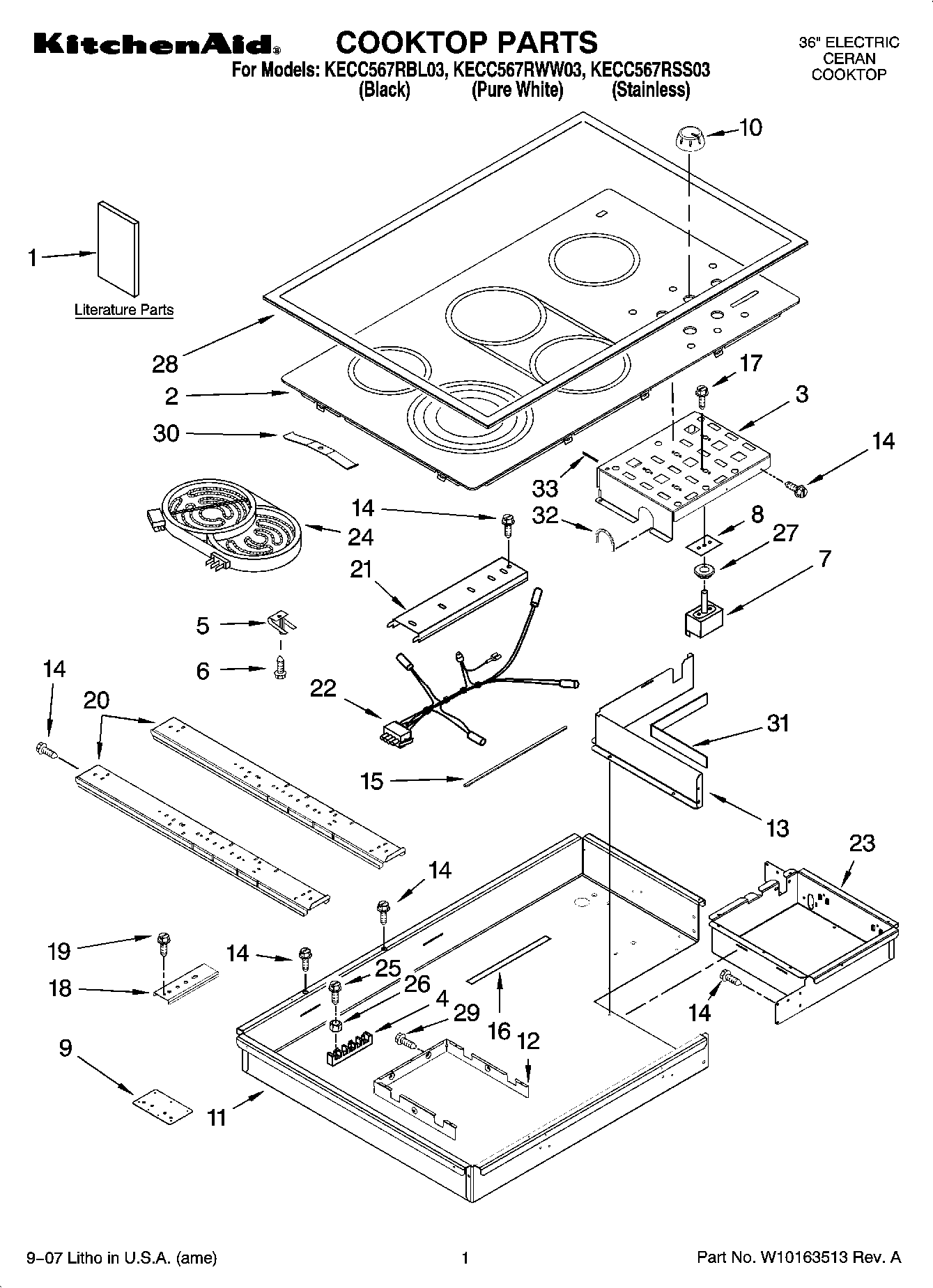

KECC567RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC567RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC567RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	8286468 Whirlpool Oven Wire Harness
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI84333A2
	Harness, Conduit
	Thermostat
	WPL 4456028
	Clip, Harnes
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Red 14 Ga.)
	WPL ARI84331A3
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WP8286642 Whirlpool Tape
	WPL ARI84332A6
	WPL ARI84329A2
	W10491985 Whirlpool Screw
	WPL ARI84330A8
1	INSTALLATION INSTRUCTIONS
1	Wiring Diagram
1	Installation Instructions (Undercounter Oven)
1	Energuide Label
1	Use & Care Guide
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	Bracket, Switch
4	WP8203546 Whirlpool Terminal Block
5	9759094 Whirlpool Spring
6	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Dual)
7	Switch, Infinite (Single (2))
7	Switch, Infinite (Triple)
8	3183956 Whirlpool Oven Seal Switch
9	Bracket, Bottom
10	8286096WH Whirlpool Knob
10	WP8286096BL Whirlpool Knob
10	Knob, Control (4) (Cashmere Metal)
11	Box, Burner
12	Shield, Heat
13	Wall, Inside
14	WP3196557 Whirlpool Screw
15	Seal, Heat Shield
16	Seal, Foam (36“)
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
23	Box, Control
24	W10823699 Whirlpool Right Front Surface Element
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
24	WP8286187 Whirlpool Dishwasher Left Front Surface Element
24	W10823695 Whirlpool Surface Element
25	WP3196163 Whirlpool Screw
26	WP112432 Whirlpool Nut Assembly
27	8285469 Whirlpool Oven Seal Switch
27	Seal, Switch (White)
28	Frame, Cooktop (Stainless Only)
30	CLIP, SPRING (FOR BRIDGE)
31	Inside Wall, Insulation
32	GROMMET, FLEXIBLE
33	W10491984 Whirlpool Switch Seal
