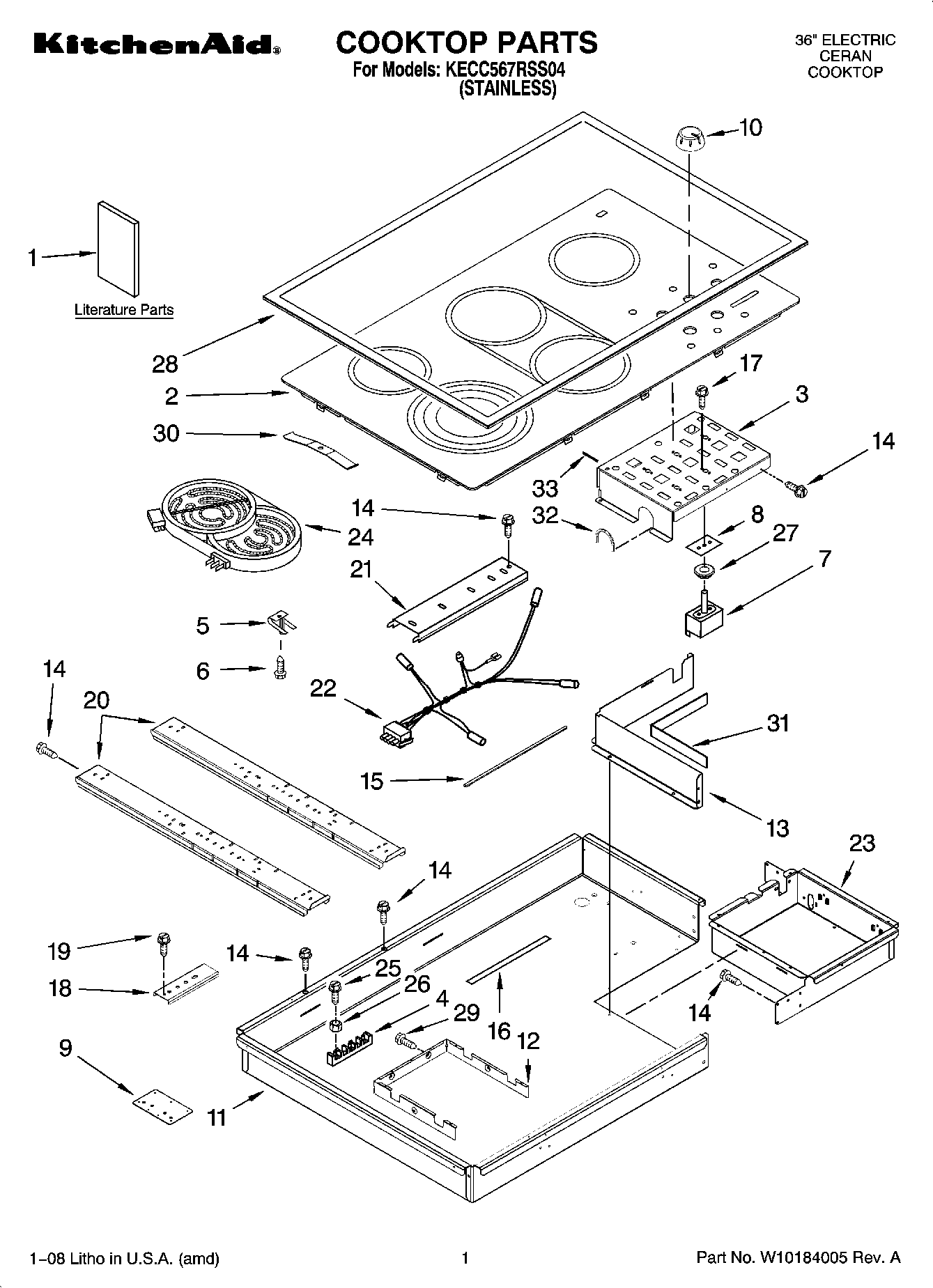

KECC567RSS04 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in
KECC567RSS04 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI84337A8
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI84338A9
Clip, Harnes
Thermostat
Harness, Conduit
8286468 Whirlpool Oven Wire Harness
WPL ARI84334A5
WPL ARI84335A9
WPL ARI84336A4
Wire (14 Ga. 150 c Brown)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
242831 Whirlpool Oven Wire
W10491985 Whirlpool Screw
1
Safer Cooking Tips (French)
1
Wiring Diagram
1
Use & Care Guide
1
INSTALLATION INSTRUCTIONS
1
Installation Instructions (Undercounter Oven)
1
SAFER COOKING TIPS (ENGLISH
2
Cooktop, Glass (Black)
3
Bracket, Switch
4
WP8203546 Whirlpool Terminal Block
5
9759094 Whirlpool Spring
6
WP486754 Whirlpool Compactor Screw
7
Switch, Infinite (Single (2))
7
Switch, Infinite (Dual)
7
Switch, Infinite (Triple)
8
3183956 Whirlpool Oven Seal Switch
9
Bracket, Bottom
10
WP8286096BL Whirlpool Knob
11
Box, Burner
12
Shield, Heat
13
Wall, Inside
14
WP3196557 Whirlpool Screw
15
Seal, Heat Shield
16
Seal, Foam (36“)
17
WP486579 Whirlpool Air Conditioner Screw
18
8186533 Whirlpool Hardware
19
WP3400093 Whirlpool Screw
20
Rail, Element (3)
21
Rail, Element (1)
22
Lamp, Hot Surface Indicator
23
Box, Control
24
W10823695 Whirlpool Surface Element
24
W10823699 Whirlpool Right Front Surface Element
24
W10823711 Whirlpool Surface Element Left Front and Right Rear
24
WP8286187 Whirlpool Dishwasher Left Front Surface Element
25
WP3196163 Whirlpool Screw
26
WP112432 Whirlpool Nut Assembly
27
8285469 Whirlpool Oven Seal Switch
28
Frame, Cooktop (Stainless Only)
30
CLIP, SPRING (FOR BRIDGE)
31
Inside Wall, Insulation
32
GROMMET, FLEXIBLE
33
W10491984 Whirlpool Switch Seal
←
